80 mm Low angle shadowless light (LS-SDL-0066)

Model LS-SDL-0066

ColourRed, Green, Blue, White
Emitting area80 mm
Voltage24 V
Power10.1W/11.6W

$229.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Low-angle shadowless ring light with a special emitting structure for uniform emission; efficient low-angle illumination strengthens surface characteristics, highlights defect contrast and reduces reflections and flare.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-SDL-0066
FOV	1~150 mm
Note	UV & IR light can be customized as required.

Optics

Recommended working distance	10~100 mm

Interfaces and I/O

Cable length	500 mm
Extension cable options	PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)
Cable polarity	1: +, 2: NC, 3: -

Light

Colour temperature of white	6600 K
Emitting surface dia. (mm)	80
LED colour	R(red)/W(white)

Environment and compliance

Operating temperature	0-50 °C
Operating humidity	20-85% (non-condensing)
Lifespan	50000 h (to 50% of factory default luminance)

Electrical

Voltage	24 V
Adapted controllers	Strobe controller, analog controller, digital controller
Power (R)	2.2W
Power (G/B/W)	3.6W
Power	10.1W/11.6W
Input voltage	DC 24V (max)

Mechanical

Min. diameter	dia. 80
Max. diameter	dia. 180
Weight	210g

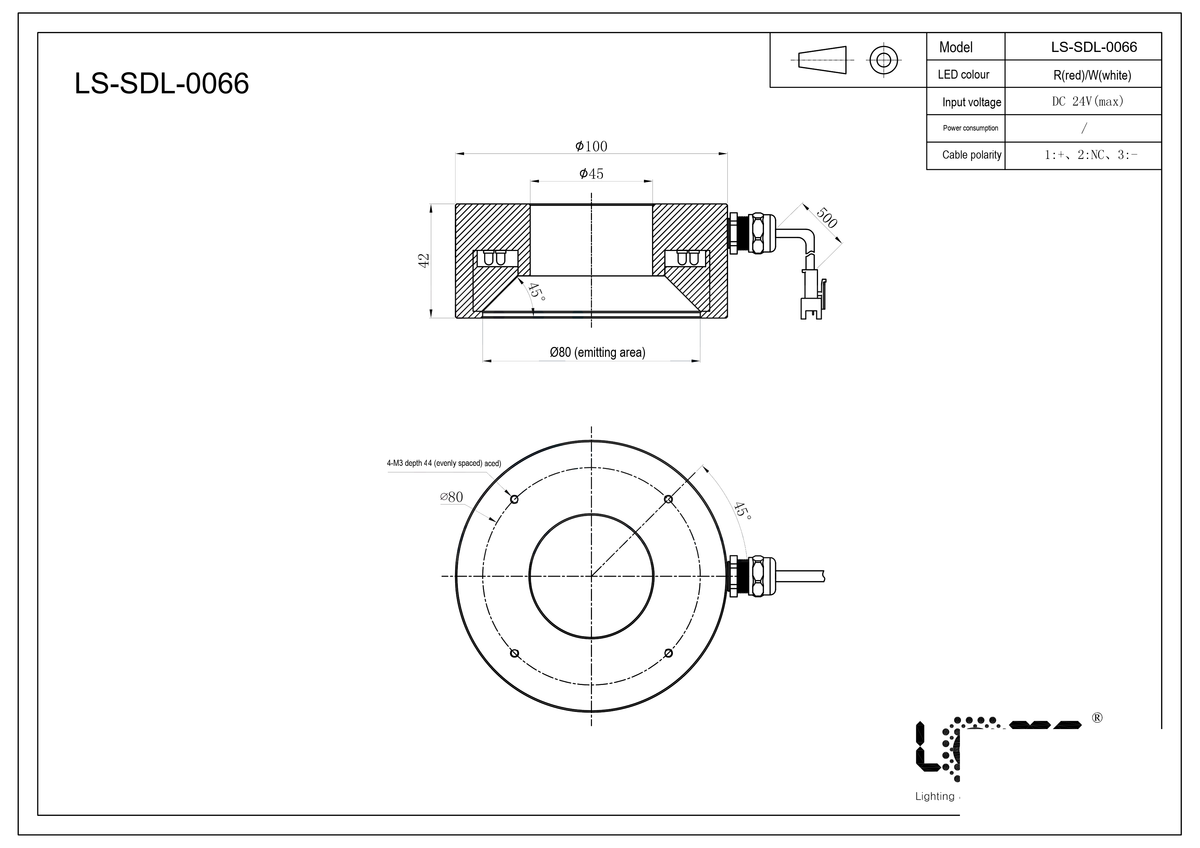

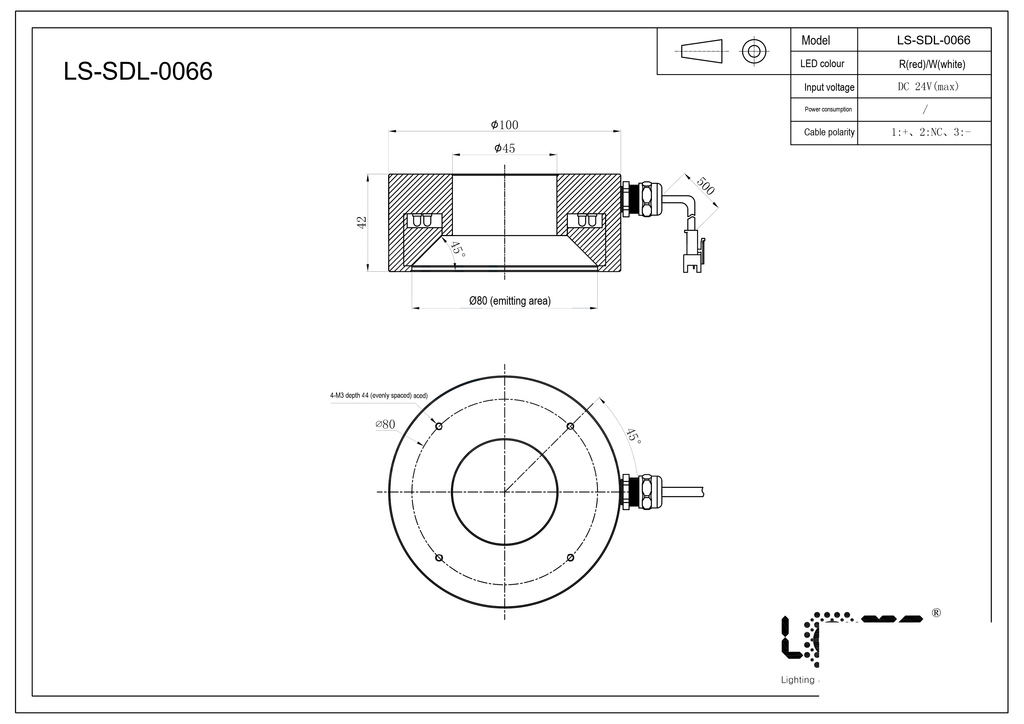

Dimension	Outer dia. 100mm,Inner dia. 71mm,Height 42mm
Mounting holes	4-M3 depth 4, evenly spaced

Downloads

Datasheet (PDF)LS-SDL-0066 · 2.3 MB

Features

Special emitting structure, uniform emission
Efficient low-angle illumination, strengthens surface characteristics
Highlights defect contrast
Reduces reflected light and flare
Wire jacket covers the cable exit, anti-pull
Customizable: Outer & inner diameter, Colour & colour temperature, Cable length, Installation method
UV & IR versions can be customized as required
Special emitting structure, emitting uniformly
Efficient low angle illumination, strengthen surface characteristic
Highlight defect contrast
Reduce the reflect light or flare

Applications

BGA/QFP position inspection
Integrated circuit material strap inspection
Connection lead pin pitch and excursion inspection
Bottle cap crack inspection
Imaging example: battery packing inspection (LS-SDL-0067-W), low-angle emission reduces metal reflection and shows the defect clearly
BGA\QFP position inspection
connection lead pin pitch & excursion inspection
bottle cap crack inspection
