Low angle shadowless light (LS-SDL-S11)
  • Low angle shadowless light (LS-SDL-S11)

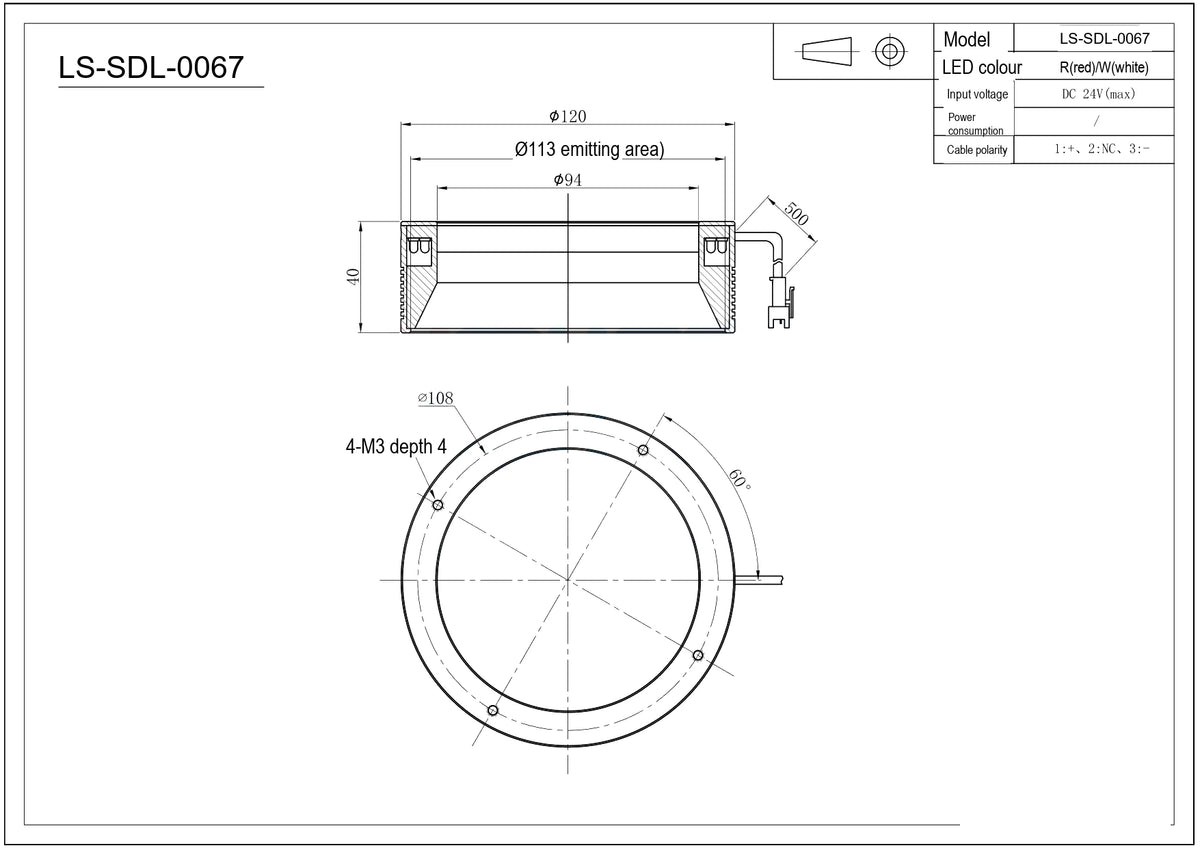

  • LS-SDL-0067 dimensions (mm)

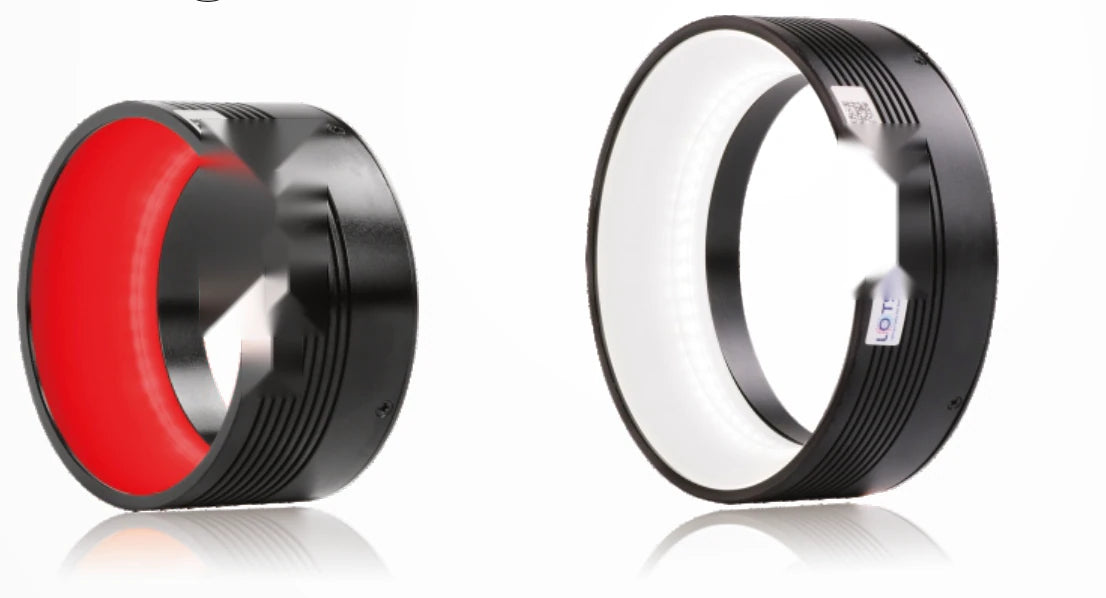

Representative photo of this series

Shadowless lights

113 mm Low angle shadowless light (LS-SDL-0067)

Model LS-SDL-0067

  • ColourRed, Green, Blue, White
  • Emitting area113 mm
  • Voltage24 V
  • Power11.6W/14.4W
$429.00

Ships in 2-3 weeks

0.45 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

113 mm Low angle shadowless light (LS-SDL-0067)LS-SDL-0067

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Low-angle shadowless ring light with a special emitting structure for uniform emission; efficient low-angle illumination strengthens surface characteristics, highlights defect contrast and reduces reflections and flare.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SDL-0067
FOV1~150 mm
NoteUV & IR light can be customized as required.

Optics

Recommended working distance10~100 mm

Interfaces and I/O

Cable length500 mm
Extension cable optionsPVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines)
Cable polarity1: +, 2: NC, 3: -

Light

Colour temperature of white6600 K
Emitting surface dia. (mm)113
LED colourR(red)/W(white)

Environment and compliance

Operating temperature0-50 °C
Operating humidity20-85% (non-condensing)
Lifespan50000 h (to 50% of factory default luminance)

Electrical

Voltage24 V
Adapted controllersStrobe controller, analog controller, digital controller
Power (R)3.4W
Power (G/B/W)5.0W
Power11.6W/14.4W
Input voltageDC 24V (max)

Mechanical

Min. diameterdia. 80
Max. diameterdia. 180
Weight253g
DimensionOuter dia. 120mm,Inner dia. 94mm,Height 40mm
