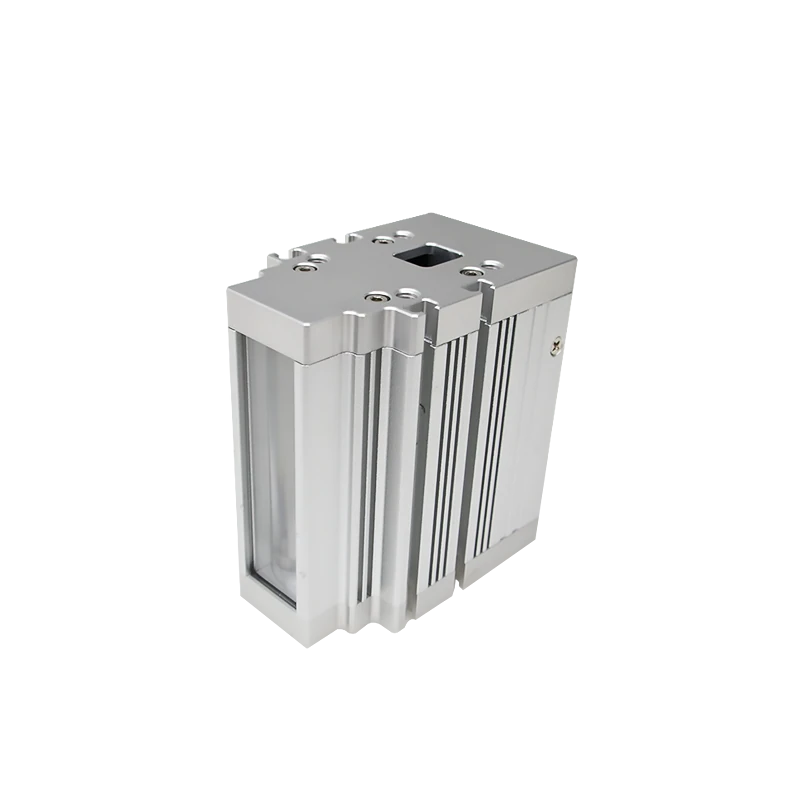

Line scan light (LS-LSC-S15)
- 24 models
- from $389.00
- Series LS-LSC-S15
The Line scan light (LS-LSC-S15) is a range of 24 line scan lights from LumaSpec Vision, from $389.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 75 x 22 mm, 150 x 22 mm, 225 x 22 mm, 300 x 22 mm, 375 x 22 mm, 450 x 22 mm, 525 x 22 mm, 600 x 22 mm, 675 x 22 mm, 750 x 22 mm, 825 x 22 mm, 900 x 22 mm, 975 x 22 mm, 1050 x 22 mm, 1125 x 22 mm, 1200 x 22 mm and 8 more
- Colour
- Red, Blue, White
- Voltage
- 24 V, 48 V
- Connector
- WS16 4-pin, WS20 4-pin, WS20 6-pin
Features
- Luminous lengths 75-2400 mm in 75 mm steps
- Cooling fans in the housing
- WS16 or WS20 aviation plug; power cord optional (selective assembly)
- Three-colour RGB light source, size, wavelength/colour temperature, mounting and input wire length customization
- Power supply: Input 24V DC, power 20-31W. Stable and flicker-free.
- Effective luminous area: 75 * 22 mm. Customized design is also supported.
- Energy-saving, Super Low Power Consuming, Highly Bright.
Typical uses
- Packaging printing inspection
- Tile pattern detection
- Metal panel defect detection
- Printed character detection
All 24 models in the Line scan light (LS-LSC-S15)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0119 | 75 x 22 mm | 24 | 95 | 75*22 | $389.00 | View |
| LS-LSC-0120 | 150 x 22 mm | 24 | 170 | 150*22 | $609.00 | View |
| LS-LSC-0121 | 225 x 22 mm | 24 | 245 | 225*22 | $809.00 | View |
| LS-LSC-0122 | 300 x 22 mm | 24 | 320 | 300x22 | $1,019.00 | View |
| LS-LSC-0123 | 375 x 22 mm | 24 | 395 | 375x22 | $1,229.00 | View |
| LS-LSC-0124 | 450 x 22 mm | 24 | 470 | 450x22 | $1,439.00 | View |
| LS-LSC-0125 | 525 x 22 mm | 24 | 545 | 525x22 | $1,639.00 | View |
| LS-LSC-0126 | 600 x 22 mm | 24 | 620 | 600x22 | $1,849.00 | View |
| LS-LSC-0127 | 675 x 22 mm | 24 | 695 | 675x22 | $2,059.00 | View |
| LS-LSC-0128 | 750 x 22 mm | 24 | 770 | 750x22 | $2,269.00 | View |
| LS-LSC-0129 | 825 x 22 mm | 24 | 845 | 825x22 | $2,469.00 | View |
| LS-LSC-0130 | 900 x 22 mm | 24 | 920 | 900x22 | $2,679.00 | View |
| LS-LSC-0131 | 975 x 22 mm | 24 | 995 | 975x22 | $2,889.00 | View |
| LS-LSC-0132 | 1050 x 22 mm | 24 | 1070 | 1050x22 | $3,089.00 | View |
| LS-LSC-0133 | 1125 x 22 mm | 24 | 1145 | 1125x22 | $3,299.00 | View |
| LS-LSC-0134 | 1200 x 22 mm | 48 | 1220 | 1200x22 | $3,509.00 | View |
| LS-LSC-0135 | 1350 x 22 mm | 48 | 1370 | 1350x22 | $3,909.00 | View |
| LS-LSC-0136 | 1500 x 22 mm | 48 | 1520 | 1500*22 | $4,319.00 | View |
| LS-LSC-0137 | 1650 x 22 mm | 48 | 1670 | 1650x22 | $4,729.00 | View |
| LS-LSC-0138 | 1800 x 22 mm | 48 | 1820 | 1800x22 | $5,129.00 | View |
| LS-LSC-0139 | 1950 x 22 mm | 48 | 1970 | 1950x22 | $5,539.00 | View |
| LS-LSC-0140 | 2100 x 22 mm | 48 | 2120 | 2100x22 | $5,939.00 | View |
| LS-LSC-0141 | 2250 x 22 mm | 48 | 2270 | 2250x22 | $6,349.00 | View |
| LS-LSC-0142 | 2400 x 22 mm | 48 | 2420 | 2400*22 | $6,759.00 | View |
