Line scan lights

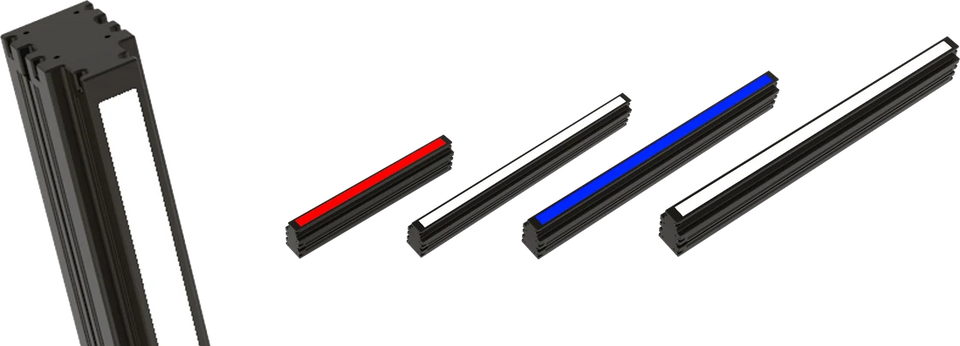

Double angle line scan light (LS-LSC-S45)
- 21 models
- from $539.00
- Series LS-LSC-S45
The Double angle line scan light (LS-LSC-S45) is a range of 21 line scan lights from LumaSpec Vision, from $539.00. It comes in 21 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 500 mm, 600 mm, 700 mm, 750 mm, 800 mm, 850 mm, 900 mm, 1000 mm, 1100 mm and 5 more
- Colour
- Red, Green, Blue, White
- Voltage
- 48 V
Features
- Adopting a special optical design, the light is obliquely projected in a crossed pattern.
- Unique heat dissipation structure to extend the life-span of the light.
- Can be customized according to the actual installation dimensions.
Typical uses
- Sheet stripe detection
- Film scratch detection
- Glass scratch detection
- Metal damage detection
All 21 models in the Double angle line scan light (LS-LSC-S45)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0405 | 100 mm | 100x20 | 130x50x91.5 | 39 | $539.00 | View |
| LS-LSC-0406 | 150 mm | 150x20 | 180x50x91.5 | 42 | $699.00 | View |
| LS-LSC-0407 | 200 mm | 200x20 | 230x50x91.5 | 50 | $859.00 | View |
| LS-LSC-0408 | 250 mm | 250x20 | 280x50x91.5 | 58 | $1,029.00 | View |
| LS-LSC-0409 | 300 mm | 300x20 | 330x50x91.5 | 60 | $1,189.00 | View |
| LS-LSC-0410 | 350 mm | 350x20 | 380x50x91.5 | 65 | $1,349.00 | View |
| LS-LSC-0411 | 400 mm | 400x20 | 430x50x91.5 | 80 | $1,509.00 | View |
| LS-LSC-0412 | 500 mm | 500x20 | 530x50x91.5 | 115 | $1,839.00 | View |
| LS-LSC-0413 | 600 mm | 600x20 | 630x50x91.5 | 150 | $2,159.00 | View |
| LS-LSC-0414 | 700 mm | 700x20 | 730x50x91.5 | 180 | $2,479.00 | View |
| LS-LSC-0415 | 750 mm | 750x20 | 780x50x91.5 | 200 | $2,639.00 | View |
| LS-LSC-0416 | 800 mm | 800x20 | 830x50x91.5 | 200 | $2,799.00 | View |
| LS-LSC-0417 | 850 mm | 850x20 | 880x50x91.5 | 240 | $2,969.00 | View |
| LS-LSC-0418 | 900 mm | 900x20 | 930x50x91.5 | 240 | $3,129.00 | View |
| LS-LSC-0419 | 1000 mm | 1000x20 | 1030x50x91.5 | 260 | $3,449.00 | View |
| LS-LSC-0420 | 1100 mm | 1100x20 | 1130x50x91.5 | 300 | $3,769.00 | View |
| LS-LSC-0421 | 1200 mm | 1200x20 | 1230x50x91.5 | 340 | $4,099.00 | View |
| LS-LSC-0422 | 1300 mm | 1300x20 | 1330x50x91.5 | 380 | $4,419.00 | View |
| LS-LSC-0423 | 1400 mm | 1400x20 | 1430x50x91.5 | 430 | $4,739.00 | View |
| LS-LSC-0424 | 1500 mm | 1500x20 | 1530x50x91.5 | 440 | $5,069.00 | View |
| LS-LSC-0425 | 1600 mm | 1600x20 | 1630x50x91.5 | 440 | $5,389.00 | View |
