Line scan lights

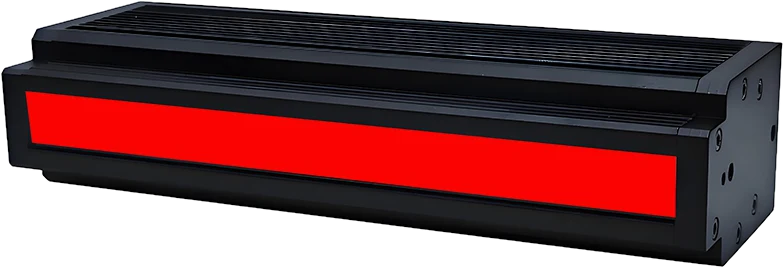

Line scan light with natural cooling (LS-LSC-S52)
- 8 models
- from $369.00
- Series LS-LSC-S52
The Line scan light with natural cooling (LS-LSC-S52) is a range of 8 line scan lights from LumaSpec Vision, from $369.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 mm, 200 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 800 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- High uniformity & parallelism, perfectly match to line scan camera.
- Light weight, good heat dissipation, high brightness.
- High cost performance, compact size, suitable for batch use.
- Fan-less natural cooling type, suitable for dust-free room.
- Can be used as direct light or backlight.
Typical uses
- PCB circuit inspection
- Screen surface (LCD, TP) scratch/stain detection
- Lithium battery surface defect/size inspection
- Paper/film printing defect inspection
All 8 models in the Line scan light with natural cooling (LS-LSC-S52)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0495 | 100 mm | 100x18 | 140x48x75 | 20 | $369.00 | View |
| LS-LSC-0496 | 200 mm | 200x18 | 240x48x75 | 34 | $599.00 | View |
| LS-LSC-0497 | 300 mm | 300x18 | 340x48x75 | 53 | $819.00 | View |
| LS-LSC-0498 | 400 mm | 400x18 | 440x48x75 | 68 | $1,039.00 | View |
| LS-LSC-0499 | 500 mm | 500x18 | 540x48x75 | 87 | $1,249.00 | View |
| LS-LSC-0500 | 600 mm | 600x18 | 640x48x75 | 101 | $1,469.00 | View |
| LS-LSC-0501 | 700 mm | 700x18 | 740x48x75 | 116 | $1,689.00 | View |
| LS-LSC-0502 | 800 mm | 800x18 | 840x48x75 | 135 | $1,899.00 | View |
