Colour shown for illustration; the actual product may differ
Line scan lights
400 mm Passive-Cooled Line Scan Light (LS-LSC-0498)
Model LS-LSC-0498
- ColourRed, Green, Blue, White
- Emitting area400x18 mm
- Size440x48x75 mm
- Voltage24 V
$1,039.00
Ships in 2-3 weeks
1.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
400 mm Passive-Cooled Line Scan Light. Fan-less, naturally cooled line scan light with high uniformity and parallelism, matched to line scan cameras. Light weight, good heat dissipation and high brightness; can be used as direct light or backlight.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0498 |
|---|---|
| Cooling | Natural (fan-less) |
| Outer cross-section WxH | 48x75 mm |
Light
| Emitting area (mm) | 400x18 |
|---|---|
| Colours | Red, Green, Blue, White |
| Emitting width | 18 mm |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 68 |
Mechanical

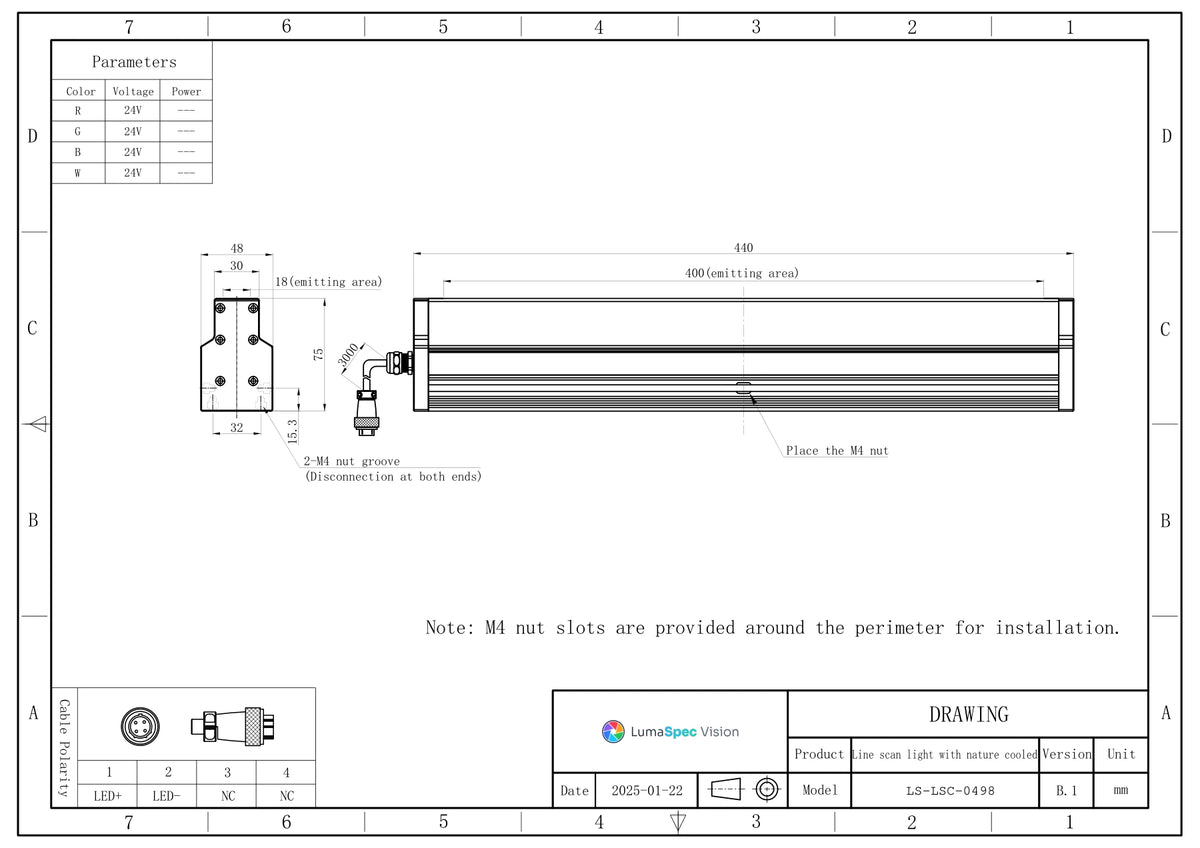

| Outer size L x W x H (mm) | 440x48x75 |
|---|---|
| Shipping weight (estimated) | 1.35 kg |
Other models in the Line scan light with natural cooling (LS-LSC-S52) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0495 | 100 mm | $369.00 | Ships in 2-3 weeks | View |
| LS-LSC-0496 | 200 mm | $599.00 | Ships in 2-3 weeks | View |
| LS-LSC-0497 | 300 mm | $819.00 | Ships in 2-3 weeks | View |
| LS-LSC-0499 | 500 mm | $1,249.00 | Ships in 2-3 weeks | View |
| LS-LSC-0500 | 600 mm | $1,469.00 | Ships in 2-3 weeks | View |
| LS-LSC-0501 | 700 mm | $1,689.00 | Ships in 2-3 weeks | View |
| LS-LSC-0502 | 800 mm | $1,899.00 | Ships in 2-3 weeks | View |
