Line scan lights

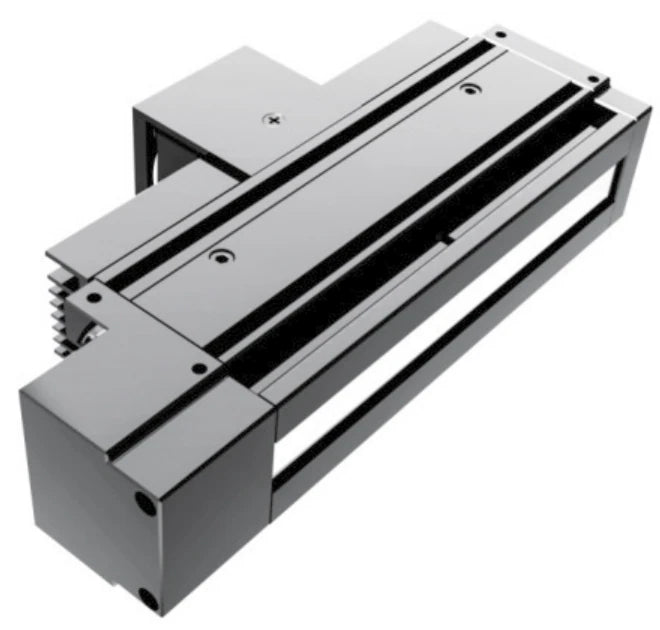

Oblique line light (LS-LSC-S40)
- 10 models
- from $599.00
- Series LS-LSC-S40
The Oblique line light (LS-LSC-S40) is a range of 10 line scan lights from LumaSpec Vision, from $599.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 150 x 17 mm, 300 x 17 mm, 450 x 17 mm, 600 x 17 mm, 750 x 17 mm
- Colour
- Red, Blue, White
- Connector
- 16M-6J
Features
- Special optical design: the light exits obliquely in a crossing pattern
- Unique heat-dissipation structure increases the service life of the light
- Different lengths can be customised to the actual installation size
Typical uses
- Scratch inspection on metal housing surfaces
- Glass surface scratch inspection
- Scratch inspection of 2.5D phone screens
- LCD screen surface scratch inspection
- Glass defect inspection (imaging example, LS-LSC-0352-W)
All 10 models in the Oblique line light (LS-LSC-S40)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0356 | 150 x 17 mm | 150 x 17 | 1500 | 1 | $599.00 | View |
| LS-LSC-0351 | 150 x 17 mm | 150 x 17 | 1500 | 1 | $599.00 | View |
| LS-LSC-0357 | 300 x 17 mm | 300 x 17 | 1500 | 1 | $999.00 | View |
| LS-LSC-0352 | 300 x 17 mm | 300 x 17 | 1500 | 1 | $1,009.00 | View |
| LS-LSC-0358 | 450 x 17 mm | 450 x 17 | 1500 | 1 | $1,409.00 | View |
| LS-LSC-0353 | 450 x 17 mm | 450 x 17 | 1500 | 1 | $1,409.00 | View |
| LS-LSC-0359 | 600 x 17 mm | 600 x 17 | 1500 | 1 | $1,809.00 | View |
| LS-LSC-0354 | 600 x 17 mm | 600 x 17 | 2 x 1500 | 2 | $1,819.00 | View |
| LS-LSC-0360 | 750 x 17 mm | 750 x 17 | 1500 | 1 | $2,209.00 | View |
| LS-LSC-0355 | 750 x 17 mm | 750 x 17 | 2 x 1500 | 2 | $2,219.00 | View |
