Line scan lights

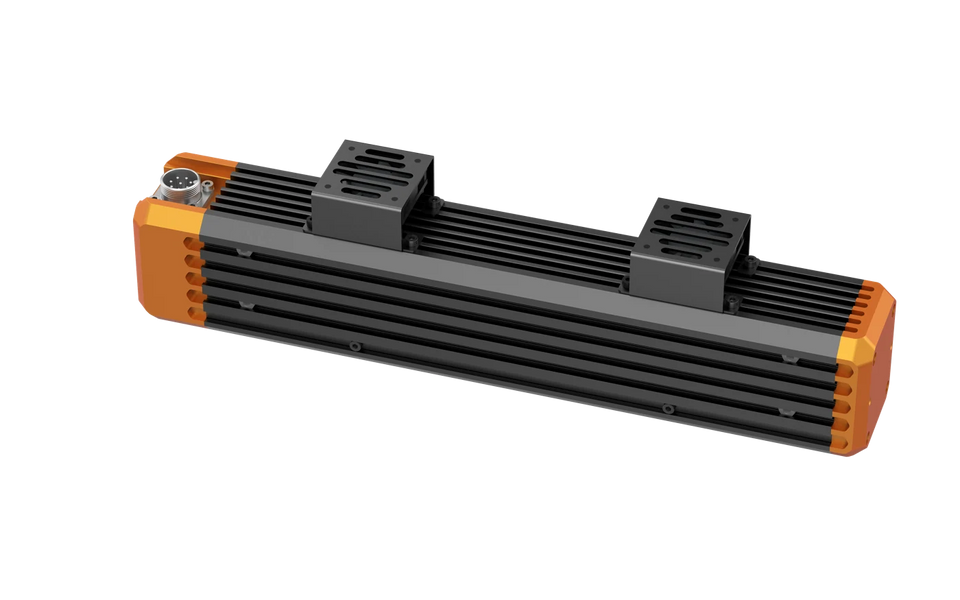

High-brightness line lights (LS-LSC-S58)
- 15 models
- from $479.00
- Series LS-LSC-S58
The High-brightness line lights (LS-LSC-S58) is a range of 15 line scan lights from LumaSpec Vision, from $479.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 100 mm, White, 200 mm, White, 300 mm, White, 400 mm, White, 500 mm, White, 600 mm, White, 700 mm, White, 800 mm, White, 900 mm, White, 1000 mm, White, 1100 mm, White, 1200 mm, White, 1300 mm, White, 1400 mm, White, 1500 mm, White
- Voltage
- 48 V
- Colour
- White
Features
- Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source.
- Improves the service life of the light source with a cooling fan on the enclosure.
- Supports flexible installation with multi-side nut slots.
All 15 models in the High-brightness line lights (LS-LSC-S58)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0618 | 100 mm, White | 100 mm × 17 mm | 42 W | 150 mm × 58 mm × 90.5 mm | $479.00 | View |
| LS-LSC-0619 | 200 mm, White | 200 mm × 17 mm | 84 W | 250 mm × 58 mm × 90.5 mm | $759.00 | View |
| LS-LSC-0620 | 300 mm, White | 300 mm × 17 mm | 126 W | 350 mm × 58 mm × 90.5 mm | $1,039.00 | View |
| LS-LSC-0621 | 400 mm, White | 400 mm × 17 mm | 168 W | 450 mm × 58 mm × 90.5 mm | $1,309.00 | View |
| LS-LSC-0622 | 500 mm, White | 500 mm × 17 mm | 210 W | 550 mm × 58 mm × 90.5 mm | $1,589.00 | View |
| LS-LSC-0623 | 600 mm, White | 600 mm × 17 mm | 252 W | 650 mm × 58 mm × 90.5 mm | $1,869.00 | View |
| LS-LSC-0624 | 700 mm, White | 700 mm × 17 mm | 294 W | 750 mm × 58 mm × 90.5 mm | $2,139.00 | View |
| LS-LSC-0625 | 800 mm, White | 800 mm × 17 mm | 336 W | 850 mm × 58 mm × 90.5 mm | $2,419.00 | View |
| LS-LSC-0626 | 900 mm, White | 900 mm × 17 mm | 378 W | 970 mm × 58 mm × 90.5 mm | $2,699.00quote | View |
| LS-LSC-0627 | 1000 mm, White | 1000 mm × 17 mm | 420 W | 1070 mm × 58 mm × 90.5 mm | $2,979.00quote | View |
| LS-LSC-0628 | 1100 mm, White | 1100 mm × 17 mm | 462 W | 1170 mm × 58 mm × 90.5 mm | $3,249.00quote | View |
| LS-LSC-0629 | 1200 mm, White | 1200 mm × 17 mm | 504 W | 1270 mm × 58 mm × 90.5 mm | $3,529.00quote | View |
| LS-LSC-0630 | 1300 mm, White | 1300 mm × 17 mm | 546 W | 1370 mm × 58 mm × 90.5 mm | $3,809.00quote | View |
| LS-LSC-0631 | 1400 mm, White | 1400 mm × 17 mm | 588 W | 1470 mm × 58 mm × 90.5 mm | $4,089.00quote | View |
| LS-LSC-0632 | 1500 mm, White | 1500 mm × 17 mm | 630 W | 1570 mm × 58 mm × 90.5 mm | $4,359.00quote | View |
