Line scan lights

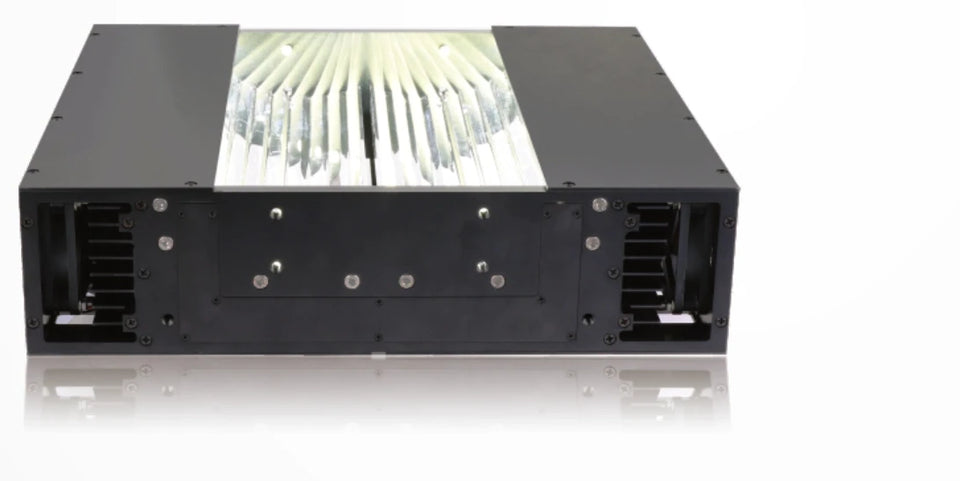

Multi-angle line scan light, fan cooled (LS-LSC-S09)
- 7 models
- from $619.00
- Series LS-LSC-S09
The Multi-angle line scan light, fan cooled (LS-LSC-S09) is a range of 7 line scan lights from LumaSpec Vision, from $619.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 132 x 144 mm, 200 mm, 250 mm, 300 mm, 500 mm, 880 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Light reflected from different angles; luminance can reach 1,100,000 lux (printed '1100,000LUS')
- Concentrated light, high uniformity
- Compact structure
- Multi-area line scan light: multiple-direction light paths give obvious contrast between scratches and background (vs tunnel line scan light)
- Customizable: multi-area control, length, colour & colour temperature, cable length, installation method
Typical uses
- Scratches, bubbles, stains and fingerprints on mobile screen surfaces
- Crack / scratch / glue stamp / greasy dirt / bad point / dead pixel inspection
All 7 models in the Multi-angle line scan light, fan cooled (LS-LSC-S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0057 | 132 x 144 mm | 108 | 24 | 132 | $619.00 | View |
| LS-LSC-0058 | 200 mm | 180 | 24 | 200 | $779.00 | View |
| LS-LSC-0059 | 250 mm | 216 | 24 | 250 | $929.00 | View |
| LS-LSC-0061 | 250 mm | 324 | 24 | 250 | $939.00 | View |
| LS-LSC-0062 | 300 mm | 360 | 24 | 300 | $1,089.00 | View |
| LS-LSC-0063 | 500 mm | 576 | 48 | 500 | $1,689.00 | View |
| LS-LSC-0060 | 880 mm | 648 | 48 | 880 | $2,849.00 | View |
