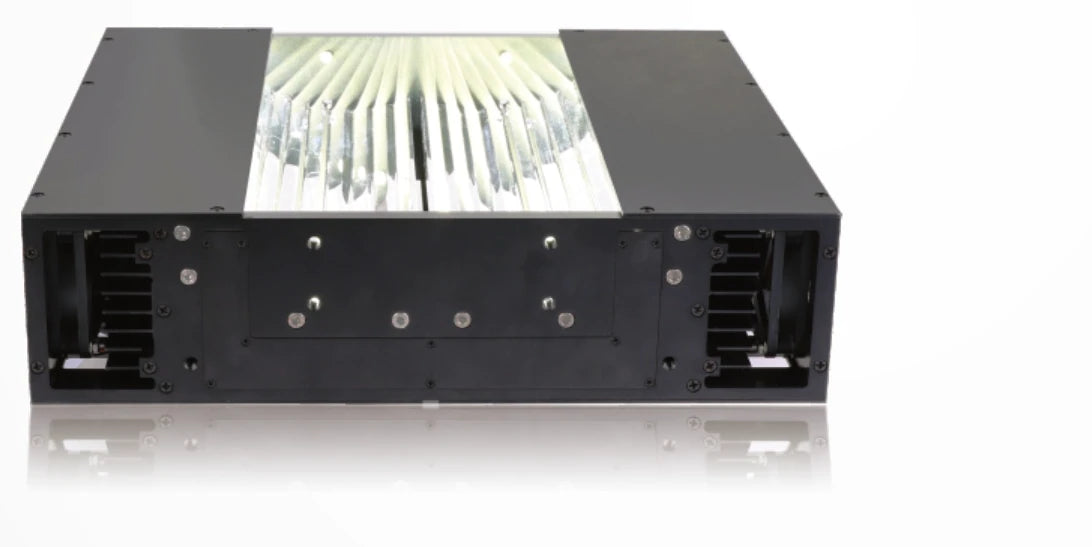

Representative photo of this series. Colour shown for illustration; the actual product may differ
Line scan lights
500 mm Multi-angle line scan light, fan cooled (LS-LSC-0063)
Model LS-LSC-0063
- ColourRed, Green, Blue, White
- Voltage24 V / 48 V DC (by model)
- Power576 W
- CoolingFan cooling
$1,689.00
Ships in 2-3 weeks
10.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Multi-angle line scan light that illuminates from different angles, with luminance up to 1,100,000 lux, concentrated light, high uniformity and a compact structure.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0063 |
|---|---|
| Cooling | Fan cooling |
| Inspection precision examples (mm) | crack 0.02; scratch 0.02-0.03; glue stamp 0.08; greasy dirt 0.1; scratch & bad point 0.04; bad point 0.04; dead pixel 0.03 |
| UV / IR | UV & IR light can be customized as required |
| FOV | 1-1200 mm |
| Type | High luminance |
Optics
| Recommended working distance | 10-30 mm |
|---|
Interfaces and I/O
| Cable | 1000 mm |
|---|---|
| Extension cable options | PVC extension cable (flexible, bend and heat resistant, for use inside equipment); high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
Light
| Peak wavelength / colour temperature | Red 620-630 nm, Green 525-530 nm, Blue 465-470 nm, White 6600 K (colour temperature) |
|---|---|
| Emitting length range (mm) | 132-880 |
| Emitting length (mm) | 500 |
Environment and compliance
| Operating environment | Temperature 0-50 °C, humidity 20-85% (non-condensing) |
|---|---|
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | High power constant voltage controller LS-CTL-S03; high power constant current controller LS-CTL-S03 (as printed) |
|---|---|
| Voltage | 24 V / 48 V DC (by model) |
| Voltage (V) | 48 |
| Power (W) | 576 |

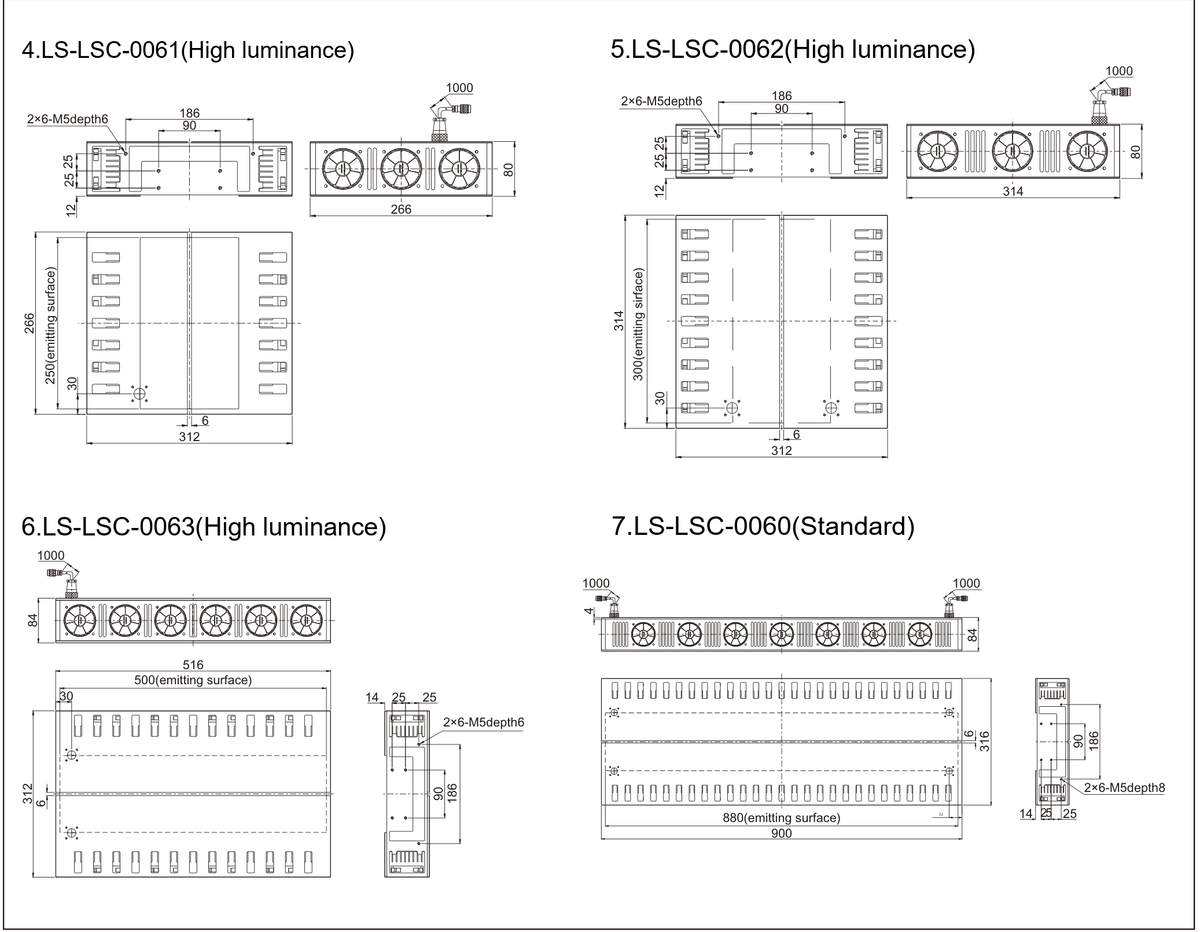

Mechanical
| Height (mm) | 60 (standard 200/250, 132), 80 (H250/H300), 84 (H500, 880) |
|---|---|
| Mounting | 2x6-M5 depth 6 (880: 2x6-M5 depth 8) |
| Weight (g) | 9000 |
