Line scan lights

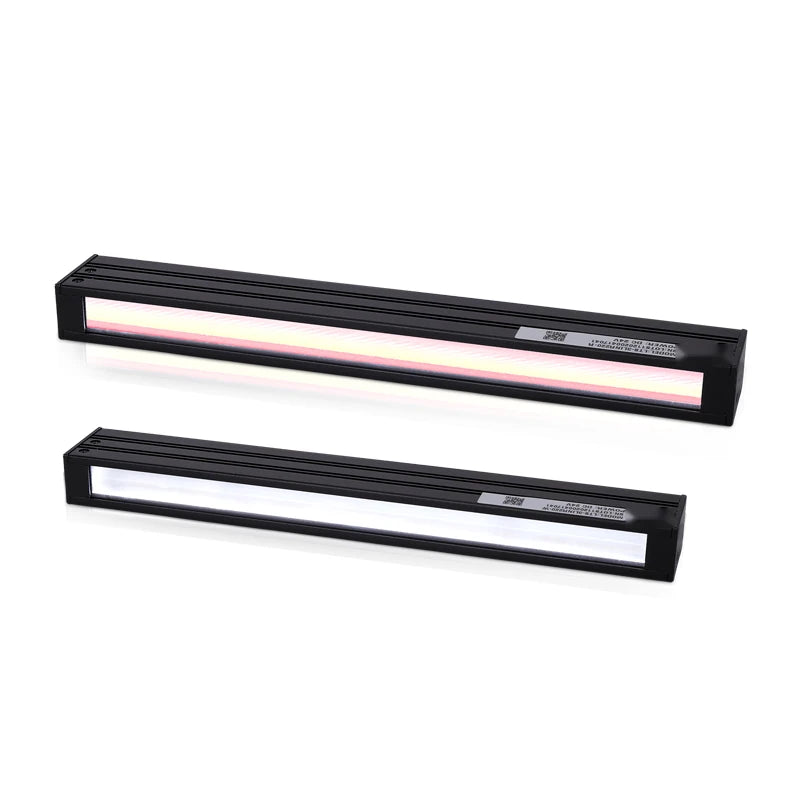

Mini line scan light (LS-LSC-S22)
- 7 models
- from $369.00
- Series LS-LSC-S22
The Mini line scan light (LS-LSC-S22) is a range of 7 line scan lights from LumaSpec Vision, from $369.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 50-100 mm, 100-200 mm, 200-400 mm, 400 mm +
- Voltage
- 24 V
Features
- Use high power surface-mount lamp, high luminance
- Compact volume, width only 30mm, natural cooling
- Standard model add the optical film to improve the uniformity
Typical uses
- Displayer surface dusty inspection
- Paste label surface defect inspection
- Packaging carton location inspection
All 7 models in the Mini line scan light (LS-LSC-S22)
| Link | ||||
|---|---|---|---|---|
| LS-LSC-0204 | 3.6W/4.4W | L70xW20xH30(mm) | $369.00 | View |
| LS-LSC-0205 | 3.6W/4.4W | L80xW20xH30(mm) | $399.00 | View |
| LS-LSC-0206 | 7.2W/6.5W | L120xW20xH30(mm) | $519.00 | View |
| LS-LSC-0207 | 14.4W/13.0W | L220xW20xH30(mm) | $779.00 | View |
| LS-LSC-0208 | 21.6W/19.5W | L320xW20xH30(mm) | $1,049.00 | View |
| LS-LSC-0209 | 28.8W/26.0W | L420xW20xH30(mm) | $1,309.00 | View |
| LS-LSC-0210 | 36.0W/32.4W | L520xW20xH30(mm) | $1,579.00 | View |
