Representative photo of this series
Line scan lights
Mini line scan light, 70 x 20 x 30 mm (LS-LSC-0204)
Model LS-LSC-0204
- ColourRed, Green, Blue, White
- Emitting area50 x 13 mm
- SizeL70xW20xH30(mm)
- Voltage24V
- Power3.6W/4.4W
$369.00
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High brightness up to 2 million illumination, can add optical film to improve uniformity, adapted to circuit board surface and battery coating inspection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0204 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

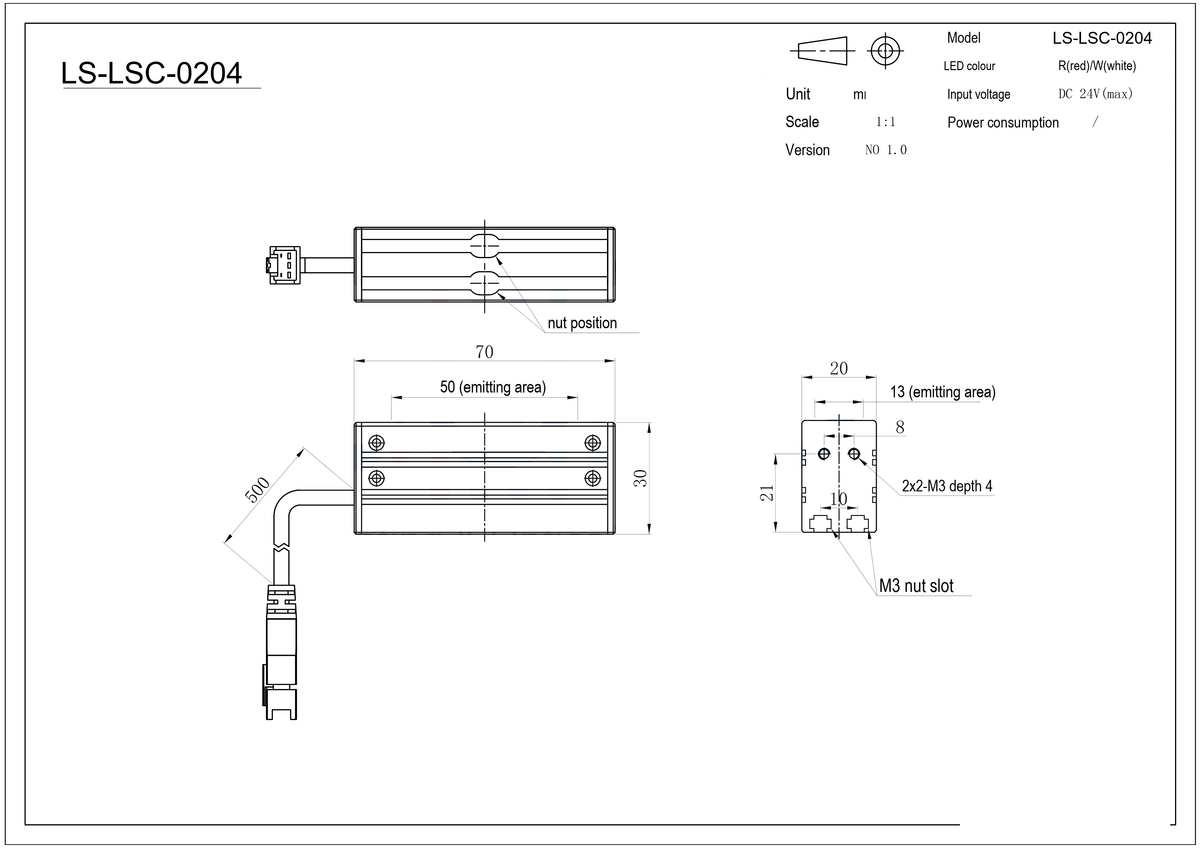

| Cable (mm) | 500 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 50 x 13 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 3.6W/4.4W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L70xW20xH30(mm) |
|---|---|
| Mounting holes | 2×2-M3 depth 4 |
| Shipping weight | 0.25 kg |
Other models in the Mini line scan light (LS-LSC-S22) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0205 | Red, Green, Blue, White · 60 x 13 mm | $399.00 | Ships in 2-3 weeks | View |
| LS-LSC-0206 | Red, Green, Blue, White · L120xW20xH30(mm) | $519.00 | Ships in 2-3 weeks | View |
| LS-LSC-0207 | Red, Green, Blue, White · L220xW20xH30(mm) | $779.00 | Ships in 2-3 weeks | View |
| LS-LSC-0208 | Red, Green, Blue, White · L320xW20xH30(mm) | $1,049.00 | Ships in 2-3 weeks | View |
| LS-LSC-0209 | Red, Green, Blue, White · L420xW20xH30(mm) | $1,309.00 | Ships in 2-3 weeks | View |
| LS-LSC-0210 | Red, Green, Blue, White · L520xW20xH30(mm) | $1,579.00 | Ships in 2-3 weeks | View |
