Line scan lights

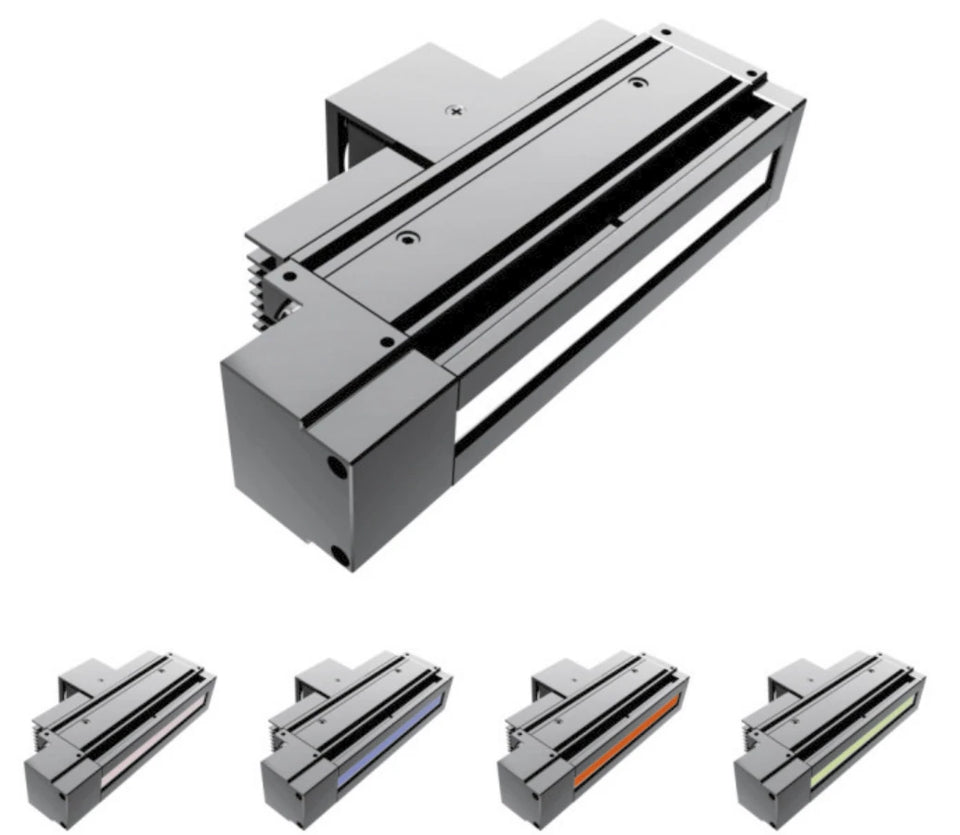

Time-division line-scan light source (LS-LSC-S55)
- 4 models
- from $1,819.00
- Series LS-LSC-S55
The Time-division line-scan light source (LS-LSC-S55) is a range of 4 line scan lights from LumaSpec Vision, from $1,819.00. It comes in 1 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 600 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 48 V
- Connector
- 24M-5J
Features
- Paired with the time-division line-scan controller for instantly higher brightness
- Multiple light groups switch instantly: one capture, several effects; solves compatibility issues, lowers vision hardware cost, saves mechanism space
- Can be fitted with a coaxial module to upgrade to a coaxial line light
Typical uses
- Face mask surface defect inspection
- Phone screen surface defect inspection
- Printing industry surface defect inspection
- Metal cylinder surface defect inspection
All 4 models in the Time-division line-scan light source (LS-LSC-S55)
| Link | |||
|---|---|---|---|
| LS-LSC-0579 | 448 | $1,819.00 | View |
| LS-LSC-0578 | 336 | $1,819.00 | View |
| LS-LSC-0576 | 448 | $1,819.00 | View |
| LS-LSC-0577 | 448 | $1,819.00 | View |
