Line scan lights

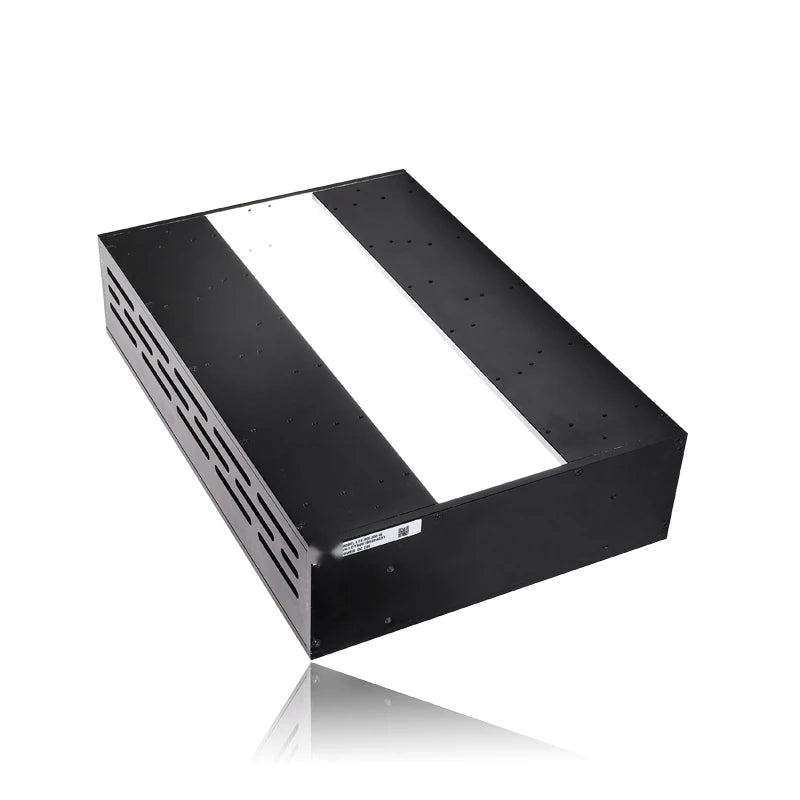

Tunnel line scan light (LS-LSC-S12)
- 7 models
- from $519.00
- Series LS-LSC-S12
The Tunnel line scan light (LS-LSC-S12) is a range of 7 line scan lights from LumaSpec Vision, from $519.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 200-400 mm, 400 mm +
- Voltage
- 24 V, 48 V
Features
- Good parallelism, high luminance in light weight
- Brightness is 2 times higher than LS-LSC-S67 series, weight is reduced by 50%
- Used for line scan system of cigarette package surface inspection
Typical uses
- PCB printing inspection
- Vacuum packing inspection
- Metal surface inspection
- Glass surface gloss inspection
All 7 models in the Tunnel line scan light (LS-LSC-S12)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0095 | 100 x 85 | 101W | DC 24V (max) | 24V | $519.00 | View |
| LS-LSC-0096 | 200 x 85 | 168W | DC 24V (max) | 24V | $799.00 | View |
| LS-LSC-0097 | 300 x 85 | 236W | DC 24V (max) | 24V | $1,079.00 | View |
| LS-LSC-0098 | 400 x 85 | 336W | DC 24V (max) | 24V | $1,359.00 | View |
| LS-LSC-0099 | 500 x 85 | 404W | DC 48V (max) | 48V | $1,629.00 | View |
| LS-LSC-0100 | 800 x 85 | 605W | DC 48V (max) | 48V | $2,469.00 | View |
| LS-LSC-0101 | 1000 x 85 | 807W | DC 48V (max) | 48V | $3,029.00 | View |
