Line scan lights

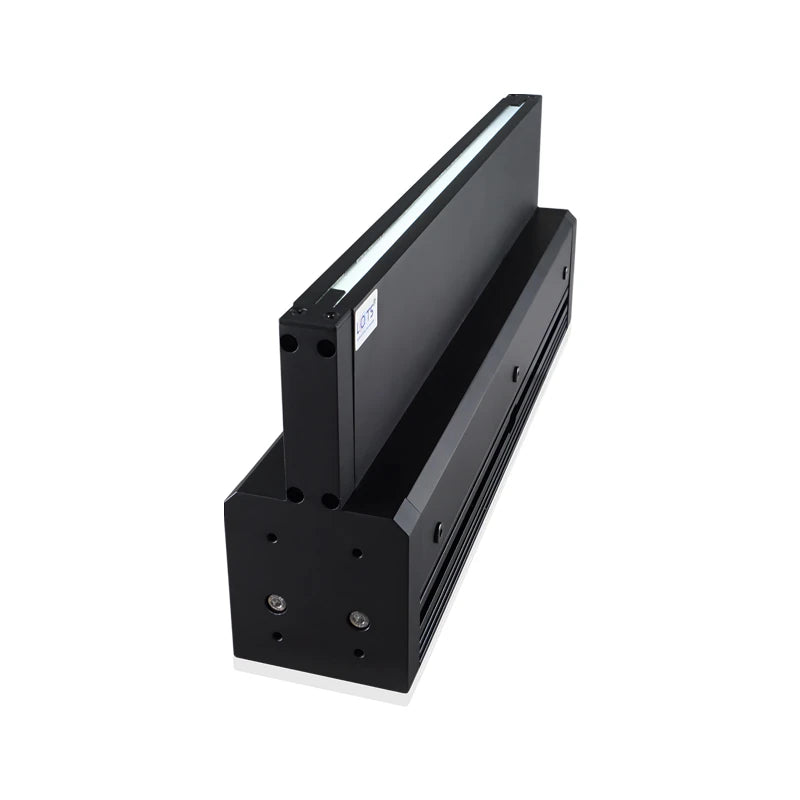

Narrow line scan light (LS-LSC-S27)
- 10 models
- from $569.00
- Series LS-LSC-S27
The Narrow line scan light (LS-LSC-S27) is a range of 10 line scan lights from LumaSpec Vision, from $569.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm, 200-400 mm, 400 mm +
- Voltage
- 24 V
Features
- Emits uniform and slender light strips
- The head of the light-emitting area is narrow, suitable for ultra-narrow spaces
- Large bottom heat dissipation area ensures high brightness and excellent heat dissipation
- Length can be customized according to customer requirements
Typical uses
- Display Dust Detection
- Narrow Space Use
- Contour Edge Detection
- Cleanroom Inspection
All 10 models in the Narrow line scan light (LS-LSC-S27)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0251 | 100 x 4 | 14.4W | L140xW48xH105.5(mm) | 4 x M4 nut slots | $569.00 | View |
| LS-LSC-0252 | 200 x 4 | 33.6W | L240xW48xH105.5(mm) | 2×4-M3 depth 5; 4 x M4 nut slots | $839.00 | View |
| LS-LSC-0253 | 300 x 4 | 52.8W | L340xW48xH105.5(mm) | 4 x M4 nut slots | $1,109.00 | View |
| LS-LSC-0254 | 400 x 4 | 67.2W | L440xW48xH105.5(mm) | 4 x M4 nut slots | $1,379.00 | View |
| LS-LSC-0255 | 500 x 4 | 76.8W | L540xW48xH105.5(mm) | 4 x M4 nut slots | $1,659.00 | View |
| LS-LSC-0256 | 600 x 4 | 96.0W | L640xW48xH105.5(mm) | 4 x M4 nut slots | $1,929.00 | View |
| LS-LSC-0257 | 700 x 4 | 116W | L740xW48xH105.5(mm) | 4 x M4 nut slots | $2,199.00 | View |
| LS-LSC-0258 | 800 x 4 | 135W | L840xW48xH105.5(mm) | 4 x M4 nut slots | $2,469.00 | View |
| LS-LSC-0259 | 900 x 4 | 144W | L940xW48xH105.5(mm) | 4 x M4 nut slots | $2,739.00 | View |
| LS-LSC-0260 | 1000 x 4 | 168W | L1040xW48xH105.5(mm) | 4 x M4 nut slots | $3,009.00 | View |
