Narrow line scan light, 1040 x 48 x 105.5 mm (LS-LSC-0260)
Model LS-LSC-0260
- ColourRed, Blue, Green, White
- Emitting area1000 x 4 mm
- SizeL1040xW48xH105.5(mm)
- Voltage24V
- Power168W
$3,009.00
Ships in 2-3 weeks
3.5 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Emits uniform and slender light strips. The head of the light-emitting area is narrow, suitable for ultra-narrow spaces. Large bottom heat dissipation area ensures high brightness and excellent heat dissipation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0260 |
|---|---|
| Cooling | Natural cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

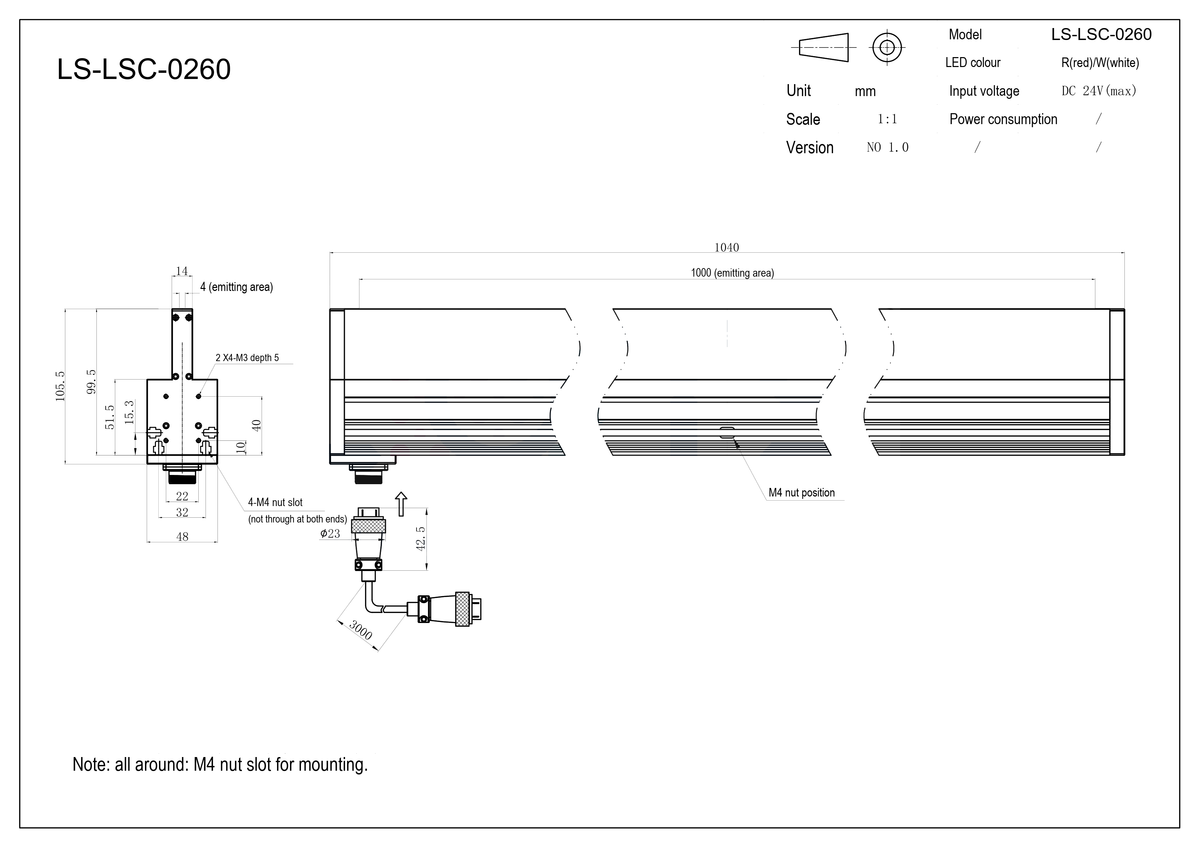

| Cable (mm) | 3000 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1000 x 4 |
Electrical
| Voltage | 24V |
|---|---|
| Power | 168W |
| Input voltage | DC 24V (max) |
Mechanical
| Dimension | L1040xW48xH105.5(mm) |
|---|---|
| Mounting holes | 4 x M4 nut slots |
| Mounting | M4 nut slots on all sides for mounting |
| Shipping weight | 3.50 kg |
Other models in the Narrow line scan light (LS-LSC-S27) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0251 | Red, Blue, Green, White · 100 x 4 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-LSC-0252 | Red, Blue, Green, White · 200 x 4 mm | $839.00 | Ships in 2-3 weeks | View |
| LS-LSC-0253 | Red, Blue, Green, White · 300 x 4 mm | $1,109.00 | Ships in 2-3 weeks | View |
| LS-LSC-0254 | Red, Blue, Green, White · 400 x 4 mm | $1,379.00 | Ships in 2-3 weeks | View |
| LS-LSC-0255 | Red, Blue, Green, White · 500 x 4 mm | $1,659.00 | Ships in 2-3 weeks | View |
| LS-LSC-0256 | Red, Blue, Green, White · 600 x 4 mm | $1,929.00 | Ships in 2-3 weeks | View |
| LS-LSC-0257 | Red, Blue, Green, White · 700 x 4 mm | $2,199.00 | Ships in 2-3 weeks | View |
| LS-LSC-0258 | Red, Blue, Green, White · 800 x 4 mm | $2,469.00 | Ships in 2-3 weeks | View |
| LS-LSC-0259 | Red, Blue, Green, White · 900 x 4 mm | $2,739.00 | Ships in 2-3 weeks | View |
