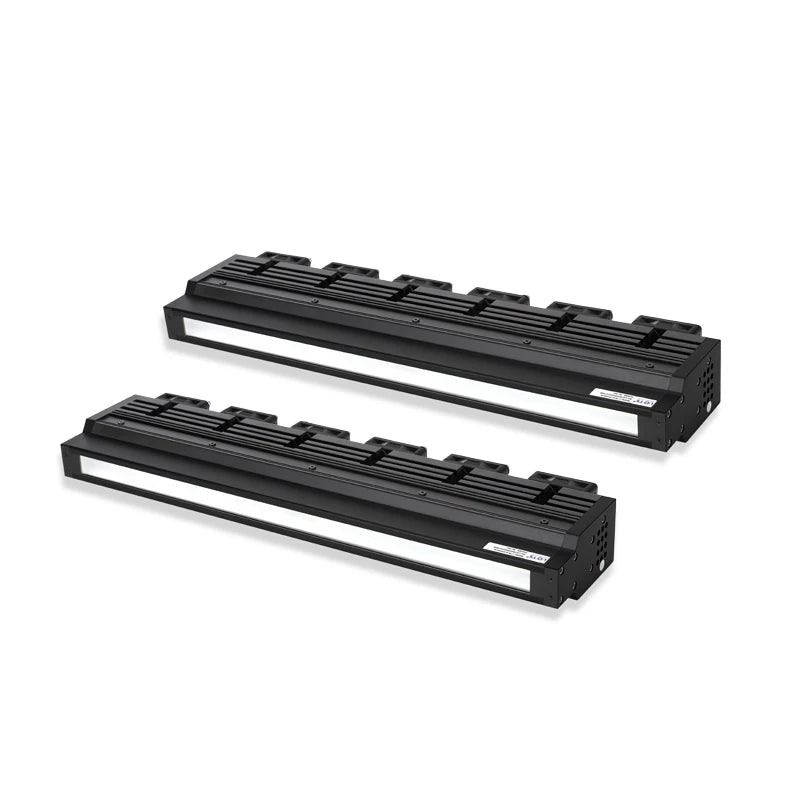

Ultra brightness line scan light (LS-LSC-S28)

Line scan lights

Ultra brightness line scan light (LS-LSC-S28)

  • 10 models
  • from $569.00
  • Series LS-LSC-S28

The Ultra brightness line scan light (LS-LSC-S28) is a range of 10 line scan lights from LumaSpec Vision, from $569.00. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 10 models Series datasheet (PDF)

The series at a glance

Colour
Red, Green, Blue, White
Size
100-200 mm, 200-400 mm, 400 mm +
Voltage
24 V, 48 V

Features

  • Unique optical design, luminance reach to 3.2 millions
  • High uniformity and good parallelism
  • Matched with high speed line scan camera

Typical uses

  • Steel plate inspection
  • Glass surface inspection
  • Metal surface inspection
  • Contour edges inspection

All 10 models in the Ultra brightness line scan light (LS-LSC-S28)

Link
LS-LSC-0261100 x 1884WDC 24V (max)24V$569.00View
LS-LSC-0262200 x 18168WDC 24V (max)24V$839.00View
LS-LSC-0263300 x 18252WDC 24V (max)24V$1,119.00View
LS-LSC-0264400 x 18336WDC 24V (max)24V$1,389.00View
LS-LSC-0265500 x 18420WDC 48V (max)48V$1,659.00View
LS-LSC-0266600 x 18504WDC 48V (max)48V$1,929.00View
LS-LSC-0267700 x 18588WDC 48V (max)48V$2,199.00View
LS-LSC-0268800 x 18672WDC 48V (max)48V$2,469.00View
LS-LSC-0269900 x 18756WDC 48V (max)48V$2,739.00View
LS-LSC-02701000 x 18840WDC 48V (max)48V$3,009.00View
