Ultra brightness line scan light (LS-LSC-S28)
  • Ultra brightness line scan light (LS-LSC-S28)

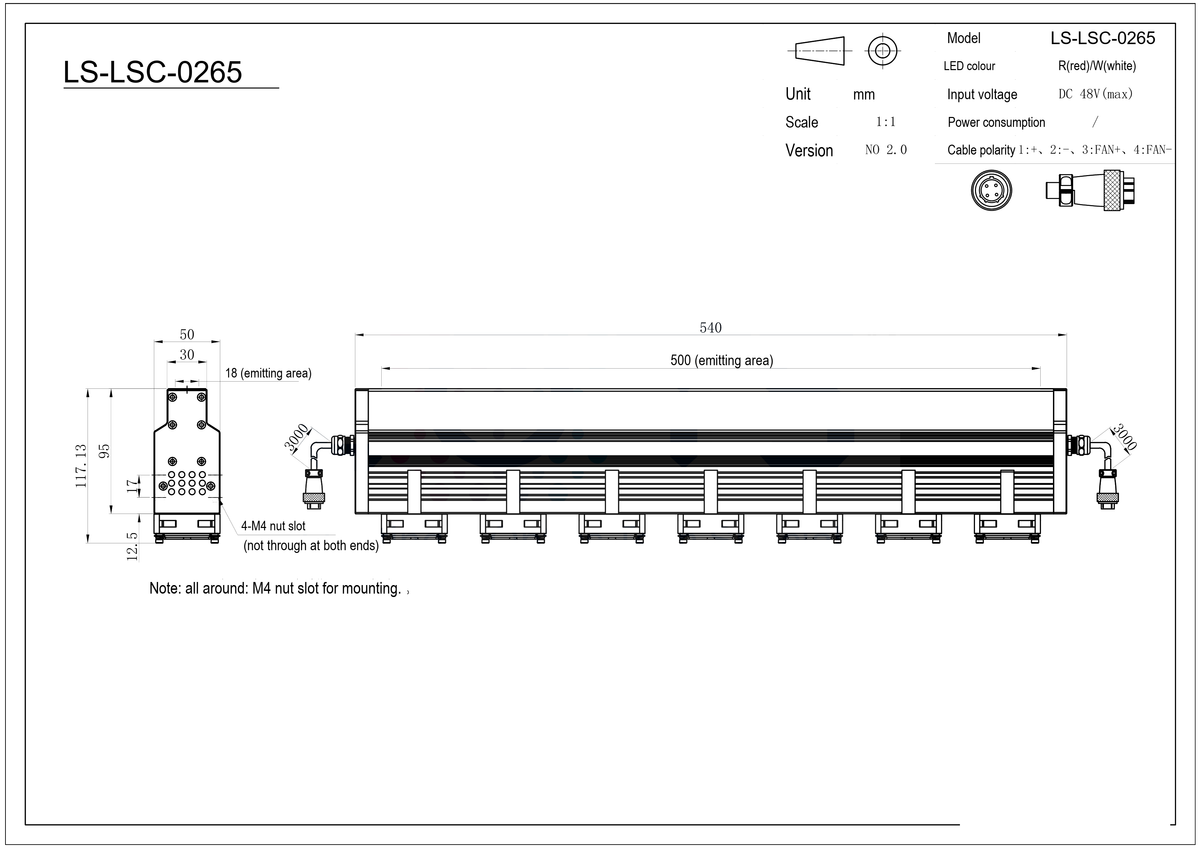

  • LS-LSC-0265 dimensions (mm)

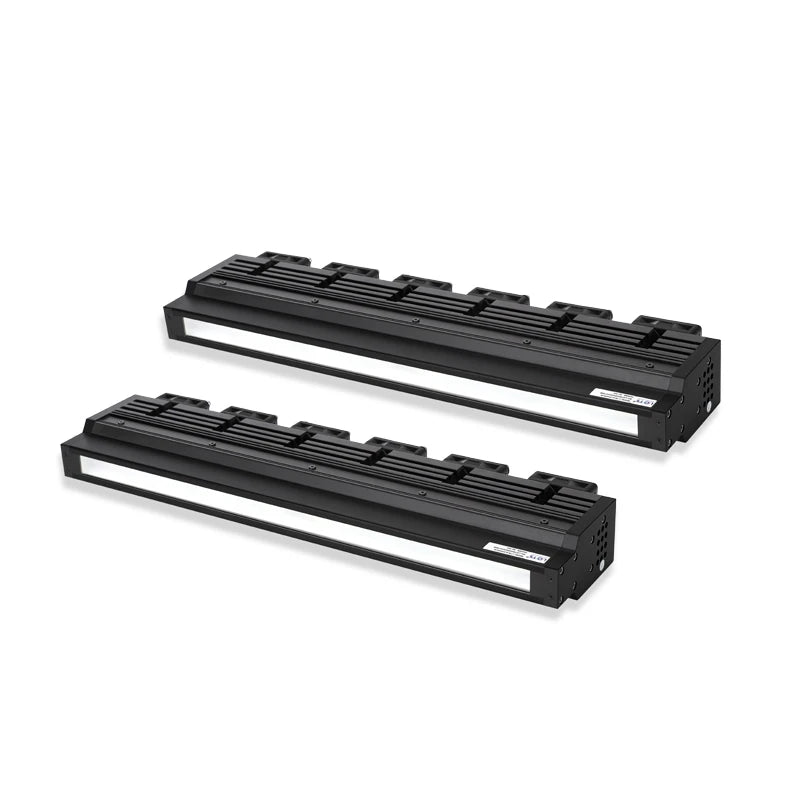

Representative photo of this series

Line scan lights

Ultra brightness line scan light, 540 x 50 x 117.13 mm (LS-LSC-0265)

Model LS-LSC-0265

  • ColourRed, Blue, Green, White
  • Emitting area500 x 18 mm
  • SizeL540xW50xH117.13(mm)
  • Voltage48V
  • Power420W
$1,659.00

Ships in 2-3 weeks

2.1 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Ultra brightness line scan light, 540 x 50 x 117.13 mm (LS-LSC-0265)LS-LSC-0265

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Unique optical design, luminance reach to 3.2 millions. High uniformity and good parallelism. Matched with high speed line scan camera.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LSC-0265
NoteUV & IR light can be customized as required.

Interfaces and I/O

Cable polarity1: +, 2: -, 3: FAN+, 4: FAN-
Cable (mm)3000 (drawing)

Light

LED colourR(red)/W(white)
Emitting surface (mm)500 x 18

Electrical

Voltage48V
Power420W
Input voltageDC 48V (max)

Mechanical

DimensionL540xW50xH117.13(mm)
Mounting holes4 x M4 nut slots
MountingM4 nut slots on all sides for mounting
Shipping weight2.10 kg

Other models in the Ultra brightness line scan light (LS-LSC-S28) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-LSC-0261 Red, Blue, Green, White · 100 x 18 mm $569.00 Ships in 2-3 weeks View
LS-LSC-0262 Red, Blue, Green, White · 200 x 18 mm $839.00 Ships in 2-3 weeks View
LS-LSC-0263 Red, Blue, Green, White · 300 x 18 mm $1,119.00 Ships in 2-3 weeks View
LS-LSC-0264 Red, Blue, Green, White · 400 x 18 mm $1,389.00 Ships in 2-3 weeks View
LS-LSC-0266 Red, Blue, Green, White · 600 x 18 mm $1,929.00 Ships in 2-3 weeks View
LS-LSC-0267 Red, Blue, Green, White · 700 x 18 mm $2,199.00 Ships in 2-3 weeks View
LS-LSC-0268 Red, Blue, Green, White · 800 x 18 mm $2,469.00 Ships in 2-3 weeks View
LS-LSC-0269 Red, Blue, Green, White · 900 x 18 mm $2,739.00 Ships in 2-3 weeks View
LS-LSC-0270 Red, Blue, Green, White · 1000 x 18 mm $3,009.00 Ships in 2-3 weeks View
