Line scan lights

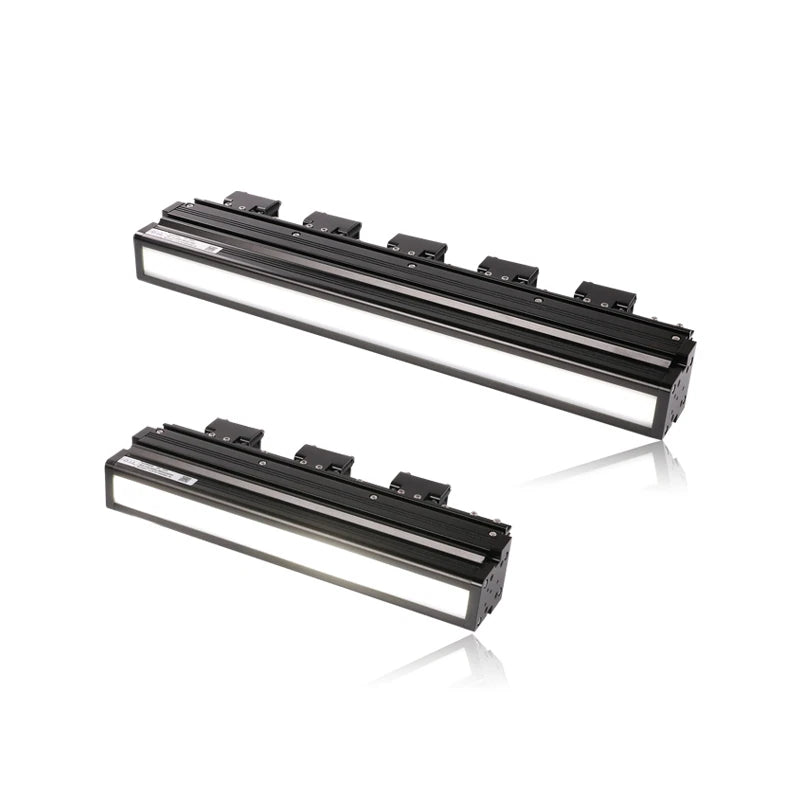

Double angle oblique light (LS-LSC-S08)
- 21 models
- from $459.00
- Series LS-LSC-S08
The Double angle oblique light (LS-LSC-S08) is a range of 21 line scan lights from LumaSpec Vision, from $459.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Colour
- Red, Green, Blue, White
- Size
- 100-200 mm, 200-400 mm, 400 mm +
- Voltage
- 24 V, 48 V
Features
- Adopted special optical structure, to realize the oblique emitting on both sides
- To inspect the scratch defects on moving direction
Typical uses
- Transparent plastic surface defects
- PET film scratch inspection
- Metal foil embossing
- Glass screen scratch or dirty parts inspection
All 21 models in the Double angle oblique light (LS-LSC-S08)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0036 | 84 x 24 | 36W | DC 24V (max) | 24V | $459.00 | View |
| LS-LSC-0037 | 124 x 24 | 54W | DC 24V (max) | 24V | $569.00 | View |
| LS-LSC-0038 | 164 x 24 | 72W | DC 24V (max) | 24V | $679.00 | View |
| LS-LSC-0039 | 204 x 24 | 90W | DC 24V (max) | 24V | $789.00 | View |
| LS-LSC-0040 | 244 x 24 | 108W | DC 24V (max) | 24V | $899.00 | View |
| LS-LSC-0041 | 284 x 24 | 126W | DC 24V (max) | 24V | $1,009.00 | View |
| LS-LSC-0042 | 324 x 24 | 144W | DC 24V (max) | 24V | $1,119.00 | View |
| LS-LSC-0043 | 364 x 24 | 162W | DC 24V (max) | 24V | $1,229.00 | View |
| LS-LSC-0044 | 404 x 24 | 180W | DC 24V (max) | 24V | $1,329.00 | View |
| LS-LSC-0045 | 444 x 24 | 198W | DC 24V (max) | 24V | $1,439.00 | View |
| LS-LSC-0046 | 484 x 24 | 216W | DC 24V (max) | 24V | $1,549.00 | View |
| LS-LSC-0047 | 764 | 324W | DC 24V (max) | 24V | $2,309.00 | View |
| LS-LSC-0048 | 884 | 432W | DC 48V (max) | 48V | $2,639.00 | View |
| LS-LSC-0049 | 1050 x 24 | 432W | DC 48V (max) | 48V | $3,089.00 | View |
| LS-LSC-0050 | 1184 x 24 | 504W | DC 48V (max) | 48V | $3,449.00 | View |
| LS-LSC-0051 | 1284 x 24 | 540W | DC 48V (max) | 48V | $3,719.00 | View |
| LS-LSC-0052 | 1484 x 24 | 648W | DC 48V (max) | 48V | $4,269.00 | View |
| LS-LSC-0053 | 1584 x 24 | 648W | DC 48V (max) | 48V | $4,539.00 | View |
| LS-LSC-0054 | 1704 x 24 | 720W | DC 48V (max) | 48V | $4,859.00 | View |
| LS-LSC-0055 | 1900 x 24 | 756W | DC 48V (max) | 48V | $5,389.00 | View |
| LS-LSC-0056 | 2684 x 24 | 1080W | DC 48V (max) | 48V | $7,519.00 | View |
