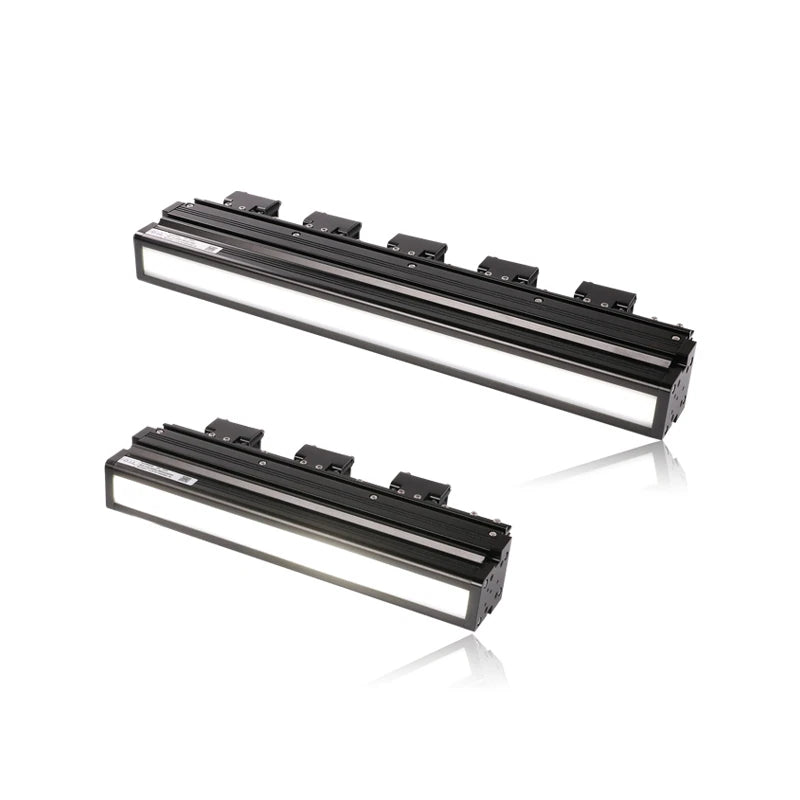

Representative photo of this series
Line scan lights
Double angle oblique light, 1600 x 53 x 125 mm (LS-LSC-0053)
Model LS-LSC-0053
- ColourRed, Blue, Green, White
- Emitting area1584 x 24 mm
- SizeL1600xW53xH125(mm)
- Voltage48V
- Power648W
$4,539.00
Ships in 2-3 weeks
6.05 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Contrast with conventional line scan light, the vertical scratch defects are highlighted under the line scan camera.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0053 |
|---|---|
| Cooling | Fan cooling |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

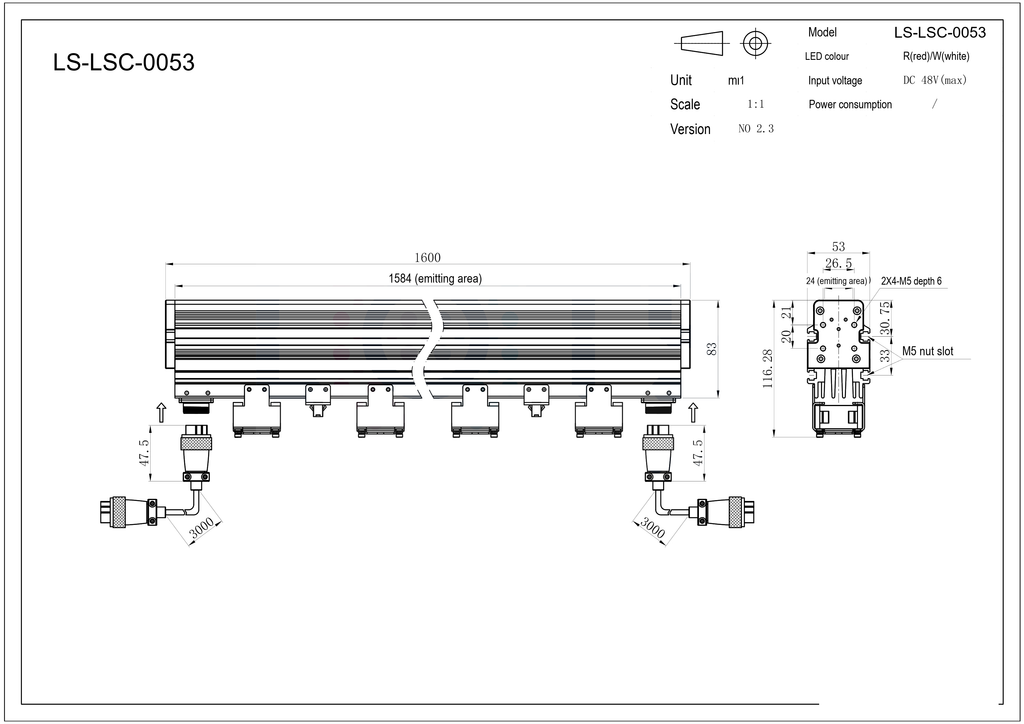

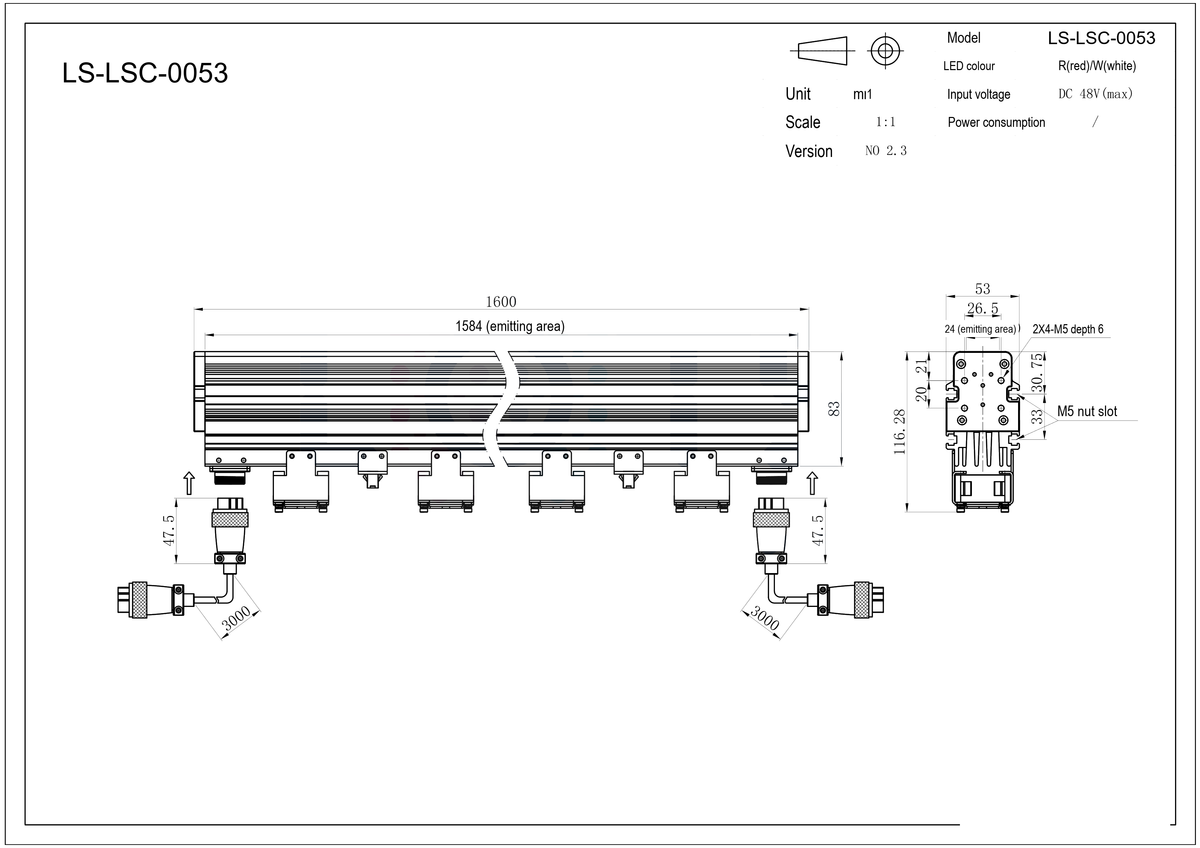

| Cable (mm) | 3000 (drawing) |
|---|
Light
| LED colour | R(red)/W(white) |
|---|---|
| Emitting surface (mm) | 1584 x 24 |
Electrical
| Voltage | 48V |
|---|---|
| Power | 648W |
| Input voltage | DC 48V (max) |
Mechanical
| Dimension | L1600xW53xH125(mm) |
|---|---|
| Mounting holes | 2×4-M5 depth 6 |
| Shipping weight | 6.05 kg |
Other models in the Double angle oblique light (LS-LSC-S08) series
See all 21 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0036 | Red, Blue, Green, White · 84 x 24 mm | $459.00 | Ships in 2-3 weeks | View |
| LS-LSC-0037 | Red, Blue, Green, White · 124 x 24 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-LSC-0038 | Red, Blue, Green, White · 164 x 24 mm | $679.00 | Ships in 2-3 weeks | View |
| LS-LSC-0039 | Red, Blue, Green, White · 204 x 24 mm | $789.00 | Ships in 2-3 weeks | View |
| LS-LSC-0040 | Red, Blue, Green, White · 244 x 24 mm | $899.00 | Ships in 2-3 weeks | View |
| LS-LSC-0041 | Red, Blue, Green, White · 284 x 24 mm | $1,009.00 | Ships in 2-3 weeks | View |
| LS-LSC-0042 | Red, Blue, Green, White · 324 x 24 mm | $1,119.00 | Ships in 2-3 weeks | View |
| LS-LSC-0043 | Red, Blue, Green, White · 364 x 24 mm | $1,229.00 | Ships in 2-3 weeks | View |
| LS-LSC-0044 | Red, Blue, Green, White · 404 x 24 mm | $1,329.00 | Ships in 2-3 weeks | View |
| LS-LSC-0045 | Red, Blue, Green, White · 444 x 24 mm | $1,439.00 | Ships in 2-3 weeks | View |
| LS-LSC-0046 | Red, Blue, Green, White · 484 x 24 mm | $1,549.00 | Ships in 2-3 weeks | View |
| LS-LSC-0047 | Red, Blue, Green, White · 764 mm | $2,309.00 | Ships in 2-3 weeks | View |
| LS-LSC-0048 | Red, Blue, Green, White · 884 mm | $2,639.00 | Ships in 2-3 weeks | View |
| LS-LSC-0049 | Red, Blue, Green, White · 1050 x 24 mm | $3,089.00 | Ships in 2-3 weeks | View |
| LS-LSC-0050 | Red, Blue, Green, White · 1184 x 24 mm | $3,449.00 | Ships in 2-3 weeks | View |
| LS-LSC-0051 | Red, Blue, Green, White · 1284 x 24 mm | $3,719.00 | Ships in 2-3 weeks | View |
| LS-LSC-0052 | Red, Blue, Green, White · 1484 x 24 mm | $4,269.00 | Ships in 2-3 weeks | View |
| LS-LSC-0054 | Red, Blue, Green, White · 1704 x 24 mm | $4,859.00 | Ships in 2-3 weeks | View |
| LS-LSC-0055 | Red, Blue, Green, White · 1900 x 24 mm | $5,389.00 | Ships in 2-3 weeks | View |
| LS-LSC-0056 | Red, Blue, Green, White · 2684 x 24 mm | $7,519.00 | Ships in 2-3 weeks | View |
