Line scan lights

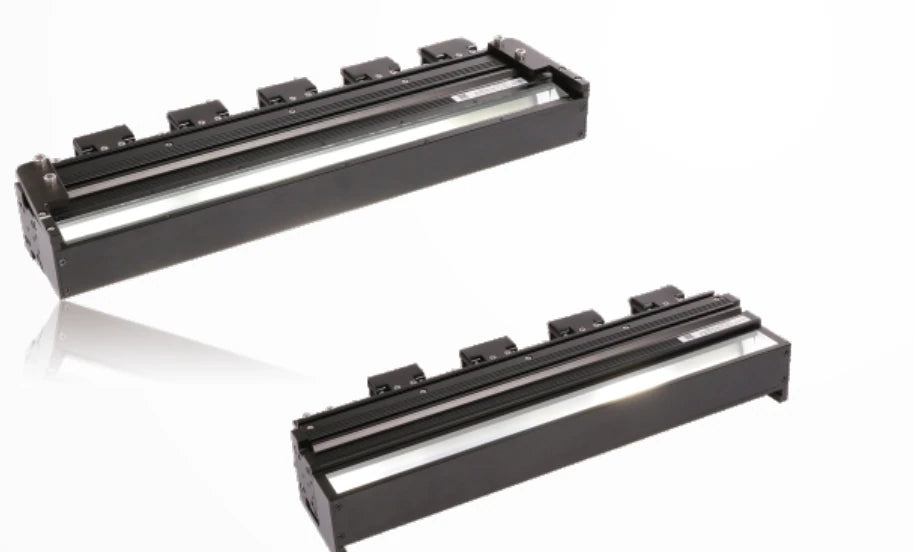

Coaxial line scan light, fan cooled (LS-LSC-S07)
- 12 models
- from $429.00
- Series LS-LSC-S07
The Coaxial line scan light, fan cooled (LS-LSC-S07) is a range of 12 line scan lights from LumaSpec Vision, from $429.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 84 mm, 124 mm, 164 mm, 204 mm, 244 mm, 284 mm, 324 mm, 364 mm, 404 mm, 444 mm, 484 mm, 884 mm
- Colour
- Red, Green, Blue, White
- Voltage
- 24 V
Features
- Special structure and optical lens design
- Good uniformity
- Good stability and high heat dissipation performance
- Stability design: fan can be dismounted independently; aviation connector; low production cost, high luminance; can be switched to a line scan light in a short time
- Option: diffuser plate to reduce lamp shadow and glare when imaging reflective workpieces
- Customizable: heat dissipation method, length, colour & colour temperature, cable length, installation method
Typical uses
- PCB inspection
- Mobile screen inspection
- Steel plate inspection
- Glass scratch inspection
- Display screen surface defect inspection
All 12 models in the Coaxial line scan light, fan cooled (LS-LSC-S07)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0024 | 84 mm | 36 | 24 | 84 | $429.00 | View |
| LS-LSC-0025 | 124 mm | 54 | 24 | 124 | $539.00 | View |
| LS-LSC-0026 | 164 mm | 72 | 24 | 164 | $659.00 | View |
| LS-LSC-0027 | 204 mm | 90 | 24 | 204 | $769.00 | View |
| LS-LSC-0028 | 244 mm | 108 | 24 | 244 | $879.00 | View |
| LS-LSC-0029 | 284 mm | 126 | 24 | 284 | $989.00 | View |
| LS-LSC-0030 | 324 mm | 144 | 24 | 324 | $1,099.00 | View |
| LS-LSC-0031 | 364 mm | 198 | 24 | 364 | $1,209.00 | View |
| LS-LSC-0032 | 404 mm | 216 | 24 | 404 | $1,329.00 | View |
| LS-LSC-0033 | 444 mm | 234 | 24 | 444 | $1,439.00 | View |
| LS-LSC-0034 | 484 mm | 252 | 24 | 484 | $1,549.00 | View |
| LS-LSC-0035 | 884 mm | 432 | 48 | 884 | $2,679.00 | View |
