Line scan lights

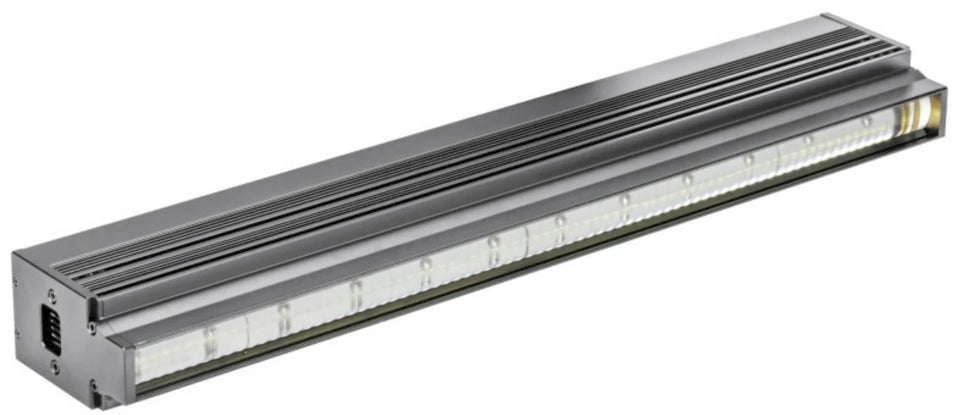

Ultra-high-brightness line light (LS-LSC-S56)
- 18 models
- from $389.00
- Series LS-LSC-S56
The Ultra-high-brightness line light (LS-LSC-S56) is a range of 18 line scan lights from LumaSpec Vision, from $389.00. It comes in 18 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 75 x 22 mm, 150 x 22 mm, 225 x 22 mm, 300 x 22 mm, 375 x 22 mm, 450 x 22 mm, 525 x 22 mm, 600 x 22 mm, 675 x 22 mm, 750 x 22 mm, 825 x 22 mm, 900 x 22 mm, 975 x 22 mm, 1050 x 22 mm, 1125 x 22 mm, 1200 x 22 mm and 2 more
- Colour
- Red, Blue, White
- Connector
- 16M-6J, 24M-6J
Features
- New-generation high-brightness line light, air-cooled design, brightness up to 1,800,000 lux
- Can be used as a front light or as a back light
- Different lengths can be customised to the site installation size
Typical uses
- High-speed motion scanning inspection
- Graphene material appearance inspection
- Lithium battery coating inspection
- Character inspection in the printing industry
- Metal surface scratch inspection
- Phone screen surface defect inspection
All 18 models in the Ultra-high-brightness line light (LS-LSC-S56)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSC-0580 | 75 x 22 mm | 75 x 22 | 500 | 16M-6J/16J6TQ aviation plug | $389.00 | View |
| LS-LSC-0581 | 150 x 22 mm | 150 x 22 | 500 | 16M-6J/16J6TQ aviation plug | $599.00 | View |
| LS-LSC-0582 | 225 x 22 mm | 225 x 22 | 500 | 16M-6J/16J6TQ aviation plug | $799.00 | View |
| LS-LSC-0583 | 300 x 22 mm | 300 x 22 | 500 | 16M-6J/16J6TQ aviation plug | $999.00 | View |
| LS-LSC-0584 | 375 x 22 mm | 375 x 22 | 2 x 500 | 16M-6J/16J6TQ aviation plug | $1,209.00 | View |
| LS-LSC-0585 | 450 x 22 mm | 450 x 22 | 2 x 500 | 16M-6J/16J6TQ aviation plug | $1,409.00 | View |
| LS-LSC-0586 | 525 x 22 mm | 525 x 22 | 2 x 500 | 16M-6J/16J6TQ aviation plug | $1,609.00 | View |
| LS-LSC-0587 | 600 x 22 mm | 600 x 22 | 2 x 500 | 16M-6J/16J6TQ aviation plug | $1,809.00 | View |
| LS-LSC-0588 | 675 x 22 mm | 675 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $2,019.00 | View |
| LS-LSC-0589 | 750 x 22 mm | 750 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $2,219.00 | View |
| LS-LSC-0590 | 825 x 22 mm | 825 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $2,419.00 | View |
| LS-LSC-0591 | 900 x 22 mm | 900 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $2,619.00 | View |
| LS-LSC-0592 | 975 x 22 mm | 975 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $2,829.00 | View |
| LS-LSC-0593 | 1050 x 22 mm | 1050 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $3,029.00 | View |
| LS-LSC-0594 | 1125 x 22 mm | 1125 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $3,229.00 | View |
| LS-LSC-0595 | 1200 x 22 mm | 1200 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $3,429.00 | View |
| LS-LSC-0596 | 1275 x 22 mm | 1275 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $3,639.00 | View |
| LS-LSC-0597 | 1350 x 22 mm | 1350 x 22 | 2 x 500 | 24M-6J/24J6TQ aviation plug | $3,839.00 | View |
