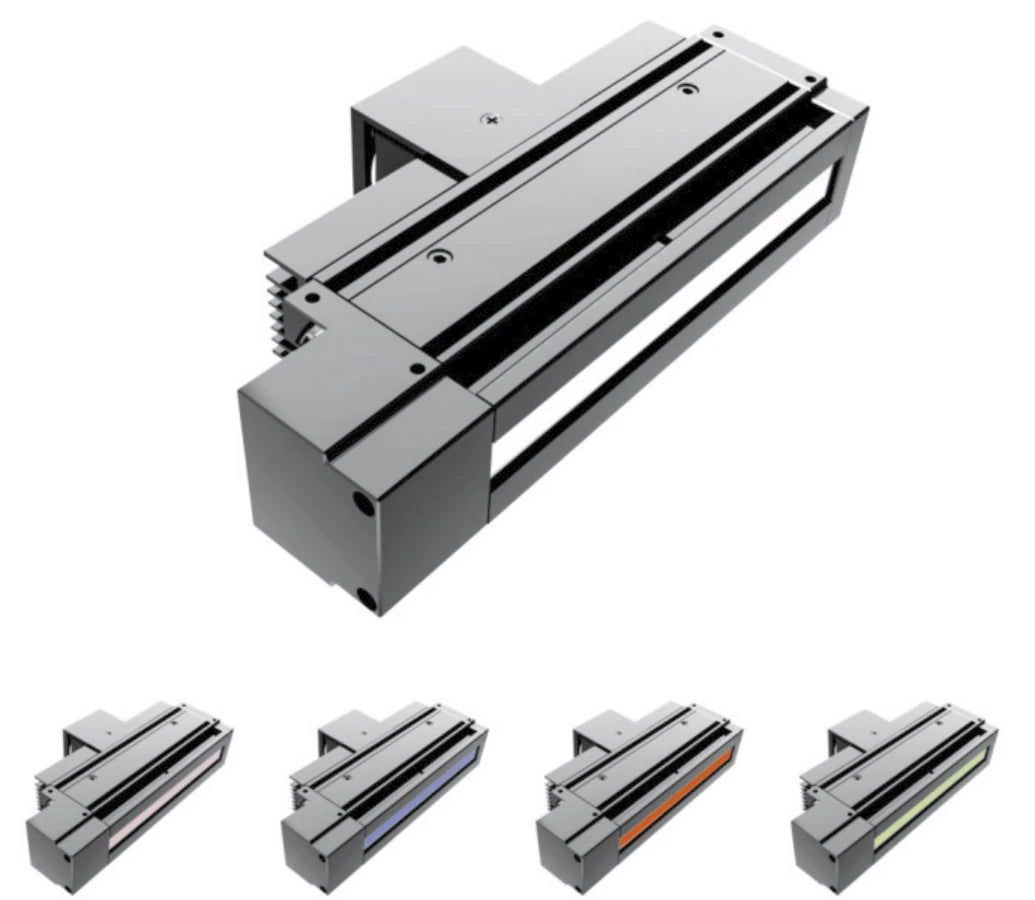

Representative photo of this series
Line scan lights
600 mm Time-division line-scan light source (LS-LSC-0579)
Model LS-LSC-0579
- ColourWhite
- Power448 W
- Voltage48 V
- Connector24M-5J
$1,819.00
Ships in 2-3 weeks
2.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Used with the time-division line-scan light controller for instantly higher brightness; several light groups switch instantly so one capture gives several lighting effects, solving compatibility issues, lowering vision hardware cost and saving machine space.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0579 |
|---|---|
| Optional accessories | Extension cable |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Number of light lines | 1 |
| Depth (mm) | 40 |
Interfaces and I/O
| Connector | 24M-5J aviation connector |
|---|---|
| Cable | 1500 mm |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting length (mm) | 600 |
| Emitting width (mm) | 17 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-0580 |
|---|---|
| Power (W) | 448 |
| Matching controller | LS-CTL-0580 |
| Supply voltage (derived) | 48 V DC, derived from the 48 V output of its recommended controllers LS-CTL-0580 |

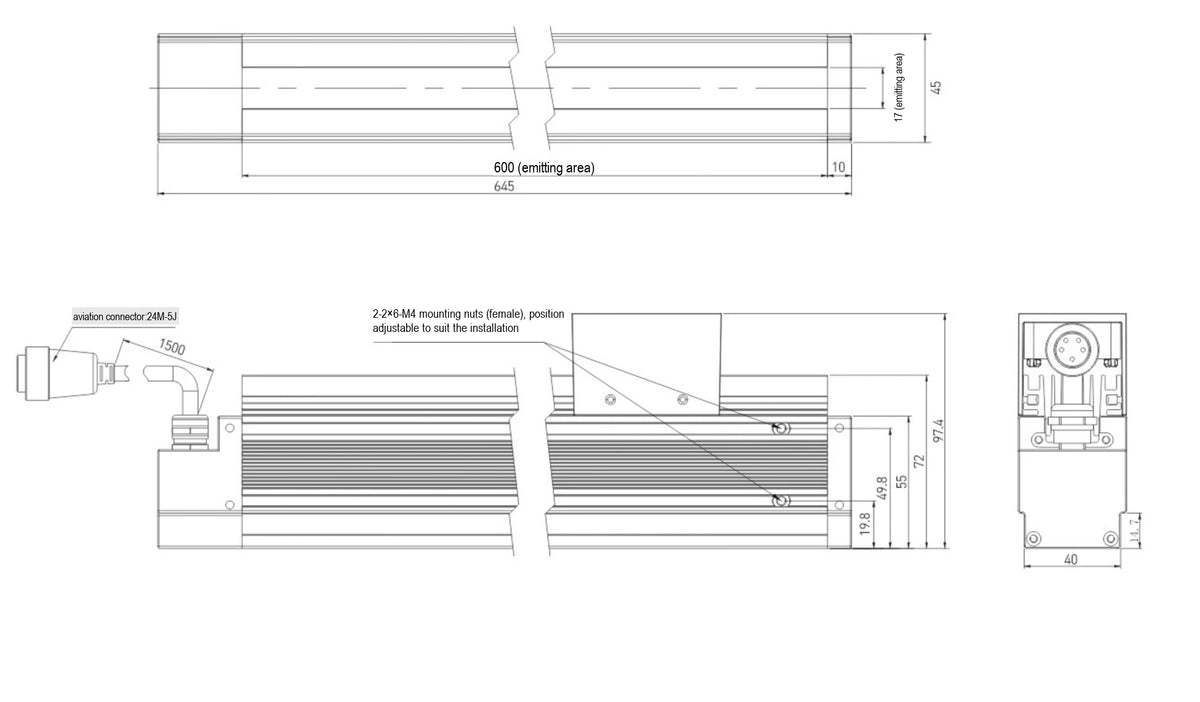

Mechanical
| Overall length (mm) | 645 |
|---|---|
| Width (mm) | 45 |
| Height (mm) | 97.4 |
| Mounting | 2-2 x 6-M4 mounting nuts (female), position adjustable |
| Shipping weight | 2.10 kg |
Other models in the Time-division line-scan light source (LS-LSC-S55) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0578 | 600 mm | $1,819.00 | Ships in 2-3 weeks | View |
| LS-LSC-0576 | 600 mm | $1,819.00 | Ships in 2-3 weeks | View |
| LS-LSC-0577 | 600 mm | $1,819.00 | Ships in 2-3 weeks | View |
