Line scan lights

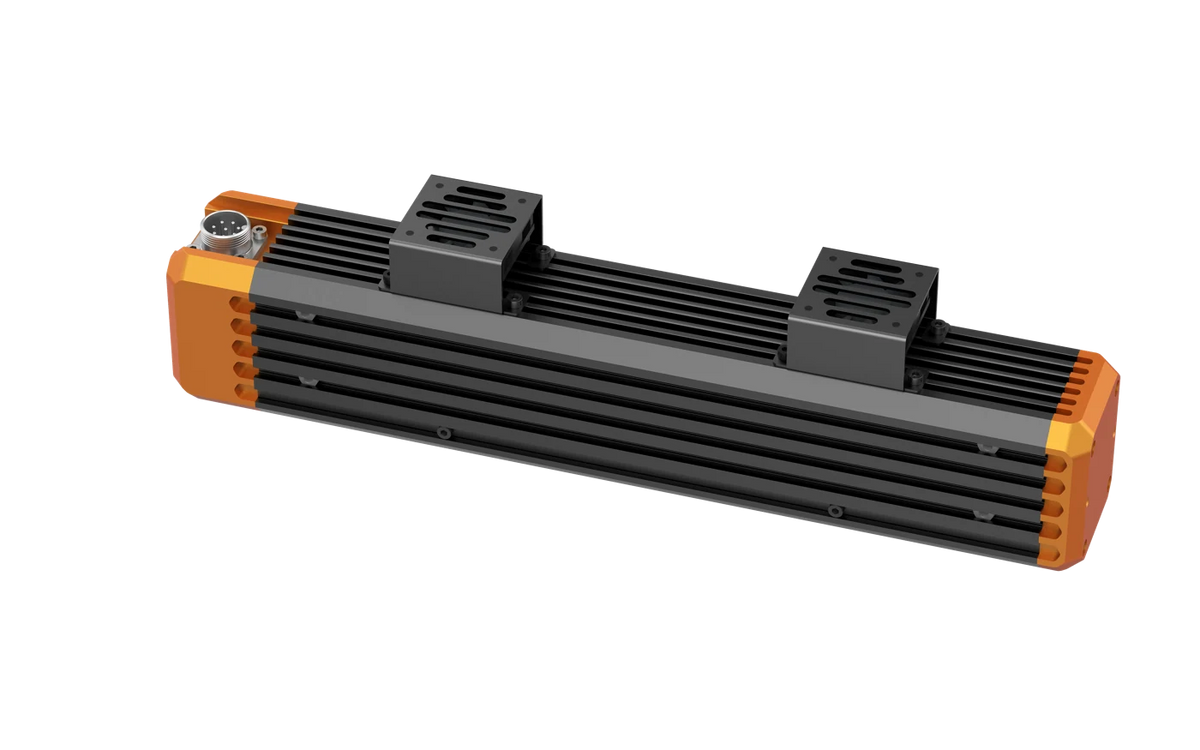

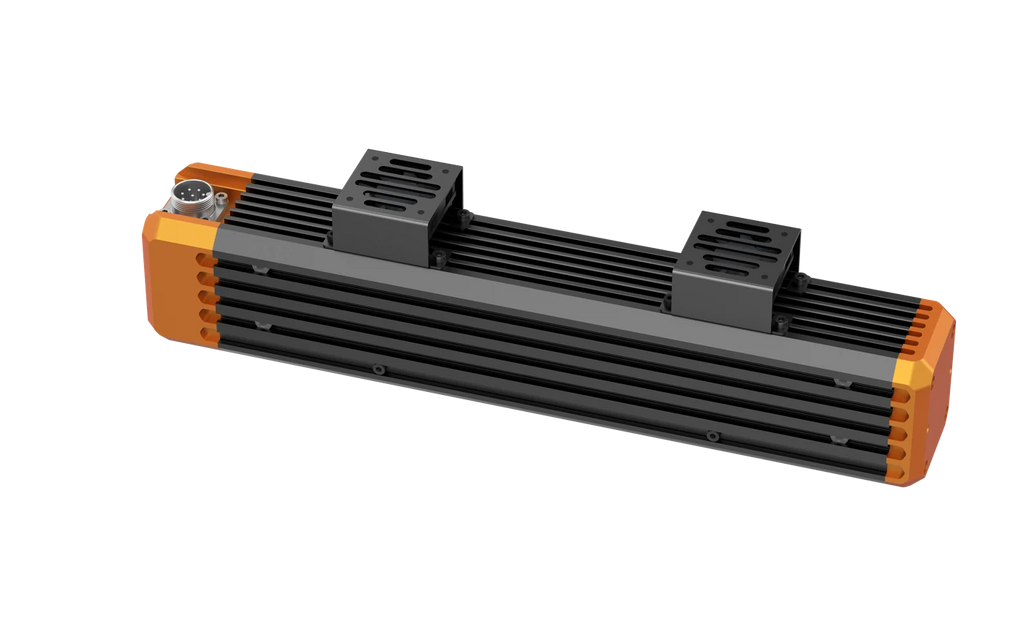

Line Scan Light, 600 mm, White (LS-LSC-0623)
Model LS-LSC-0623
- ColourWhite
- Emitting area600 mm × 17 mm
- Size650 mm × 58 mm × 90.5 mm
- Voltage48 VDC
- Power252 W
$1,869.00
Ships in 2-3 weeks
5.21 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line Scan Light, 600 mm, White. Provides high-power LED lamp beads combined with a highly focusing structure to achieve the illuminance of up to 1000K lux on the surface of light source. Improves the service life of the light source with a cooling fan on the enclosure.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0623 |
|---|
Optics
| Best working distance | 10 mm to 200 mm |
|---|
Interfaces and I/O
| Connector type | 19M-8H |
|---|---|
| Cable length | Additional options |
Light
| Color | White |
|---|---|
| Color temperature | 6000K to 7000K |
| Center illuminance/irradiance | ≥ 600K lux@100 mm |
| Emitting area dimension | 600 mm × 17 mm |
| LED rows | 1 |
Environment and compliance
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
|---|---|
| Humidity | 20% RH to 90% RH (no condensation) |
Electrical
| Power | 252 W |
|---|---|
| Input voltage | 48 VDC |
Mechanical

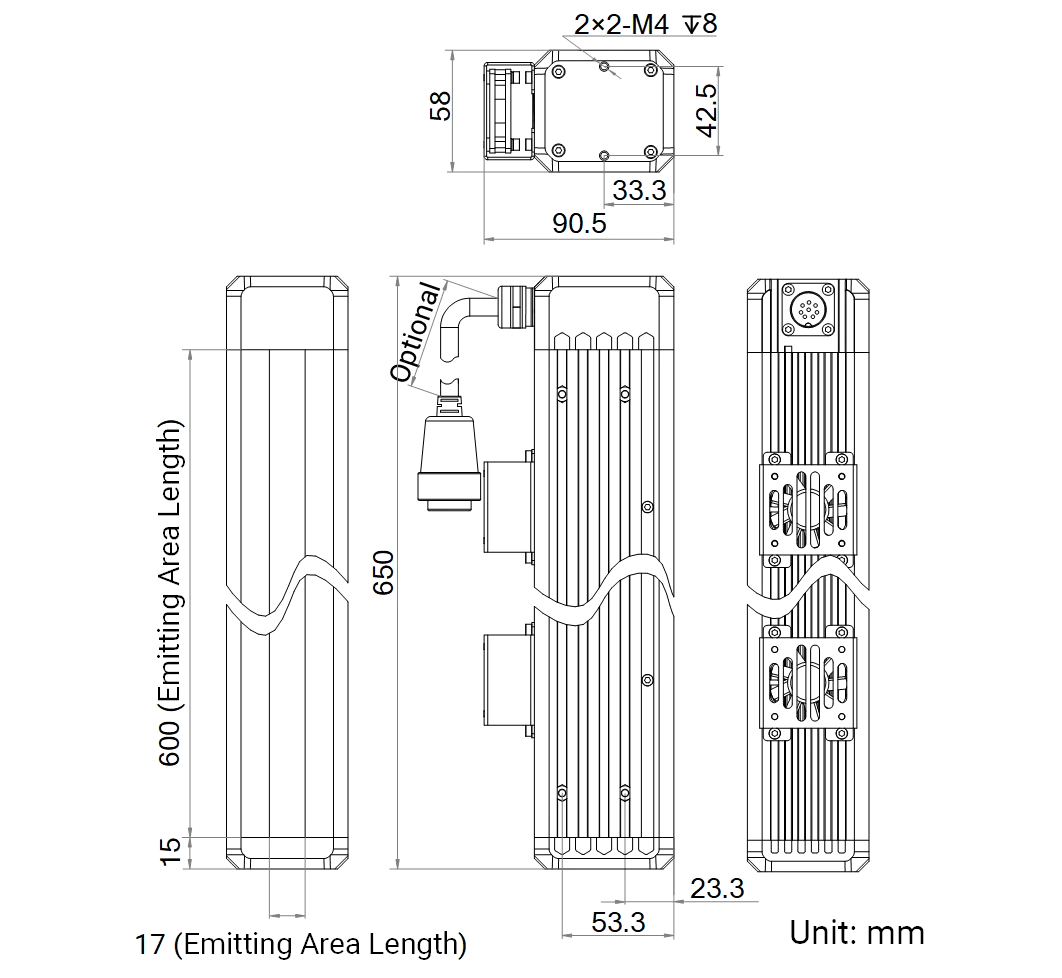

| Dimension | 650 mm × 58 mm × 90.5 mm |
|---|---|
| Weight | 3.65 kg |
| Shipping weight (estimated) | 5.21 kg |
Other models in the High-brightness line lights (LS-LSC-S58) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-LSC-0618 | 100 mm, White | $479.00 | Ships in 2-3 weeks | View |
| LS-LSC-0619 | 200 mm, White | $759.00 | Ships in 2-3 weeks | View |
| LS-LSC-0620 | 300 mm, White | $1,039.00 | Ships in 2-3 weeks | View |
| LS-LSC-0621 | 400 mm, White | $1,309.00 | Ships in 2-3 weeks | View |
| LS-LSC-0622 | 500 mm, White | $1,589.00 | Ships in 2-3 weeks | View |
| LS-LSC-0624 | 700 mm, White | $2,139.00 | Ships in 2-3 weeks | View |
| LS-LSC-0625 | 800 mm, White | $2,419.00 | Ships in 2-3 weeks | View |
| LS-LSC-0626 | 900 mm, White | $2,699.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0627 | 1000 mm, White | $2,979.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0628 | 1100 mm, White | $3,249.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0629 | 1200 mm, White | $3,529.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0630 | 1300 mm, White | $3,809.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0631 | 1400 mm, White | $4,089.00 Quote | Ships in 2-3 weeks | View |
| LS-LSC-0632 | 1500 mm, White | $4,359.00 Quote | Ships in 2-3 weeks | View |
