Representative photo of this series

Line scan lights

1125 x 22 mm Line scan light (LS-LSC-0133)

Model LS-LSC-0133

ColourRed, Blue, White
Voltage24 V
ConnectorWS20 4-pin
Luminous width22 mm

$3,299.00

Ships in 2-3 weeks

7.65 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-brightness line scan light, fan cooled, with luminous lengths from 75 to 2400 mm (22 mm wide); 24 V up to 1125 mm and 48 V for longer lengths, with WS16/WS20 aviation plugs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSC-0133

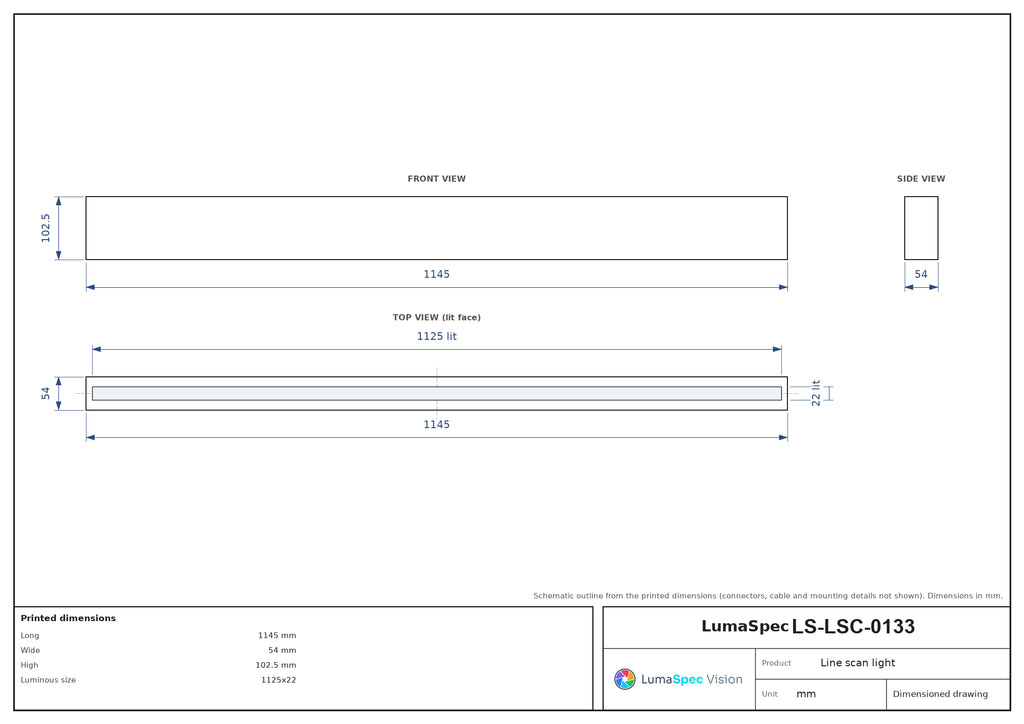

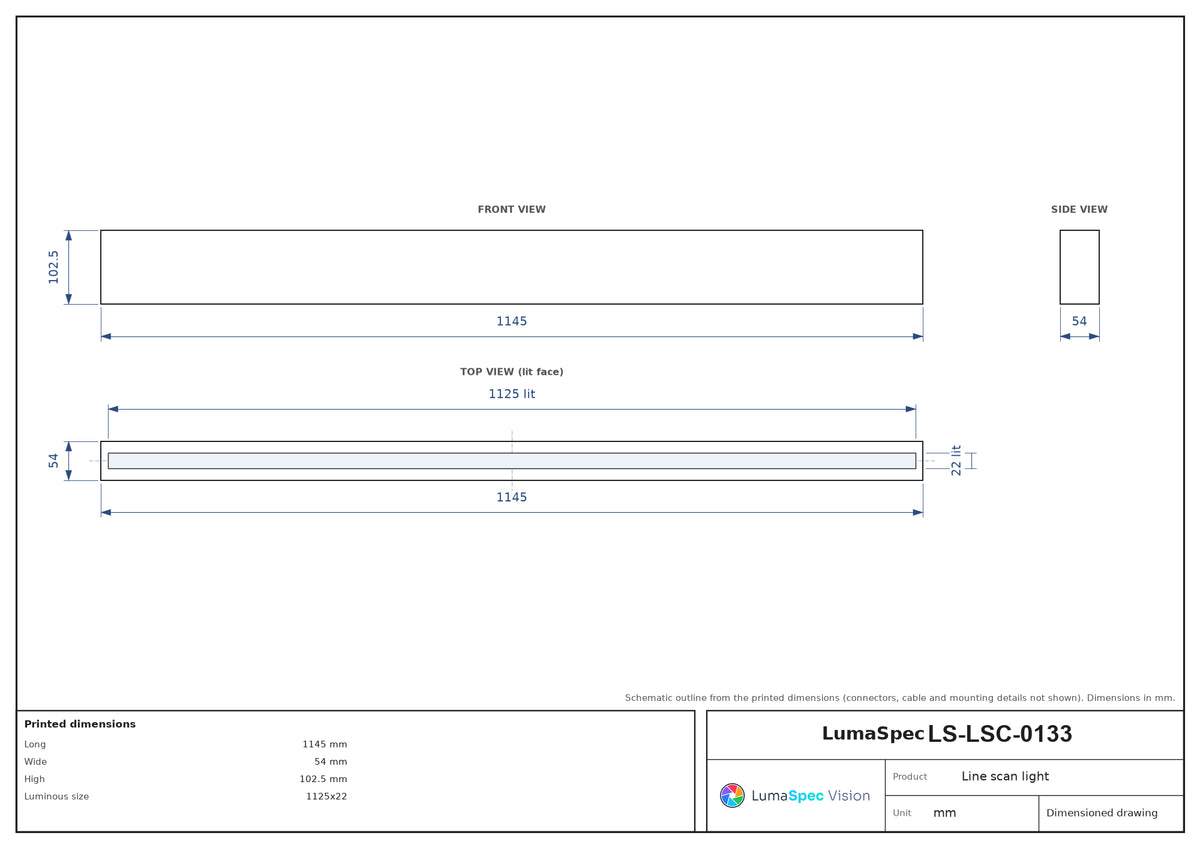

Cross-section	54 x 102.5 mm
Working life	white: 30000 hours, red: 30000 hours (the value varies according to the use environment)
Quality service	one year product warranty, technical support
Long (mm)	1145
Wide (mm)	54
High (mm)	102.5
Plug specification	WS20 aviation plug 4-core

Light

Luminous width	22 mm
Luminous size (mm)	1125x22
Wavelength red	620-630 nm
Wavelength blue	460-470 nm
Colour temperature white	6000-7500 K

Environment and compliance

Operating environment (indoor)	temperature 0~40 °C, humidity 20~85% (non condensing)

Electrical

Power cord	Selective assembly (optional)
Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	300
Power blue/white (W)	465

Mechanical

Weight (kg)	6.5

Downloads

Datasheet (PDF)LS-LSC-0133 · 1.8 MB

Features

Luminous lengths 75-2400 mm in 75 mm steps
Cooling fans in the housing
WS16 or WS20 aviation plug; power cord optional (selective assembly)
Three-colour RGB light source, size, wavelength/colour temperature, mounting and input wire length customization
Power supply: Input 24V DC, power 20-31W. Stable and flicker-free.
Effective luminous area: 75 * 22 mm. Customized design is also supported.
Energy-saving, Super Low Power Consuming, Highly Bright.

Applications

Packaging printing inspection
Tile pattern detection
Metal panel defect detection
Printed character detection
