Line scan lights

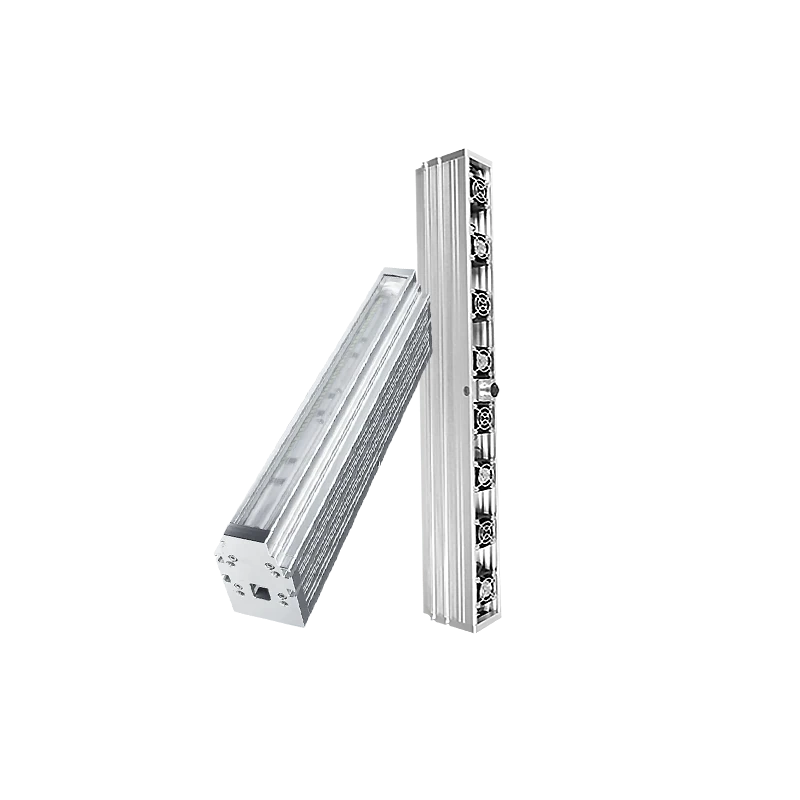

1500 x 22 mm Line scan light (LS-LSC-0136)

Model LS-LSC-0136

ColourRed, Blue, White
Voltage48 V
ConnectorWS20 6-pin
Luminous width22 mm

$4,319.00

Ships in 2-3 weeks

9.05 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High-brightness line scan light, fan cooled, with luminous lengths from 75 to 2400 mm (22 mm wide); 24 V up to 1125 mm and 48 V for longer lengths, with WS16/WS20 aviation plugs.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-LSC-0136
Cross-section	54 x 102.5 mm
Plug specification	6-core WS20 specification
Category	Line scan light
Terminal Plug	WS20 six-core aviation plug
Cooling	Natural air cooling
Electrical insulation capacity	DC500V resistance>20 megohms
Pressure Resistance Requirements	AC1000V 10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support
Long (mm)	1520
Wide (mm)	54
High (mm)	102.5

Interfaces and I/O

Mating cable	3m WS2 0 six-core cable
Connector Definition	1: LED (+) red ; 3:LED(-) black; 2:FAN(+)blue; 4:FAN(-)green
Mating cable (optional)	3m / 5m WS20 six-core cable

Light

Luminous width	22 mm
Luminous size (mm)	1500*22
LED type	SMD
Color	red/white/blue
Wavelength	red: 620-635nm; white: -; blue: 465-470nm
Color temperature	red: -; white: 6000-7000K; blue
Luminance	red: 450000LUX; white: 1500000LUX; blue: 33000LUX
Brightness Controller (optional)	DigitalController

Environment and compliance

Operating Temperature and Humidity	Temperature : 0 to 50ºC, Humidity : 20 to 85% RH(non-condensing)
Lifespan	Under our specified conditions of use,50,000 hours for red light and 30,000 hours for white light,the brightness is red uced to 50% of the factory value

Electrical

Power cord	Selective assembly (optional)
Power tolerance	actual product power within ±10% of the table is the normal range
Input Volt	LED:DC 48V max FAN:DC 24V
Voltage (V)	48
Power red (W)	400
Power blue/white (W)	620

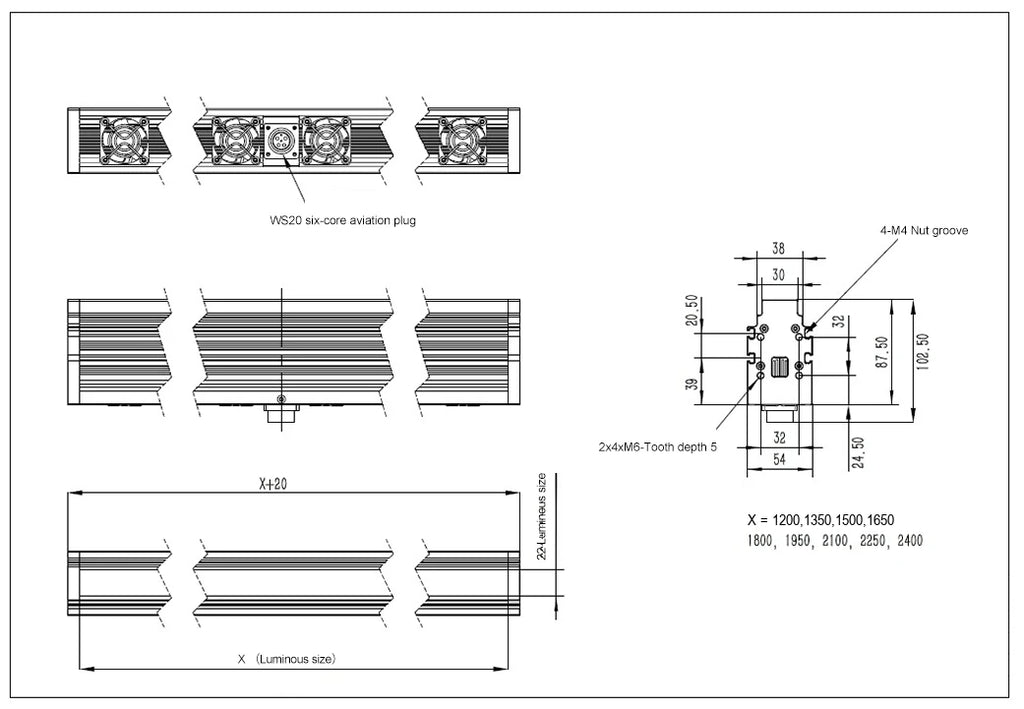

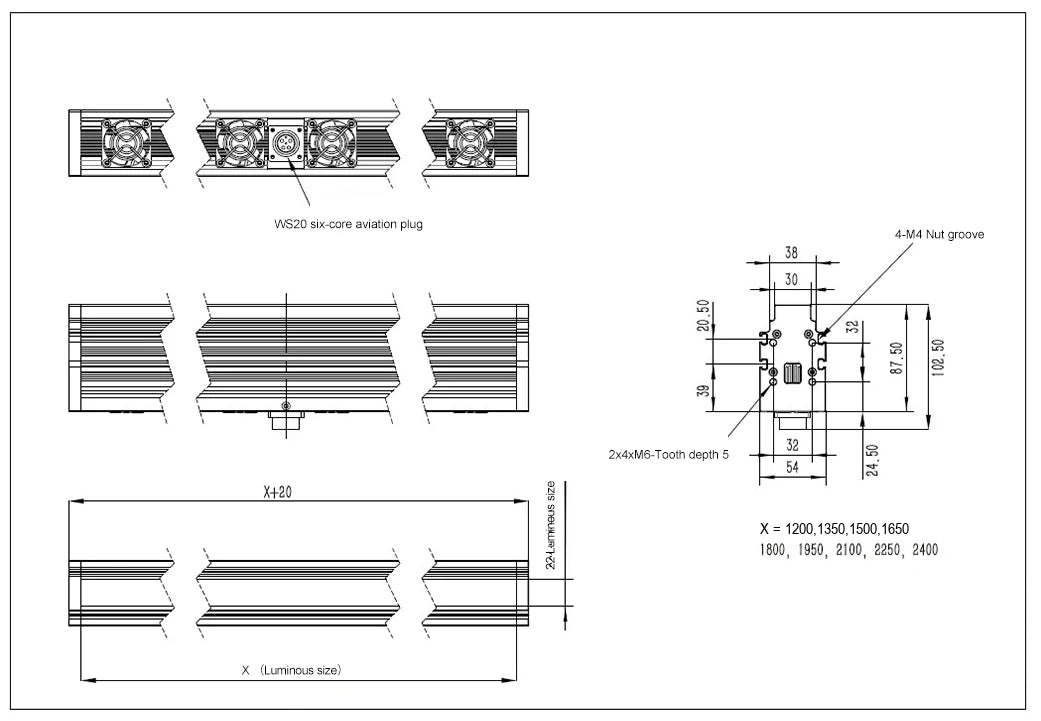

Mechanical

Weight (kg)	7.7
Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load230N±10N, time 5 minutes Contact area:diameter 30MM Energylevel:5J Elements:steel ball diameter 50MM, 500g±25g

Downloads

Datasheet (PDF)LS-LSC-0136 · 1.8 MB

Features

Luminous lengths 75-2400 mm in 75 mm steps
Cooling fans in the housing
WS16 or WS20 aviation plug; power cord optional (selective assembly)
Three-colour RGB light source, size, wavelength/colour temperature, mounting and input wire length customization
Power supply: Input 24V DC, power 20-31W. Stable and flicker-free.
Effective luminous area: 75 * 22 mm. Customized design is also supported.
Energy-saving, Super Low Power Consuming, Highly Bright.

Applications

Packaging printing inspection
Tile pattern detection
Metal panel defect detection
Printed character detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the Line scan light (LS-LSC-S15) series

See all 24 models
