Line scan lights

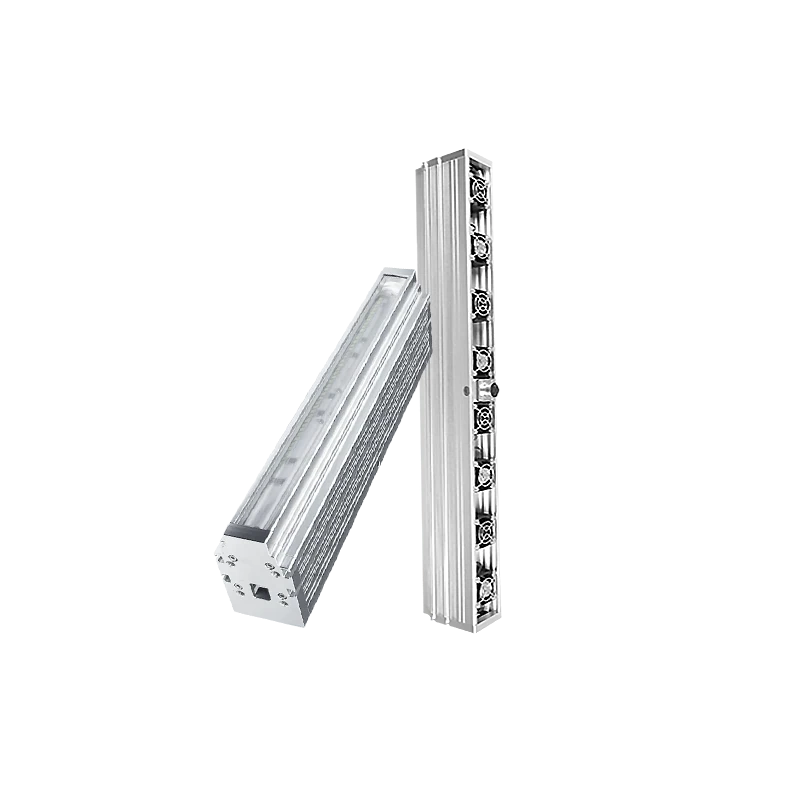

2400 x 22 mm Line scan light (LS-LSC-0142)
Model LS-LSC-0142
- ColourRed, Blue, White
- VoltageLED:DC 48V max FAN:DC 24V
- ConnectorWS20 6-pin
- Luminous width22 mm
$6,759.00
In stock - ships the same business day (4 available, order by 2 PM ET)
11.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-brightness line scan light, fan cooled, with luminous lengths from 75 to 2400 mm (22 mm wide); 24 V up to 1125 mm and 48 V for longer lengths, with WS16/WS20 aviation plugs.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LSC-0142 |
|---|---|

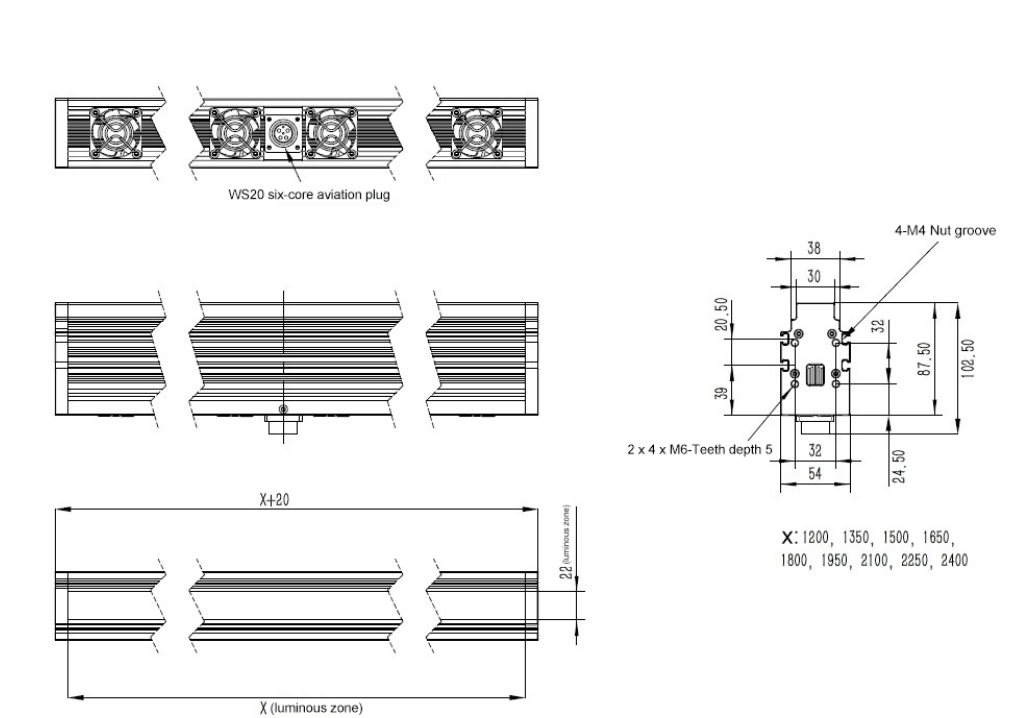

| Cross-section | 54 x 102.5 mm |
| Plug specification | 6-core WS20 specification |
| Product Type | Line scan light |
| Matching light line | 3 m WS20 six-core light source cable |
| Cooling method | Air cooling |
| Insulation Capacity Requirements | DC500V insulation resistance > 20 megohm |
| Pressure Requirements | AC1000V 10mA/5S |
| Flammability Grade | IEC60707 |
| Service life | Under the conditions specified by the company, red light is 50,000 hours, white light is 30,000 hours, and the brightness is reduced to 50% of the factory value |
| Value-added Services | One year free technical support, free loan sample testing |
| Long (mm) | 2420 |
| Wide (mm) | 54 |
| High (mm) | 102.5 |
Interfaces and I/O
| Connector type | WS20 six-pin aviation head socket |
|---|---|
| Connector Definition | 1,3: LED (+) red; 2,4: LED(-) black; 5: FAN(+) blue; 6: FAN(-) green |
| Supporting Cables (optional) | 3 m /5 m WS20 six-core light source cable |
Light
| Luminous width | 22 mm |
|---|---|
| Luminous size (mm) | 2400*22 |
| LED type | SMD |
| Colors | red/white/blue |
| Wavelength | red: 620-635nm; white: -; blue: 465-470nm |
| Brightness | red: 450000 LUX; white: 1500000 LUX; blue: 33000LUX |
Environment and compliance
| Temperature | red: -; white: 6000-7000K; blue |
|---|---|
| Operating Temperature and Humidity | Temperature: 0 to 50ºC, Humidity: 20 to 85%RH(non-condensing) |
Electrical
| Power cord | Selective assembly (optional) |
|---|---|
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Input voltage | LED:DC 48V max FAN:DC 24V |
| Power Supply (optional) | Digital controller |
| Voltage (V) | 48 |
| Power red (W) | 640 |
| Power blue/white (W) | 992 |
Mechanical
| Weight (kg) | 10.2 |
|---|---|
| Shell material | Aluminum alloy (surface color oxidation treatment) |
| Shell Hardness Parameters | Static load 230N±10N, time 5 minutes Contact area: diameter 30MM Energy grade: 5J Element: Steel ball diameter 50MM, 500g±25g |
