Hikrobot MV-CL162-91F1M (V2.0) 16k 3.5μm mono 2-line, XoF single fiber port
  • Hikrobot MV-CL162-91F1M (V2.0) 16k 3.5μm mono 2-line, XoF single fiber port

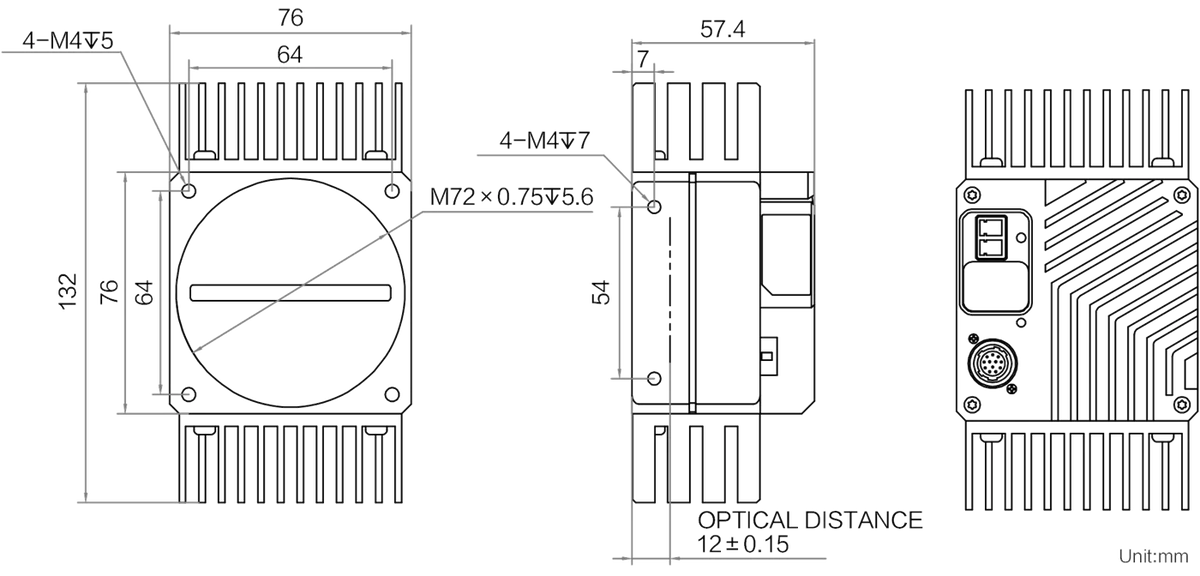

  • MV-CL162-91F1M (V2.0) dimensions (mm)

Line scan cameras

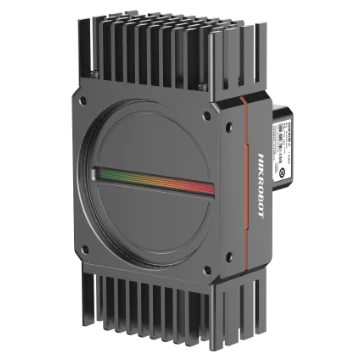

Hikrobot MV-CL162-91F1M (V2.0) 16k 3.5μm mono 2-line, XoF single fiber port

Model MV-CL162-91F1M (V2.0)Hikrobot

  • Resolution16384 × 2
  • SensorCMOS
  • InterfaceLC fiber port
  • Lens mountM72
  • Mono / colourMono
  • Pixel size3.5 μm
  • Lowest SNR of the 22 models in its series: 39.2 dB (shared with 1 other model)
$1,919.00

Ships in 2-3 weeks

0.94 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Line scan cameras

MV-CL162-91F1M (V2.0): resolution 16384 x 2, data interface LC fiber port, dynamic range 62 dB, SNR 39.2 dB.

Hikrobot MV-CL162-91F1M. Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment XoFLink fiber port for 20G high-bandwidth transmission

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CL162-91F1M (V2.0)
BrandHikrobot
Image mode1-Line supported, 2-TDI
Transmission mode1Link
Cooling modeNatural cooling
CompatibilityXoFLink, GenICam

Sensor and imaging

Sensor typeCMOS
Pixel size3.5 μm
Resolution16384 × 2
Max. line rateBase line rate: 73.2 kHz (1-Line), 60 kHz(2-TDI); With ROI line-rate boost: 120 kHz & 1-Line (9984 resolution or below)
Dynamic range62 dB
SNR39.2 dB
Gain1.0×
Exposure time3 μs ~ 10 ms
Exposure modeOff/ Once/ Continuous exposure mode, and supports trigger-width exposure
Mono/colorMono
Pixel formatMono 8/10/12
Binning1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output

Interfaces and I/O

Data interfaceLC fiber port
Digital I/O12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported.
Client softwareMVS

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits

Electrical

Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Power supply12~24 VDC
Power consumption10.6 W @ 24 VDC

Mechanical

Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension132 mm × 76 mm × 57.4 mm
WeightF-mount with fan: approx. 600 g (1.3 lb.)
Shipping weight (estimated)0.94 kg

Engineering data

Field of view and resolution with the MV-CL162-91F1M (V2.0)

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area57.3 mm
Lens image circle needed≥ Ø 57.3 mmM72
Pixel pitch3.5 µm16384 x 2 px
With a 60 mm lens at 500 mm478 mm0.029 mm per pixel
Dynamic range62 dB
SNR39.2 dB
Power consumption10.6 Wat 24 V DC
Exposure range3 µs to 10 ms
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
35 mm491 mm0.03 mm per pixel819 mm0.05 mm per pixel1637 mm0.1 mm per pixel
50 mm344 mm0.021 mm per pixel573 mm0.035 mm per pixel1146 mm0.07 mm per pixel
60 mm286 mm0.017 mm per pixel478 mm0.029 mm per pixel955 mm0.058 mm per pixel
85 mm202 mm0.012 mm per pixel337 mm0.021 mm per pixel674 mm0.041 mm per pixel
100 mm172 mm0.01 mm per pixel286 mm0.017 mm per pixel573 mm0.035 mm per pixel
150 mm115 mm0.007 mm per pixel191 mm0.012 mm per pixel382 mm0.023 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
