Frame grabbers

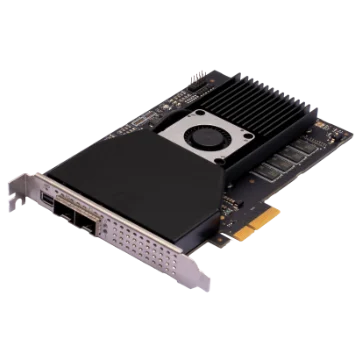

Hikrobot MV-GS1002F V3.0 XoF SFP+ Frame Grabbers V3.0, 2 ports

Model MV-GS1002F V3.0Hikrobot

InterfacePCI-E gen3 × 4
Ports2 ports
On-board memory2 GB DDR4
Bus indicator1

$2,059.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GS1002F V3.0 XoF SFP+ Frame Grabbers V3.0, 2 ports. Supports XoFLink protocol with multiple fiber ports to transmit data. Utilizes PCI-E gen3 × 4 and provides a link bandwidth up to 10 Gbps per channel.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-GS1002F V3.0
Brand	Hikrobot
Interconnect	PCI-E gen3 × 4
Bus indicator	1
Standard	XoFLink
SFP+ module	SFP+ × 2
Camera quantity supported	1/2
Camera connection speed	10 Gbps for single port, 20 Gbps in total
Stream	2 at most
Stream indicator	2 pairs

Interfaces and I/O

Data interface	2LC fiber port
I/O Type	Provides 11 configurable I/O connectors, compatible with single-ended/differential signals, and supports cascading of multiple frame grabbers.; I/O on bracket: Line 0 to Line 7 supports input (3.3 V to 24 V) and output (max. 24 V); I/O on PCB: Line 8 to Line 10 supports input (3.3 V to 12 V) and output (3.3 V)
Connector	Connector of I/O on bracket: 20-pin MiniDP female connector; Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole)
Client software	MVS

Environment and compliance

Temperature	Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity	10% RH to 95% RH (no condensation)
Certification	CE, KC, RoHS

Computing

On-board memory	2 GB DDR4
Operating system	Windows 7/10/11, Ubuntu 16.04 to 22.04 on Linux

Electrical

Power consumption	Typ. 9.8 W

Mechanical

Delivery bandwidth	4000 MB/s (max. transmission bandwidth); 3200 MB/s (sustained transmission bandwidth)

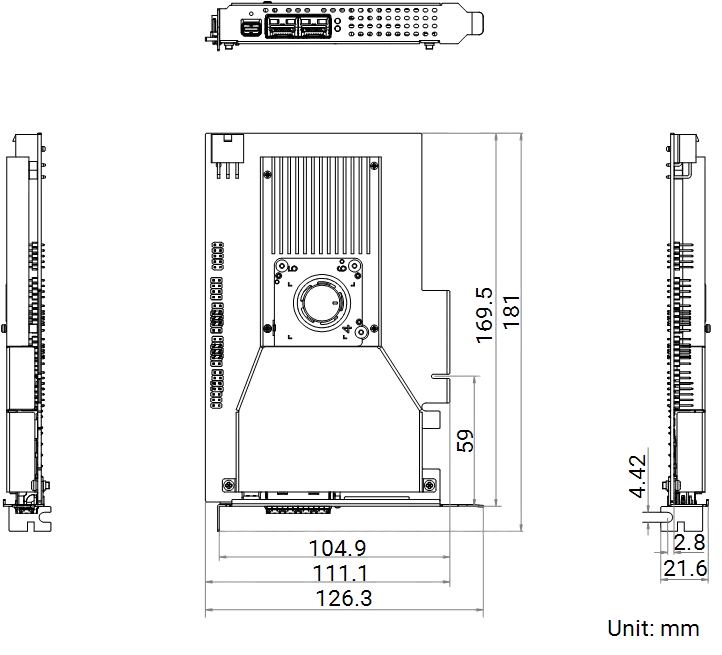

Dimension	181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9")
Shipping weight (estimated)	0.38 kg

Downloads

Features

Supports XoFLink protocol with multiple fiber ports to transmit data.
Utilizes PCI-E gen3 × 4 and provides a link bandwidth up to 10 Gbps per channel.
Various indicators indicate frame grabber status in real time.
Adopts multiple I/O connectors for input and output.
Provides SDK for secondary development.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the XoF Frame Grabbers series

See all 8 models

Model	Size / key data	Price	Availability	Link
MV-GS1004F V3.0	XoFLink	$2,059.00	4 in stock	View
MV-GS1104F	XoFLink	$2,059.00	2 in stock	View
MV-GS1104F-CR	XoFLink	$2,059.00	3 in stock	View
MV-GS1104F-DF	XoFLink	$2,059.00	2 in stock	View
MV-GS1002F-DF V3.0	XoFLink	$2,059.00	4 in stock	View
MV-GS1004F-DF V3.0	XoFLink	$2,059.00	2 in stock	View
MV-GD1104	XoFLink	$2,059.00 Quote	Ships in 2-3 weeks	View
