Frame grabbers

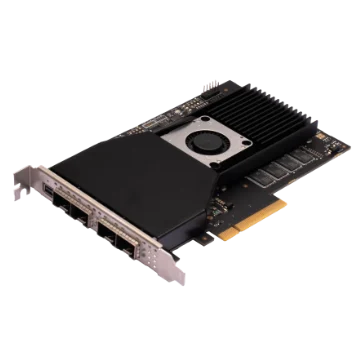

Hikrobot MV-GD1104 XoF fiber-port frame grabber
Model MV-GD1104Hikrobot
- InterfacePCI-E gen3 × 8
- Size181 mm × 126.3 mm × 21.6 mm
- On-board memory4 GB DDR4
- Bus indicator1
$2,059.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GD1104 XoF fiber-port frame grabber. Multi-port XoFLink fiber transmission for stable data transfer PCI-E Gen3 ×8 bus supports simultaneous 10 Gbps acquisition from 4 cameras
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GD1104 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 8 |
| Bus indicator | 1 |
| Standard | XoFLink |
| SFP+ module | 4 × SFP+ |
| Camera quantity supported | 1/2/3/4 |
| Camera connection speed | 10 Gbps for single port, 40 Gbps in total |
| Stream | 4 |
| Stream indicator | 4 |
Interfaces and I/O
| Data interface | 2LC fiber port |
|---|---|
| I/O Type | 11 configurable inputs/outputs, Single-ended/differential compatible, Multi-card cascading supported; Bracket I/O: Line 0~7, 3.3 ~ 24 V input/output; Pin-header I/O: Line 8~10, 3.3 ~ 12 V input, 3.3 V output |
| Connector | Bracket I/O: Mini-DP, Female, 20 pin; Pin header I/O: 9-pin header (2.54 mm pitch, 2 × 5, 10-pin blind hole) |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC, RoHS |
Computing
| On-board memory | 4 GB DDR4 |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power consumption | 20 W |
|---|
Mechanical
| Delivery bandwidth | 7800 MB/s (max. transmission bandwidth); 6700 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Shipping weight (estimated) | 0.38 kg |
