Hikrobot MV-CL16K5-40F2C-PRO 16k5μm, 12-line true color, 4TDI, 4-light time-division

Model MV-CL16K5-40F2C-PROHikrobot

Resolution16384 × 12
SensorCMOS
Interface2LC fiber port
Speed40 kHz
Lens mountF-mount
Mono / colourColor

$1,919.00

Ships in 2-3 weeks

1.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL16K5-40F2C-PRO 16k5μm, 12-line true color, 4TDI, 4-light time-division. Rich ISP image processing, including manual Gamma correction, flat-field correction and color correction RGB true-color imaging with flexible exposure and acquisition modes; single-line/2-TDI/4-TDI imaging

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CL16K5-40F2C-PRO
Brand	Hikrobot
Image mode	1-Line supported, 2-TDI, 4-TDI, 4 exposure polling groups supported
Transmission mode	1Link, 2Link
Compatibility	XoFLink, GenlCam

Sensor and imaging

Sensor type	CMOS
Pixel size	5 μm × 5 μm
Resolution	16384 × 12
Max. line rate	40 kHz
Dynamic range	62.6 dB
SNR	39.3 dB
Gain	1.0×, 1.3×, 2.0×, 4.0×
Exposure time	3 μs ~ 10 ms
Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
Mono/color	Color
Pixel format	RGB 8, BGR 8, Mono 8/10/12, Bayer RG 8/10/12
Binning	1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output

Interfaces and I/O

Data interface	2LC fiber port
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported.
Client software	MVS

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger
Power supply	24 VDC
Power consumption	26.2 W@24 VDC

Mechanical

Lens mount	M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter

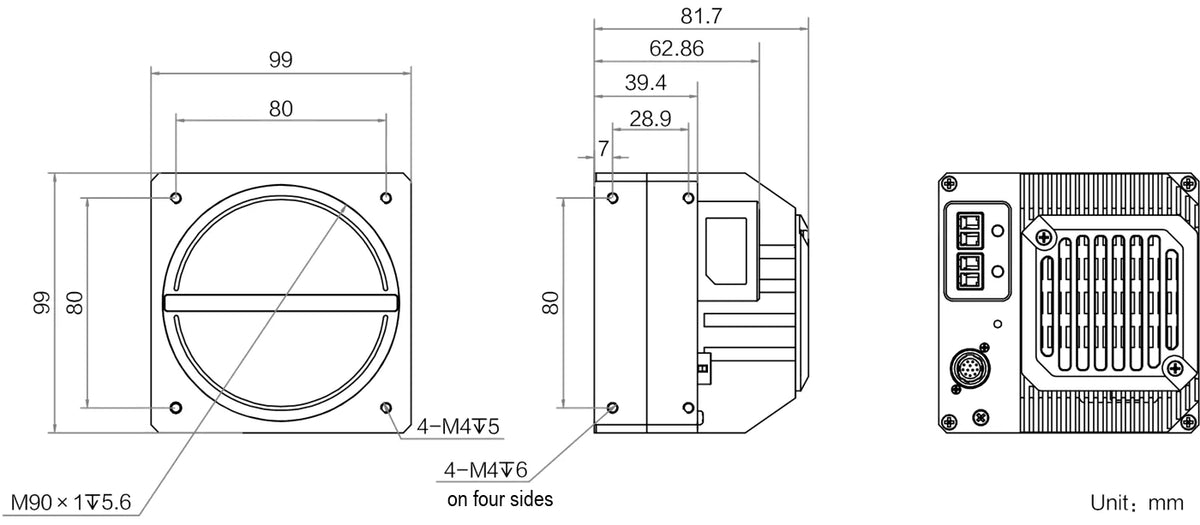

Dimension	99 mm × 99 mm × 81.7 mm
Weight	Approx. 870 g
Shipping weight (estimated)	1.32 kg

Downloads

Features

Rich ISP image processing, including manual Gamma correction, flat-field correction and color correction
RGB true-color imaging with flexible exposure and acquisition modes; single-line/2-TDI/4-TDI imaging
Dual XoFLink fiber ports for high-bandwidth transmission; base line rate up to 40 kHz
Matched frame-grabber transmission solution combining high-speed transfer with flexible image/light-linked acquisition
Compact design with mounting holes on multiple sides for flexible installation
