Line scan cameras

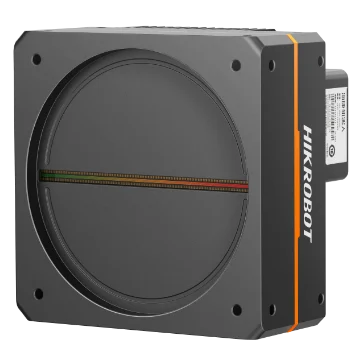

Hikrobot MV-CL166-91F2C 16k 5μm, XoF (2 SFP+) linescan camera, RGB/4TDI

Model MV-CL166-91F2CHikrobot

Resolution16384 × 12
SensorCMOS
Interface2LC fiber connector
Lens mountF-mount
Mono / colourColor
Pixel size5 μm × 5 μm

$1,919.00

Ships in 2-3 weeks

1.39 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL166-91F2C 16k 5μm, XoF. Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc. Supports RGB true color, multiple exposure and acquisition methods.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CL166-91F2C
Brand	Hikrobot
Image mode	Supports 1-Line, 2-TDI, 3-TDI, 4-TDI
Compatibility	XoFLink, GenlCam
Transmission mode	1 Link, 2 Link

Sensor and imaging

Sensor type	CMOS
Pixel size	5 μm × 5 μm
Resolution	16384 × 12
Max. line rate	47.3 kHz (1-Line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI)
Dynamic range	69.3 dB
SNR	41.4 dB
Gain	1.0 ×
Exposure time	3 μs to 10 ms
Exposure mode	Off/Once/Continuous exposure mode, and supports trigger-width exposure
Pixel format	RGB 8, BGR 8
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output
Mono/color	Color

Interfaces and I/O

Data interface	2LC fiber connector
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Client software	MVS

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Power supply	24 VDC
Power consumption	Typ. 22.5 W @ 24 VDC

Mechanical

Lens mount	M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter

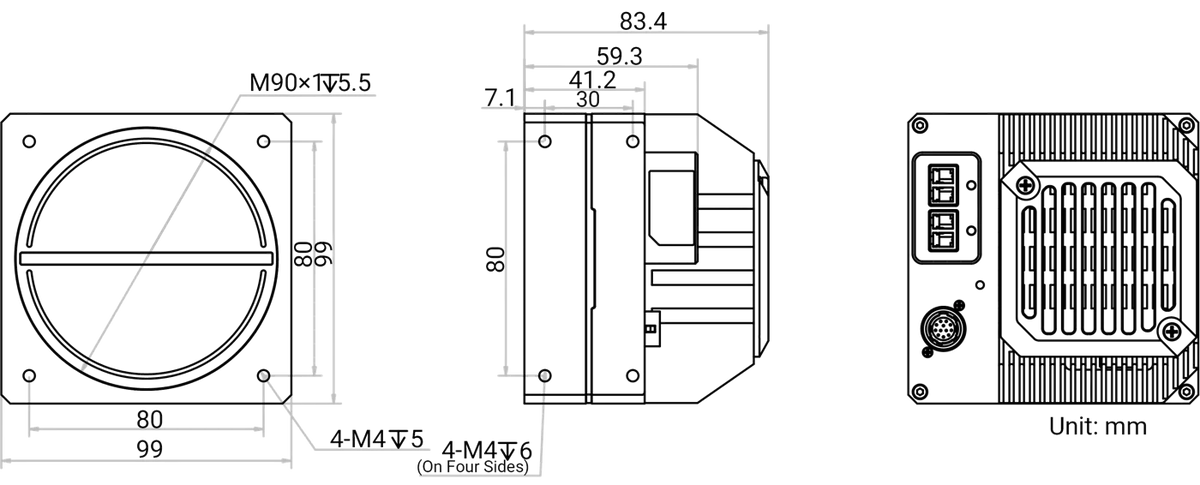

Dimension	99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3")
Weight	Approx. 923 g (2.0 lb.)
Shipping weight (estimated)	1.39 kg

Downloads

Features

Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc.
Supports RGB true color, multiple exposure and acquisition methods.
Supports image mode of 1-line, 2-TDI, 3-TDI, and 4-TDI.
Supports transmission protocol of XoFLink with max. line rate of 47.3 kHz.
Adopts bi-directional configurable I/O hardware design.
Compact design and flexible installation.
