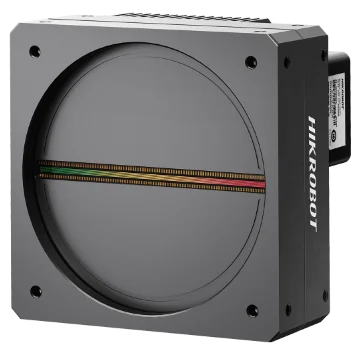

Hikrobot MV-CL16K5-110F2M 16k5μm, 4-line mono, 4TDI

Model MV-CL16K5-110F2MHikrobot

Resolution16384 × 4
SensorCMOS
Interface2LC fiber port
Lens mountF-mount
Mono / colourMono
Pixel size5 μm × 5 μm

$1,919.00

Ships in 2-3 weeks

1.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL16K5-110F2M 16k5μm, 4-line mono, 4TDI. Rich ISP image processing, including manual Gamma correction, flat-field correction, LUT and black level Single-line and TDI imaging modes with flexible exposure and acquisition

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CL16K5-110F2M
Brand	Hikrobot
Image mode	1-Line, 2-TDI, 3-TDI, 4-TDI
Transmission mode	1Link, 2Link
Compatibility	XoFLink, GenlCam

Sensor and imaging

Sensor type	CMOS
Pixel size	5 μm × 5 μm
Resolution	16384 × 4
Max. line rate	110 kHz(1-Line)@Mono 8/10, 98.6 kHz(1-Line)@Mono 12; 88 kHz(2-TDI)@ Mono 8/10/12; 67 kHz(3-TDI)@ Mono 8/10/12; 55 kHz(4-TDI)@ Mono 8/10/12
Dynamic range	62.5 dB
SNR	40.8 dB
Gain	1.0×, 2.0×
Exposure time	3 μs ~ 10 ms
Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output

Interfaces and I/O

Data interface	2LC fiber port
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported.
Client software	MVS

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Power supply	12 ~ 24 VDC
Power consumption	15.8 W@24 VDC

Mechanical

Lens mount	M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter

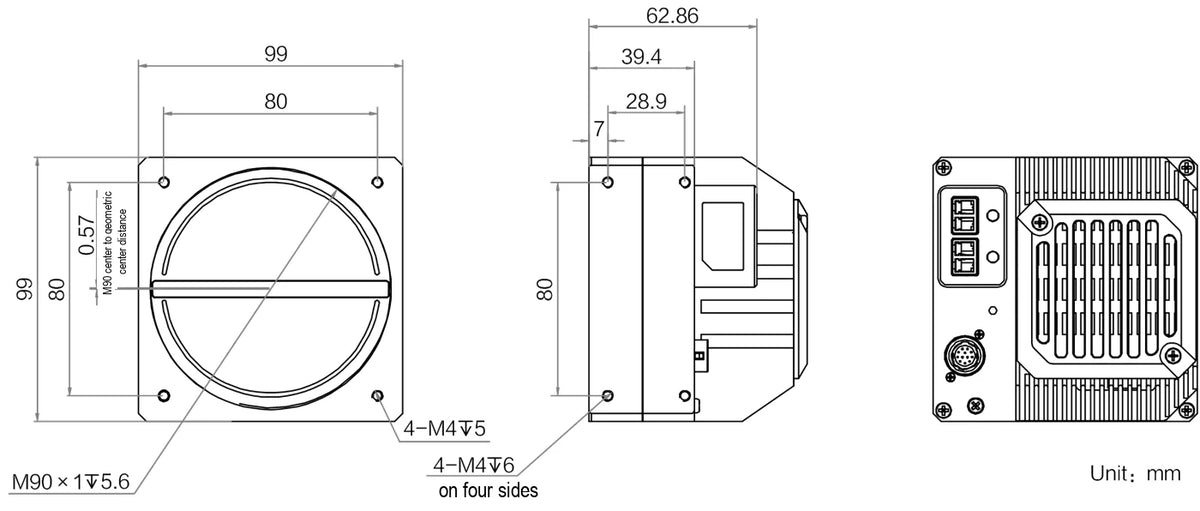

Dimension	99 mm × 99 mm × 81.7 mm
Weight	Approx. 870 g
Shipping weight (estimated)	1.32 kg

Downloads

Features

Rich ISP image processing, including manual Gamma correction, flat-field correction, LUT and black level
Single-line and TDI imaging modes with flexible exposure and acquisition
Dual 10G fiber ports with XoFLink protocol for high bandwidth and reliable acquisition
Compact design with mounting holes on multiple sides for flexible installation
