Line scan cameras

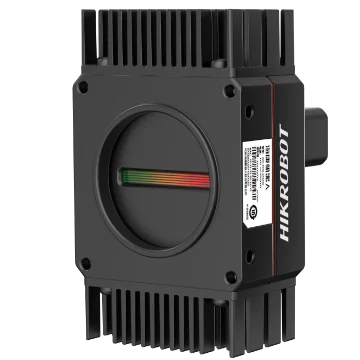

Hikrobot MV-CL042-91FC 4k 7μm, color, XoF
Model MV-CL042-91FCHikrobot
- Resolution4096 × 2
- SensorCMOS
- InterfaceLC fiber connector
- Lens mountM42
- Mono / colourColor
- Pixel size7 μm × 7 μm
$1,919.00
Ships in 2-3 weeks
0.52 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CL042-91FC 4k 7μm, color, XoF. Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc. Provides one XoF fiber port with 10 GB bandwidth.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CL042-91FC |
|---|---|
| Brand | Hikrobot |
| Image mode | Supports 1-Line |
| Compatibility | XoFLink, GenlCam |
| Transmission mode | 1 Link |
Sensor and imaging
| Sensor type | CMOS |
|---|---|
| Pixel size | 7 μm × 7 μm |
| Resolution | 4096 × 2 |
| Max. line rate | Standard mode:; 98 kHz @ RGB 8/BGR 8, 100 kHz @ Mono 8/10/12/Bayer RG 8/10/12/Bayer RBGG 8; Line rate after ROI: 100 kHz |
| Dynamic range | 65.6 dB |
| SNR | 40 dB |
| Gain | 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × |
| Exposure time | 3 μs to 10 ms |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Bayer RG 8/10/12, Bayer RBGG 8, RGB 8, BGR 8, Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Mono/color | Color |
Interfaces and I/O
| Data interface | LC fiber connector |
|---|---|
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Client software | MVS |
Environment and compliance
| Ingress protection | IP40 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% to 90% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
|---|
Electrical
| Trigger mode | External trigger, internal trigger |
|---|---|
| External trigger mode | Line trigger, frame trigger, line + frame trigger |
| Power supply | 12 VDC to 24 VDC |
| Power consumption | Typ. 9 W @ 12 VDC |
Mechanical
| Lens mount | M42*1.0, flange back length 12 mm, applicable to F-mount via lens adapter |
|---|---|
| Dimension | 101.2 mm × 62 mm × 70.7 mm (4.0" × 2.4" × 2.8") |
| Weight | Approx. 300 g (0.7 lb.) |
| Shipping weight (estimated) | 0.52 kg |
