Line scan cameras

Hikrobot MV-CL042-91FM 4k 7μm, mono, XoF

Model MV-CL042-91FMHikrobot

Resolution4096 × 2
SensorCMOS
InterfaceLC fiber connector
Speed195 kHz (1-Line), 100 kHz (2-TDI)
Lens mountM42
Mono / colourMono

$1,919.00

Ships in 2-3 weeks

0.52 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CL042-91FM 4k 7μm, mono, XoF. Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc. Provides one XoF fiber port, and supports multiple exposure and acquisition methods with max. line rate of 195 kHz.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CL042-91FM
Brand	Hikrobot
Image mode	Supports 1-Line, 2-TDI
Compatibility	XoFLink, GenlCam
Transmission mode	1 Link

Sensor and imaging

Sensor type	CMOS
Pixel size	7 μm × 7 μm
Resolution	4096 × 2
Max. line rate	195 kHz (1-Line), 100 kHz (2-TDI)
Dynamic range	67.6 dB
SNR	40.1 dB
Gain	1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time	3 μs to 10 ms
Exposure mode	Off/ Once/ Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal reverse image output

Interfaces and I/O

Data interface	LC fiber connector
Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Client software	MVS

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –20 °C to 55 °C (–4 °F to 131 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	5% RH to 90% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Trigger mode	External trigger, internal trigger
External trigger mode	Line trigger, frame trigger, line + frame trigger
Power supply	12 VDC to 24 VDC
Power consumption	Typ. 8.8 W @ 12 VDC

Mechanical

Lens mount	M42*1.0, flange focal length 12 mm, applicable to F-mount via lens adapter

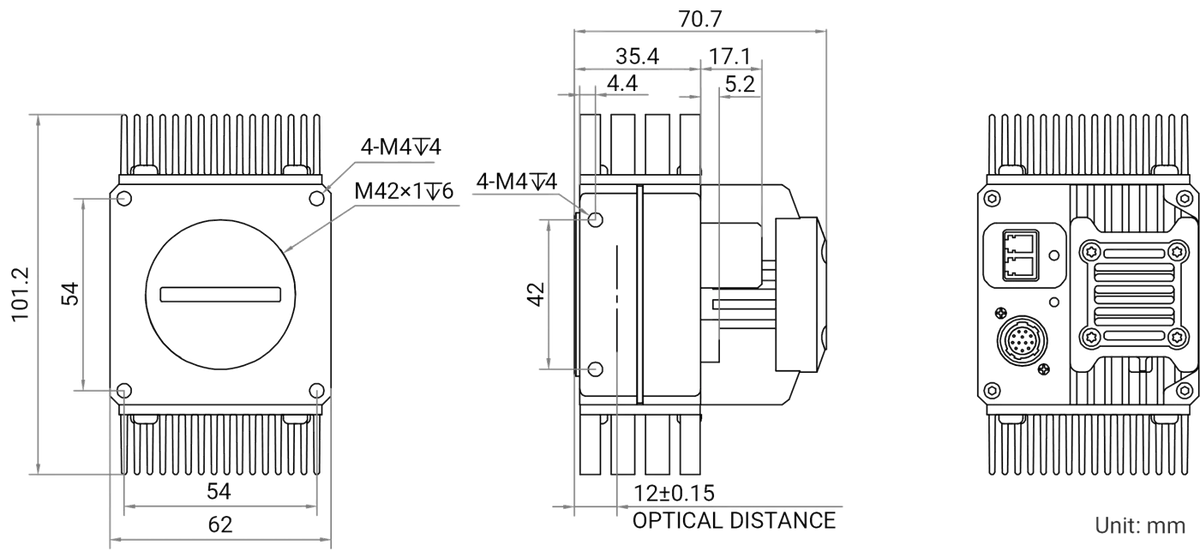

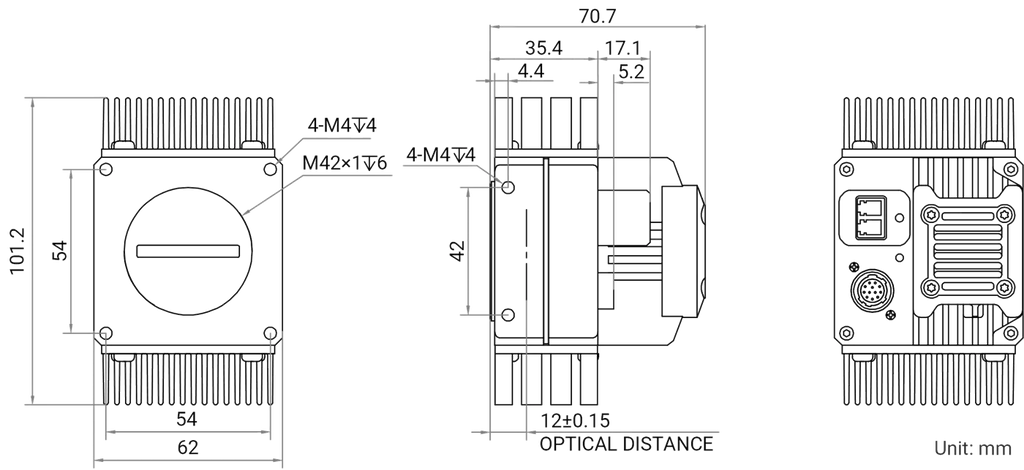

Dimension	101.2 mm × 62 mm × 70.7 mm (4.0" × 2.4" × 2.8")
Weight	Approx. 300 g (0.7 lb.)
Shipping weight (estimated)	0.52 kg

Downloads

Features

Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
Provides one XoF fiber port, and supports multiple exposure and acquisition methods with max. line rate of 195 kHz.
Adopts bi-directional configurable I/O hardware design.
Compact design and flexible installation.
Supports removable heat sink for compact installation in non-high-temperature environments.
