Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color
  • Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color
  • MV-CL083-91F2C(2.0) dimensions (mm)

Line scan cameras

Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color

Model MV-CL083-91F2C(2.0)Hikrobot

  • Resolution8192 × 3
  • SensorCMOS
  • Interface2LC fiber connector
  • Speed66.6 kHz
  • Lens mountM72
  • Mono / colourColor
$1,919.00

Ships in 2-3 weeks

0.94 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Line scan cameras

MV-CL083-91F2C(2.0): resolution 8192 x 3, max. line rate 66.6 kHz, data interface 2LC fiber connector, dynamic range 63.4 dB.

Hikrobot MV-CL083-91F2C(2.0) 8K7 XoF(2 SFP+) linescan camera, true-color. Adopts multiple ISP like Gamma, flat field correction, LUT, black level offset, etc. Provides 20G fiber port to transmit data with max. line rate of 66.6 kHz.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CL083-91F2C(2.0)
BrandHikrobot
Image modeSupports 1-Line
CompatibilitySelf-developed protocol, GenICam

Sensor and imaging

Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution8192 × 3
Max. line rate66.6 kHz
Dynamic range63.4 dB
SNR40.8 dB
Gain1.0 ×
Exposure time3 μs to 10 ms
Mono/colorColor
Exposure modeOff/Once/Continuous exposure mode, and supports trigger-width exposure
Pixel formatMono 8/12, RGB 8, BGR 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output

Interfaces and I/O

Data interface2LC fiber connector
Digital I/O12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Client softwareMVS

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 50 °C (–4 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11

Electrical

Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Power supply12 VDC to 24 VDC
Power consumptionTyp. 14 W @ 24 VDC

Mechanical

Lens mountM72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3")
WeightApprox. 600 g (1.3 lb.)
Shipping weight (estimated)0.94 kg

Engineering data

Field of view and resolution with the MV-CL083-91F2C(2.0)

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area57.3 mm
Lens image circle needed≥ Ø 57.3 mmM72
Pixel pitch7 µm8192 x 3 px
With a 60 mm lens at 500 mm478 mm0.058 mm per pixel
Max. line rate66.6 kHz
Dynamic range63.4 dB
SNR40.8 dB
Power consumption14 Wtyp. at 24 V DC
Exposure range3 µs to 10 ms
Weight600 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
35 mm491 mm0.06 mm per pixel819 mm0.1 mm per pixel1637 mm0.2 mm per pixel
50 mm344 mm0.042 mm per pixel573 mm0.07 mm per pixel1146 mm0.14 mm per pixel
60 mm286 mm0.035 mm per pixel478 mm0.058 mm per pixel955 mm0.117 mm per pixel
85 mm202 mm0.025 mm per pixel337 mm0.041 mm per pixel674 mm0.082 mm per pixel
100 mm172 mm0.021 mm per pixel286 mm0.035 mm per pixel573 mm0.07 mm per pixel
150 mm115 mm0.014 mm per pixel191 mm0.023 mm per pixel382 mm0.047 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

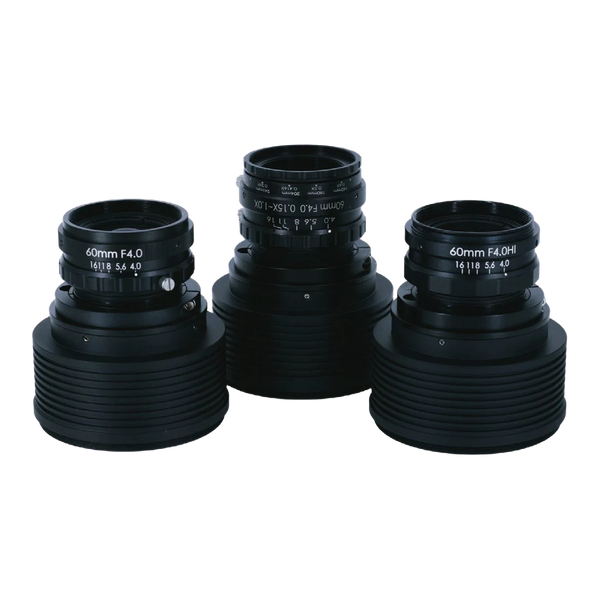

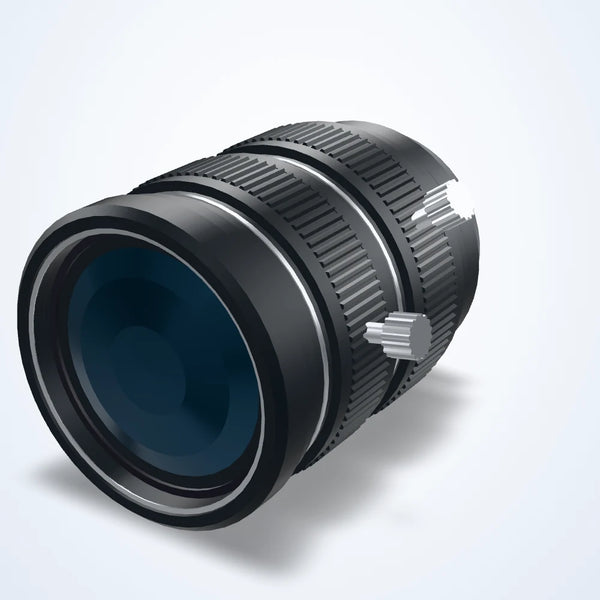

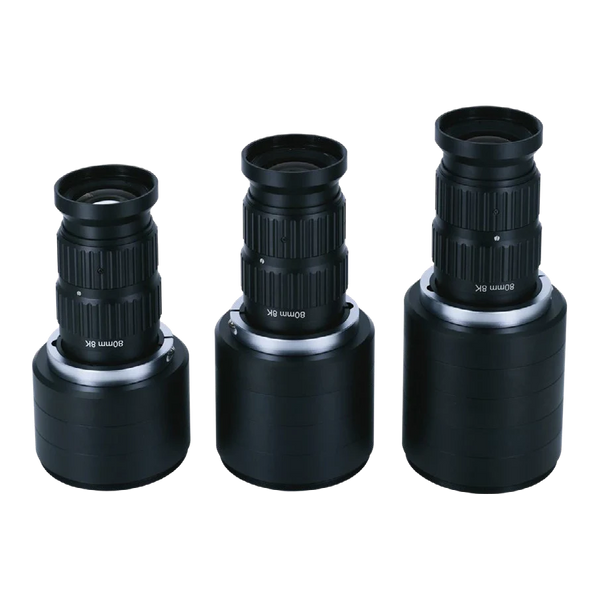

Lenses for this M72 camera

Covers up to 60 mm diagonal; this camera's sensor is 57.3 mm

Covers up to 60 mm diagonal; this camera's sensor is 57.3 mm

Covers up to 60 mm diagonal; this camera's sensor is 57.3 mm

Covers up to 60 mm diagonal; this camera's sensor is 57.3 mm

Covers up to 62 mm diagonal; this camera's sensor is 57.3 mm

Covers up to 82 mm diagonal; this camera's sensor is 57.3 mm

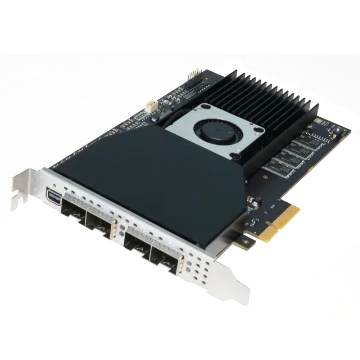

Cables and frame grabbers
