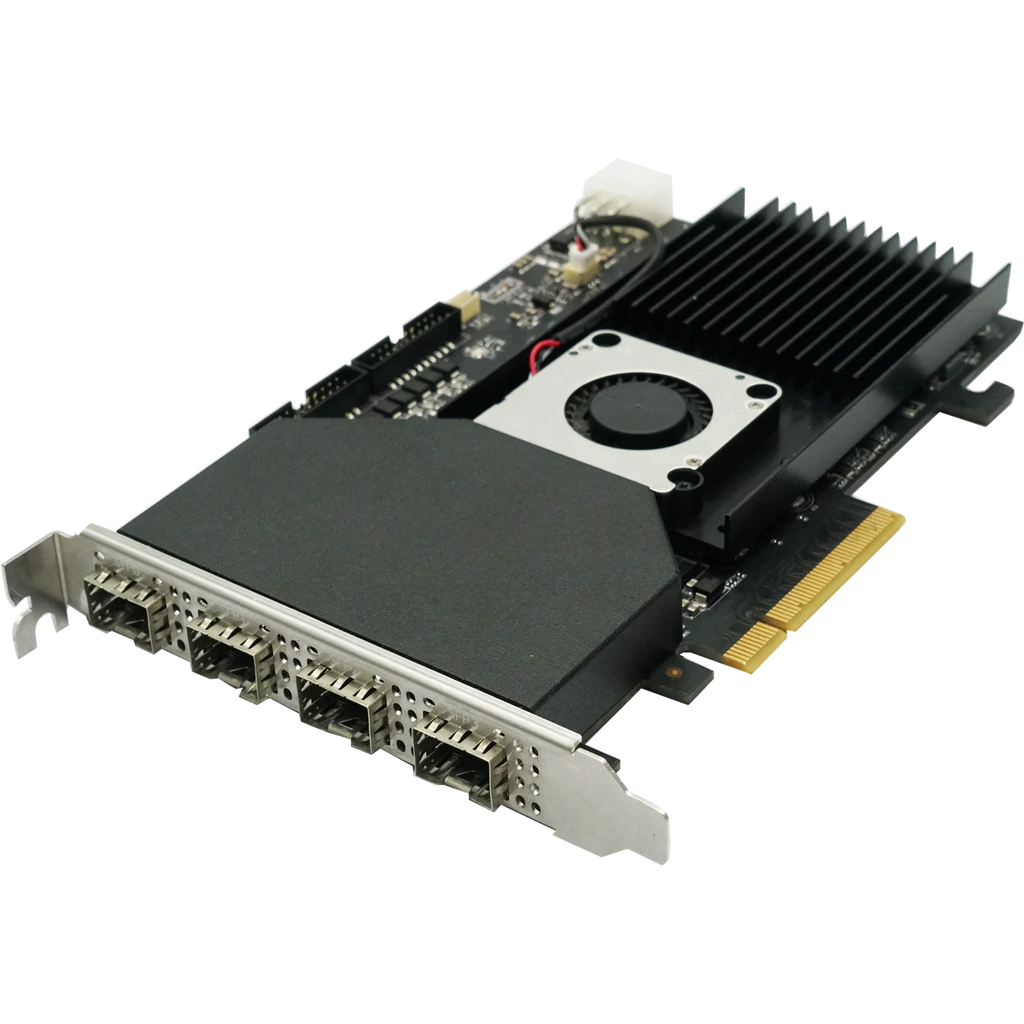

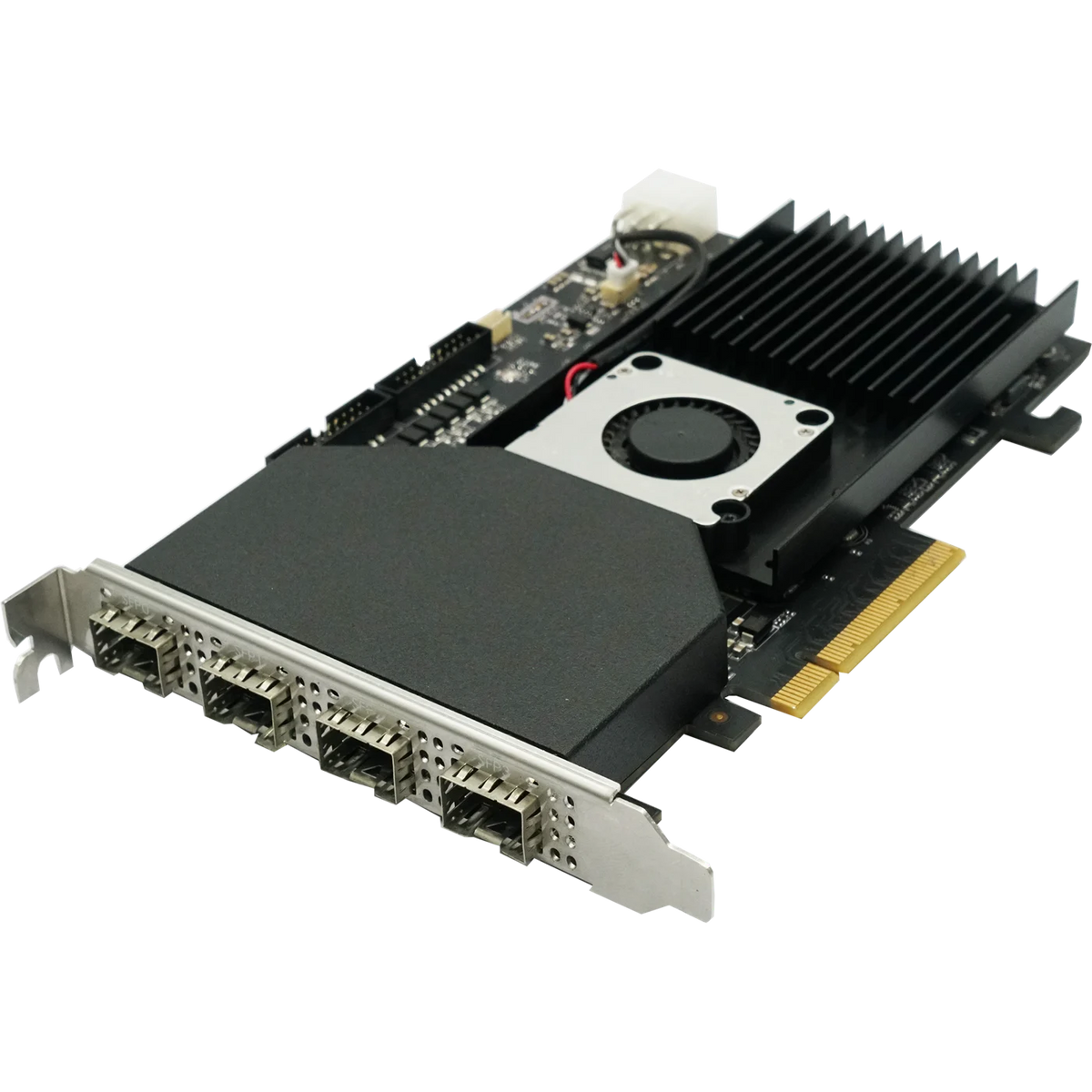

Hikrobot MV-GS1004 Quad 10Gbps SFP Frame Grabber
Model MV-GS1004Hikrobot
- InterfacePCI-E gen2 × 8
- Ports4 ports
- On-board memory2 GB DDR3-RAM
- Camera type supported10 GigE industrial camera
$2,059.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GS1004 Quad 10Gbps SFP Frame Grabber. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Various indicators indicate frame grabber status in real time.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GS1004 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 8 |
| Indicator | 1 |
| Standard | GigE Vision V2.0 |
| Camera type supported | 10 GigE industrial camera |
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Jumbo frame | 9 KB |
Sensor and imaging
| Pixel format | Mono 8/10/10p/12/12p; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed |
|---|
Interfaces and I/O
| Interface | SFP × 4 |
|---|---|
| I/O Type | Provides 24 I/O connectors, including opto-isolated input × 4 (4.5 VDC to 28 VDC), opto-isolated output × 4 (4.5 VDC to 28 VDC), RX422 input × 4, TX422 output × 4, TTL input × 4, and TTL output × 4 |
| Connector | Female header |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Computing
| On-board memory | 2 GB DDR3-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power consumption | Typ. 20 W |
|---|
Mechanical
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Shipping weight (estimated) | 0.38 kg |
