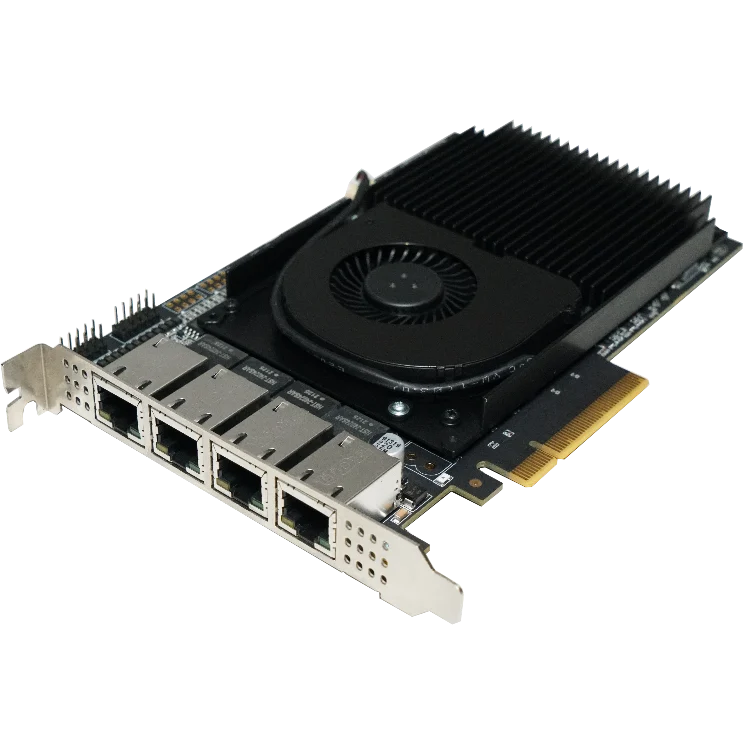

Hikrobot MV-GT1004 Quad 10GigE Frame Grabbers
Model MV-GT1004Hikrobot
- InterfacePCI-E gen2 × 8
- Ports4 ports
- On-board memory2 GB DDR3-RAM
- Camera connection speed10 Gbps
$2,339.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GT1004 Quad 10GigE Frame Grabbers. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Supports data packet resending, event control, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GT1004 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 8 |
| Indicator | 1 |
| Standard | GigE Vision V2.0 |
| Camera type supported | GigE industrial camera and 10 GigE industrial camera |
| Camera quantity supported | 4 at most (total bandwidth up to 27 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 4 |
| Stream indicator | 4 pairs |
| Jumbo frame | 9 KB |
Sensor and imaging
| Pixel format | Mono 8/10/10p/12/12p/16; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
|---|
Interfaces and I/O
| Interface | RJ45 × 4 |
|---|---|
| I/O Type | Configurable input/output × 8, compatible with single-ended/differential; Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output; Line 2/3 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Connector | 9-pin header |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC, RoHS |
Computing
| On-board memory | 2 GB DDR3-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu18.04 to 22.04 on Linux |
Electrical
| Power consumption | Typ. 24 W |
|---|
Mechanical
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.4 mm (7.1" × 5.0" × 0.8") |
| Shipping weight (estimated) | 0.38 kg |
