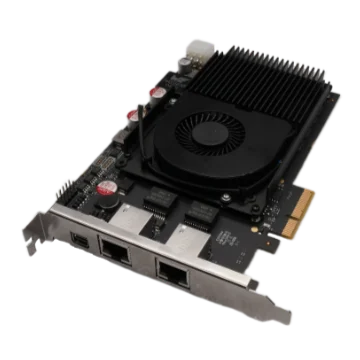

Hikrobot MV-GT1102P Dual 10GigE Frame Grabbers
Model MV-GT1102PHikrobot
- InterfacePCI-E gen3 × 4, PCI-E gen3 × 8
- Ports2 ports
- On-board memory2 GB DDR4-RAM, 4 GB DDR4-RAM
- Bus indicator1
$2,029.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GT1102P Dual 10GigE Frame Grabbers. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Supports PCI-E gen3 × 8 bus interface and the max. bus bandwidth of 40 Gbps.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GT1102P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 4, PCI-E gen3 × 8 |
| Bus indicator | 1 |
| Standard | GigE Vision V2.0 |
| Camera type supported | GigE industrial camera, 10 GigE industrial camera, and 2.5 GigE industrial camera |
| Camera quantity supported | 2 at most (total bandwidth up to 20 Gbps), 4 at most (total bandwidth up to 40 Gbps) |
| Camera connection speed | 10 Gbps |
| Stream | 2, 4 |
| Stream indicator | 2 pairs, 4 pairs |
| Jumbo frame | 9 KB |
Sensor and imaging
| Pixel format | Mono 8/10/10p/12/12p/16; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
|---|
Interfaces and I/O
| Interface | RJ45 × 2, supports PoE, RJ45 × 4, supports PoE |
|---|---|
| I/O Type | Configurable input/output × 6, compatible with single-ended/differential, and supports cascading of multiple frame grabbers; I/O on bracket: Line 0/1/2/3 supports 3.3 VDC to 24 VDC input, and 3.3 VDC output, N-terminal reference voltage is adjustable simultaneously; I/O on PCB: Line 4/5 supports 3.3 VDC to 24 VDC input and 3.3 VDC output |
| Connector | I/O on bracket: Mini-DP, female, 20-pin; I/O on PCB: 9-pin header (2.54 mm pitch, 2 x 5, 10 pin blind holes) |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC, RoHS |
Computing
| On-board memory | 2 GB DDR4-RAM, 4 GB DDR4-RAM |
|---|---|
| Operating system | Windows 7/10/11 |
Electrical
| Power consumption | Typ. 21.1 W, Typ. 28.5 W |
|---|
Mechanical
| Delivery bandwidth | 7000 MB/s (max. transmission bandwidth); 6750 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 22.4 mm (7.1" × 5.0" × 0.9") |
| Shipping weight (estimated) | 0.38 kg |
