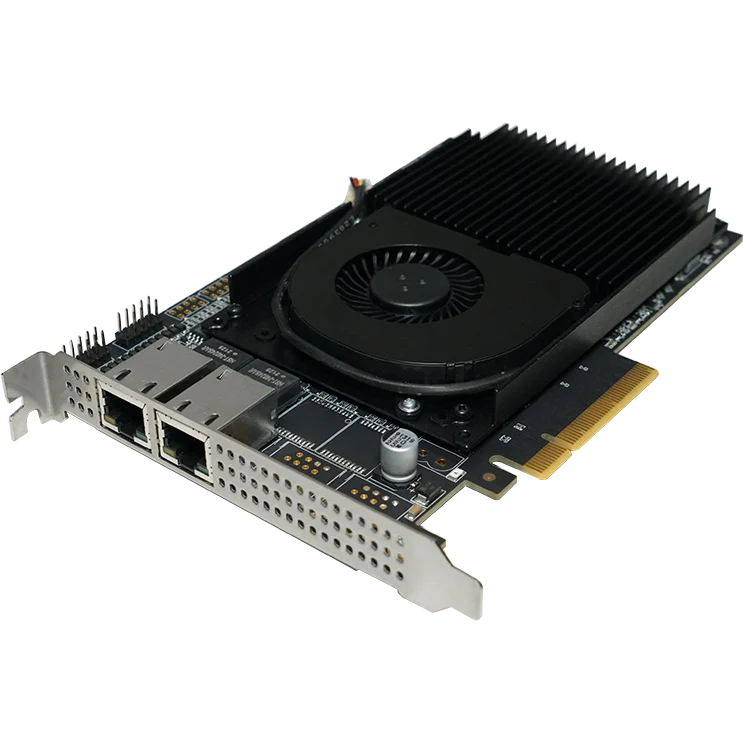

Hikrobot MV-GT1002 Double 10GigE Frame Grabbers

Model MV-GT1002Hikrobot

InterfacePCI-E gen2 × 8
Ports2 ports
On-board memory2 GB DDR3-RAM
Camera connection speed10 Gbps

$1,729.00

Ships in 2-3 weeks

0.38 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-GT1002 Double 10GigE Frame Grabbers. Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed. Supports data packet resending, event control, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-GT1002
Brand	Hikrobot
Interconnect	PCI-E gen2 × 8
Indicator	1
Standard	GigE Vision V2.0
Camera type supported	GigE industrial camera and 10 GigE industrial camera
Camera quantity supported	2 at most
Camera connection speed	10 Gbps
Stream	2
Stream indicator	2 pairs
Jumbo frame	9 KB

Sensor and imaging

Pixel format	Mono 8/10/10p/12/12p/16; Bayer 8/10/10p/12/12p; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8

Interfaces and I/O

Interface	RJ45 × 2
I/O Type	Configurable input/output × 8, compatible with single-ended/differential; Line 0/1/4/5/6/7 supports 3.3 VDC to 12 VDC input, and 3.3 VDC output; Line 2/3 supports 3.3 VDC to 24 VDC input and 3.3 VDC output
Connector	9-pin header
Client software	MVS

Environment and compliance

Temperature	Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F)
Humidity	10% RH to 95% RH (no condensation)
Certification	CE, KC, RoHS

Computing

On-board memory	2 GB DDR3-RAM
Operating system	Windows 7/10/11, Ubuntu18.04 to 22.04 on Linux

Electrical

Power consumption	Typ. 19.2 W

Mechanical

Delivery bandwidth	3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth)
Dimension	181 mm × 126.3 mm × 21.4 mm (7.1" × 5.0" × 0.8")
Shipping weight (estimated)	0.38 kg

Downloads

Features

Supports GigE Vision V2.0 protocol with each channel accessing up to 10 Gbps data transfer speed.
Supports data packet resending, event control, etc.
Various indicators indicate frame grabber status in real time.
Adopts multiple I/O connectors for input and output.
Provides SDK for secondary development.
Complies with Genlcam standard.
