Line scan cameras

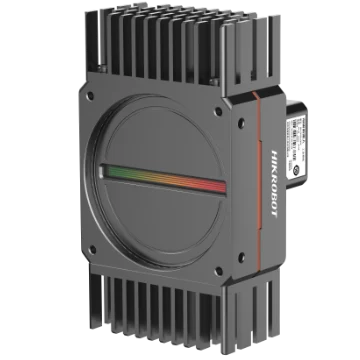

CL Series XoFLink Line Scan Cameras
- 22 models
- from $649.00
- Series HIK-CL-XOF
The CL Series XoFLink Line Scan Cameras is a range of 22 line scan cameras from Hikrobot, from $649.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- XoFLink, Color, XoFLink, Mono, 4K, XoFLink, Color, 4K, XoFLink, Mono, 8K, XoFLink, Color, 8K, XoFLink, Mono, 16K, XoFLink, Color, 16K, XoFLink, Mono
- Interface
- XoFLink
- Line length
- 4K, 8K, 16K
- Colour
- Color, Mono
- Pixel size
- 3.5 μm, 5 μm, 7 μm
- Image circle
- 29 mm, 57 mm, 82 mm
- Lens mount
- M42, M72, F-mount
Features
- Rich ISP image processing, including manual gamma correction, flat-field correction, LUT and black level adjustment
- RGB true-color imaging with flexible exposure and acquisition modes
- Dual-channel XoF fiber ports for high-bandwidth transmission, line rates up to 66.6 kHz
- Bidirectional configurable I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Dual-channel XoF fiber ports for high-bandwidth transmission
- Flexible exposure and acquisition modes, 2-TDI support and line rates up to 200 kHz
- Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
All 22 models in the CL Series XoFLink Line Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| MV-8KF2C-CR | XoFLink, Color | 8192×3 | 2LC fiber port | 7 μm | $649.00 | View |
| MV-8KF2M-CR | XoFLink, Mono | 8192×2 | 2LC fiber port | 7 μm | $649.00 | View |
| MV-CLD82-9ZF2M | XoFLink, Mono | 8192×2 | 2LC fiber port | 7 μm | $649.00 | View |
| MV-CL042-91FM | 4K, XoFLink, Mono | 4096 × 2 | LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL042-91FC | 4K, XoFLink, Color | 4096 × 2 | LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL082-91F2M(2.0) | 8K, XoFLink, Mono | 8192 × 2 | 2LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL082-91F1M(2.0) | 8K, XoFLink, Mono | 8192 × 2 | LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL083-91F2C(2.0) | 8K, XoFLink, Color | 8192 × 3 | 2LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL084-91F2M(2.0) | 8K, XoFLink, Mono | 8192 × 4 | 2LC fiber connector | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL083-B0F2C | XoFLink, Color | 8192 × 3 | 2LC fiber interface | 7 μm × 7 μm | $1,919.00 | View |
| MV-CL162-91F2M(2.0) | 16K, XoFLink, Mono | 16384 × 2 | 2LC fiber connector | 3.5 μm × 3.5 μm | $1,919.00 | View |
| MV-CL166-91F2C | 16K, XoFLink, Color | 16384 × 12 | 2LC fiber connector | 5 μm × 5 μm | $1,919.00 | View |
| MV-CL082-91F2M | 8K, XoFLink, Mono | 8192×2 | 2LC fiber port | 7 μm | $1,919.00quote | View |
| MV-CL162-91F2M (V2.0) | 16K, XoFLink, Mono | 16384 × 2 | 2LC fiber port | 3.5 μm | $1,919.00 | View |
| MV-CL083-91F2C(V2.0) | 8K, XoFLink, Color | 8192×3 | 2LC fiber port | 7 μm | $1,919.00 | View |
| MV-CL082-91F2M(V2.0) | 8K, XoFLink, Mono | 8192×2 | 2LC fiber port | 7 μm | $1,919.00 | View |
| MV-CL082-91F1M(V2.0) | 8K, XoFLink, Mono | 8192×2 | LC fiber port | 7 μm | $1,919.00 | View |
| MV-CL162-91F1M (V2.0) | 16K, XoFLink, Mono | 16384 × 2 | LC fiber port | 3.5 μm | $1,919.00 | View |
| MV-CL16K5-110F2M | 16K, XoFLink, Mono | 16384 × 4 | 2LC fiber port | 5 μm × 5 μm | $1,919.00 | View |
| MV-CL16K5-40F2C-PRO | 16K, XoFLink, Color | 16384 × 12 | 2LC fiber port | 5 μm × 5 μm | $1,919.00 | View |
| MV-CL08B-10KF1M(V2.0) | XoFLink, Mono | 8192×2 | LC fiber port | 7 μm | $1,919.00 | View |
| MV-CL081-B0F2M | 8K, XoFLink, Mono | 8192 × 1 | 2LC fiber connnector | 7 μm × 7 μm | $2,679.00quote | View |
