Line scan cameras

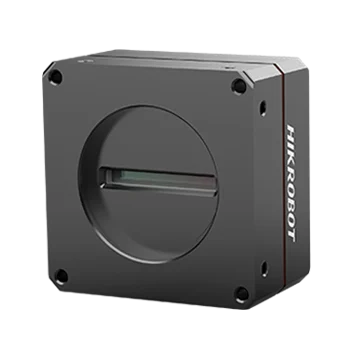

CL Series Camera Link Line Scan Cameras
- 9 models
- from $649.00
- Series HIK-CL-CL
The CL Series Camera Link Line Scan Cameras is a range of 9 line scan cameras from Hikrobot, from $649.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- Camera Link, Color, 4K, Camera Link, Color, 4K, Camera Link, Mono, 8K, Camera Link, Color, 8K, Camera Link, Mono, 16K, Camera Link, Mono
- Interface
- Camera Link
- Line length
- 4K, 8K, 16K
- Colour
- Color, Mono
- Pixel size
- 3.5 μm, 7 μm
- Image circle
- 29 mm, 57 mm
- Lens mount
- M42, M72
Features
- Rich ISP processing with manual gamma correction, flat-field correction, LUT and black level adjustment
- Flexible exposure and acquisition modes, line rate up to 100 kHz
- Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
- Compact design with mounting holes on front and side panels for flexible installation
- Compatible with Camera Link and the GenICam standard
- Supports multiple exposure and image acquisition methods with max. line rate of 100 kHz.
- Applies multiple ISP technologies and supports manual adjustment for Gamma correction, PRNUC correction, LUT, black level, etc.
- Supports bi-directional I/O wiring for flexible input/output settings.
All 9 models in the CL Series Camera Link Line Scan Cameras
| Link | ||||||
|---|---|---|---|---|---|---|
| HIK-XS4K-042C | Camera Link, Color | 4096 × 2 | 7 μm | Color | $649.00 | View |
| MV-CL042-91CM | 4K, Camera Link, Mono | 4096 × 2 | 7 μm | Mono | $1,919.00 | View |
| MV-CL042-91CC | 4K, Camera Link, Color | 4096 × 2 | 7 μm | Color | $1,919.00 | View |
| MV-CL042-91CM-V2 | 4K, Camera Link, Mono | 4096 × 2 | 7 μm | Mono | $1,919.00 | View |
| MV-CL081-41CM | 8K, Camera Link, Mono | 8192 × 1 | 7 μm | Mono | $2,679.00quote | View |
| MV-CL082-92CM(V2.0) | 8K, Camera Link, Mono | 8192 × 2 | 7 μm | Mono | $2,679.00quote | View |
| MV-CL083-92CC(V2.0) | 8K, Camera Link, Color | 8192 × 3 | 7 μm × 7 μm | Color | $2,679.00quote | View |
| MV-CL162-91CM(V2.0) | 16K, Camera Link, Mono | 16384 × 2 | 3.5 μm × 3.5 μm | Mono | $2,679.00quote | View |
| MV-CL161-41CM | 16K, Camera Link, Mono | 16384 × 1 | 3.5 μm | Mono | $4,689.00quote | View |
