Line scan cameras

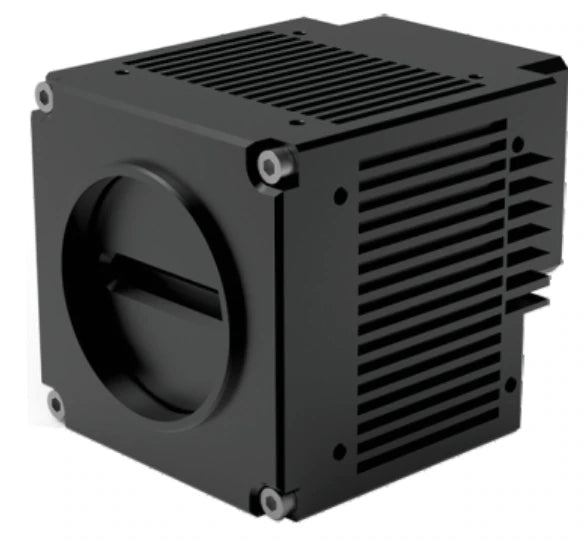

10 GigE line scan camera, 256 MT (LS-LCM-S17) series
- 3 models
- from $1,439.00
- Series LS-LCM-S17
The 10 GigE line scan camera, 256 MT (LS-LCM-S17) series is a range of 3 line scan cameras from LumaSpec Vision, from $1,439.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4K, 10GigE, Mono, 8K, 10GigE, Mono, 16K, 10GigE, Mono
- Interface
- 10GigE
- Shutter
- Global
- Colour
- Mono
- Lens mount
- M42, M58, M90
- Line length
- 4K, 8K, 16K
- Sensor format
- 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- 5um pixel, 10 GigE interface
- 256-stage TDI, reducing the demand on the light source
- Sensor line frequency up to 250k/200k (sensor output pixel width 10bits/12bits)
- Supports 256-line area array focusing mode
- Gain and Offset programmable settings, flat-field correction supported
- Encoder synchronous trigger, photoelectric sensor and encoder combination trigger modes
All 3 models in the 10 GigE line scan camera, 256 MT (LS-LCM-S17) series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LCM-0111 | 4K, 10GigE, Mono | 4096×256 | M42, flange distance 12mm | 21.177mm (photosensitive area) | $1,439.00 | View |
| LS-LCM-0112 | 8K, 10GigE, Mono | 8192×256 | M58, flange distance 12mm | 41.673mm (photosensitive area) | $1,439.00 | View |
| LS-LCM-0113 | 16K, 10GigE, Mono | 16384×256 | M90, flange distance 12mm | 82.666mm (photosensitive area) | $1,439.00 | View |
