Line scan cameras

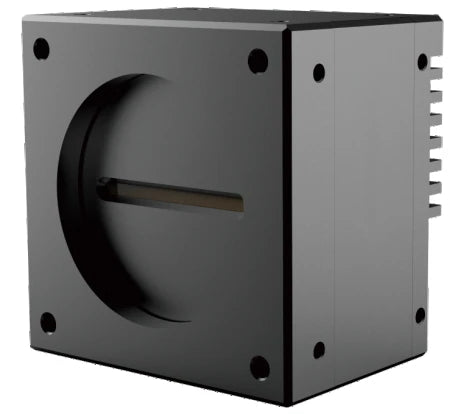

GigE line scan camera (LS-LCM-S15 / LS-LCM-S15 ...-GE)
- 6 models
- from $1,099.00
- Series LS-LCM-S15
The GigE line scan camera (LS-LCM-S15 / LS-LCM-S15 ...-GE) is a range of 6 line scan cameras from LumaSpec Vision, from $1,099.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 4K, GigE, 4K, GigE, Color, 4K, GigE, Mono, 8K, GigE, Mono
- Interface
- GigE
- Shutter
- Global
- Colour
- Color, Mono
- Lens mount
- M42, M72
- Line length
- 4K, 8K
- Sensor format
- 4/3" - APS-C, Medium / large
Features
- Line rate up to 48K, freely set in software; color line scan camera supports RGB three-line true color output
- Supports sensor hardware 2-line SUM, multiplying brightness and reducing light source requirements
- Multiple trigger modes such as encoder synchronous triggering and photoelectric sensor + encoder combined synchronous triggering
- Supports frequency division and frequency doubling of the encoder signal to match the motion platform accurately
- Hardware ISP supports gamma, contrast, lens shading correction and more
- Gigabit Ethernet port, maximum transmission distance 100 meters
- Software free configuration.
- Hardware ISP supports Gamma,contrast,lens shadow correction and more.
Typical uses
- Logistics
- Metallurgy
- Food
- Pharmaceutical
- Material sorting
All 6 models in the GigE line scan camera (LS-LCM-S15 / LS-LCM-S15 ...-GE)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LCM-0076 | 4K, GigE, Mono | 4096×2 | 27.5K | 28.6mm | $1,099.00 | View |
| LS-LCM-0078 | 4K, GigE, Mono | 4096×2 | 27.5K | 28.6mm (photosensitive region) | $1,099.00 | View |
| LS-LCM-0079 | 4K, GigE, Color | Color: 4096×6 | Color: 9.2K, 27.5K | 28.6mm (photosensitive region) | $1,099.00 | View |
| LS-LCM-0080 | 4K, GigE, Mono | 4096×8 | Mono: 27.5K | 28.6mm (photosensitive region) | $1,099.00 | View |
| LS-LCM-0075 | 4K, GigE | $1,099.00 | View | |||
| LS-LCM-0077 | 8K, GigE, Mono | 8192X4 | 30K | 57.344mm | $1,129.00 | View |
