Line scan cameras

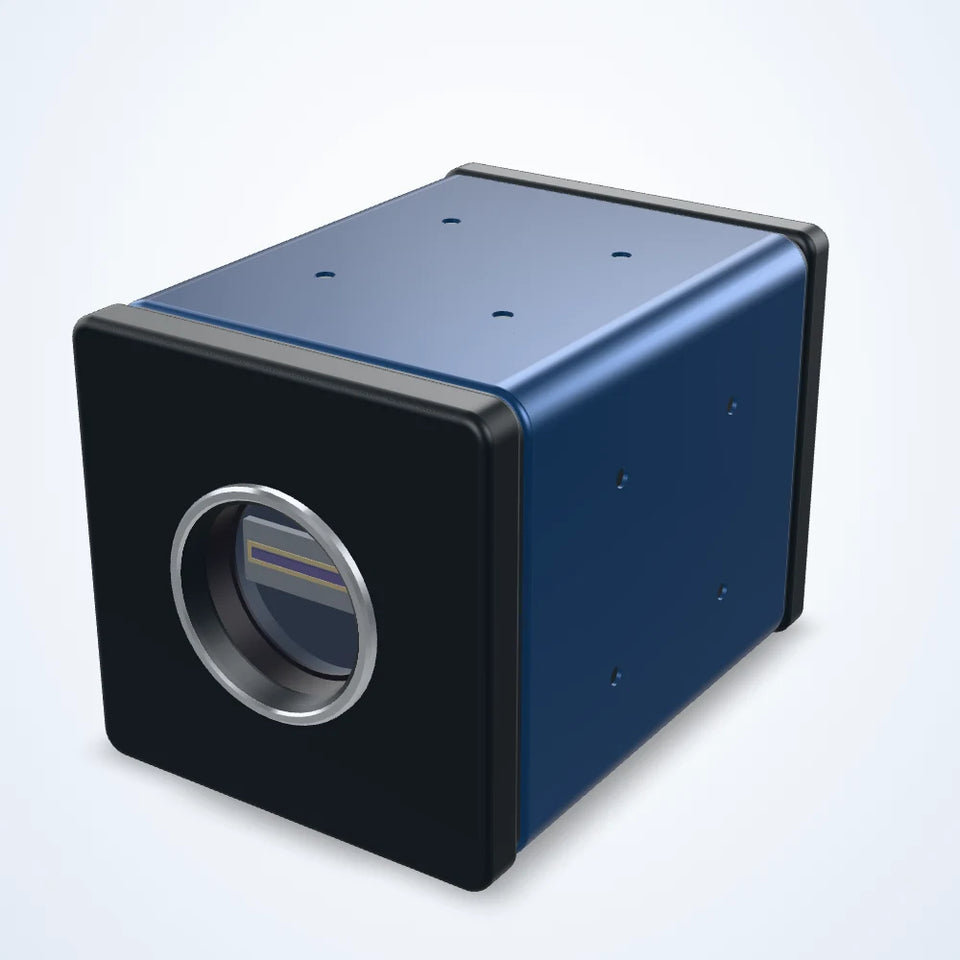

GigE line scan cameras (LS-LCM-S02)
- 15 models
- from $860.00
- Series LS-LCM-S02
The GigE line scan cameras (LS-LCM-S02) is a range of 15 line scan cameras from LumaSpec Vision, from $860.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 2K, GigE, Color, 2K, GigE, Mono, 2K, GigE, Mono, TDI mode, 4K, GigE, Color, 4K, GigE, Mono, 4K, GigE, Mono/Color, 8K, GigE, Mono
- Interface
- GigE
- Colour
- Color, Mono, Mono, TDI mode
- Lens mount
- M42, M72, C-mount
- Line length
- 2K, 4K, 8K
- Pixel size
- 4 μm, 7 μm, 12 μm, 14 μm
Features
- Power over Ethernet: power and data on one cable
- GigE Vision / GenICam compatible software interface
All 15 models in the GigE line scan cameras (LS-LCM-S02)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LCM-0010 | 2K, GigE, Color | 2048×3 | 7 μm | C | Price on request | View |
| LS-LCM-0009 | 2K, GigE, Mono | 2048×2 | 4 μm | C | Price on request | View |
| LS-LCM-0019 | 2K, GigE, Mono | 2048×3 | 14 μm | M42 | Price on request | View |
| LS-LCM-0020 | 4K, GigE, Color | 4096x3 | 7 μm | M42 | Price on request | View |
| LS-LCM-0022 | 4K, GigE, Mono | 4096×4 | 7 μm | M42 | Price on request | View |
| LS-LCM-0016 | 2K, GigE, Mono, TDI mode | 2048 × 2 | 7 × 7 | M42*1.0, BFL 12 mm | $860.00 | View |
| LS-LCM-0011 | 2K, GigE, Color | 2048 × 2 | 14 × 14 | M42*1.0, BFL 12 mm | $950.00 | View |
| LS-LCM-0015 | 2K, GigE, Mono | 2048 × 1 | 14 × 14 | M42*1.0, BFL 12 mm | $950.00 | View |
| LS-LCM-0012 | 2K, GigE, Color | 2048 × 3 | 7 × 7 | C-Mount | $975.00 | View |
| LS-LCM-0013 | 2K, GigE, Mono | 2048 × 1 | 14 × 14 | M42*1 | $975.00 | View |
| LS-LCM-0014 | 2K, GigE, Color | 2048 × 2 | 14 × 14 | M42*1 | $975.00 | View |
| LS-LCM-0018 | 2K, GigE, Mono | 2048 ×4 | 7× 7 | C-Mount | $975.00 | View |
| LS-LCM-0021 | 4K, GigE, Mono/Color | 4096 x 2 | 12 bit | M42 | $990.00 | View |
| LS-LCM-0017 | 2K, GigE, Color | 2048 × 3 | 7 × 7 | M42*1.0, BFL 12 mm | $1,100.00 | View |
| LS-LCM-0023 | 8K, GigE, Mono | 8192×1 | 7× 7 | M72*0.75, BFL 12 mm | $1,550.00 | View |
