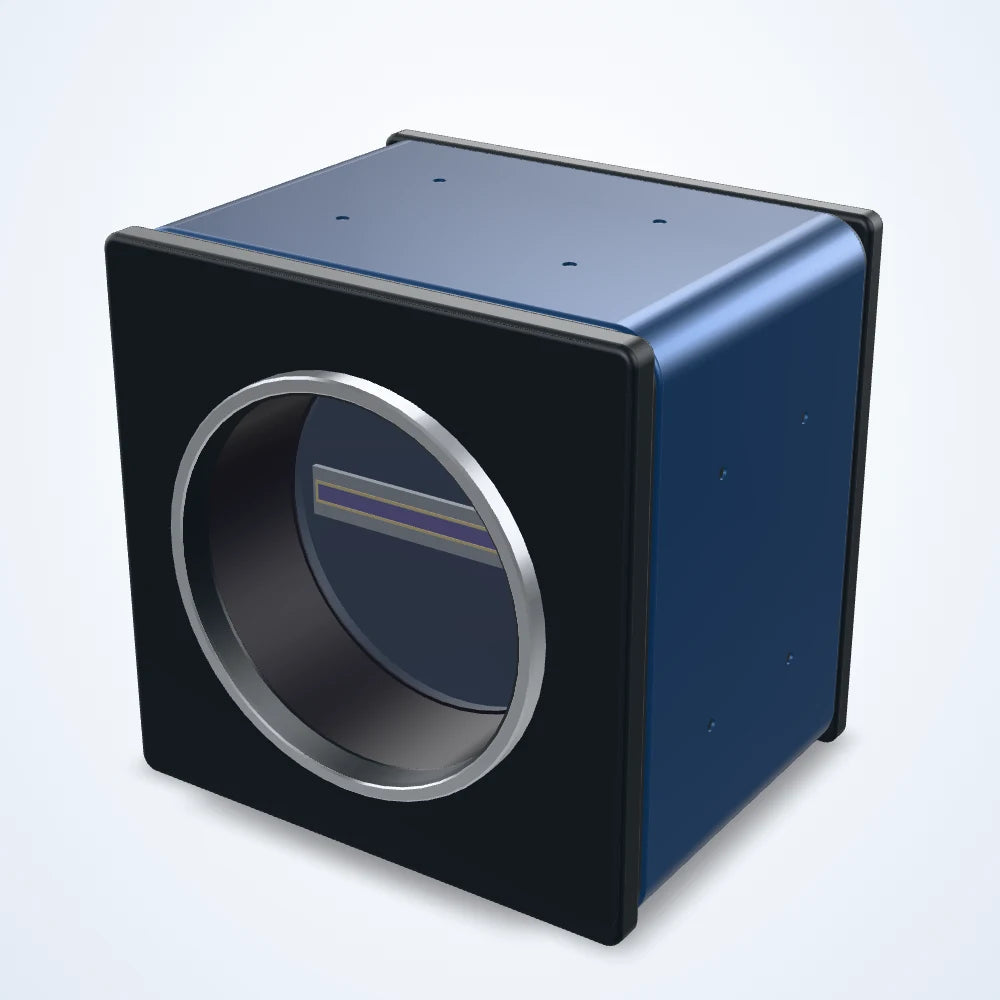

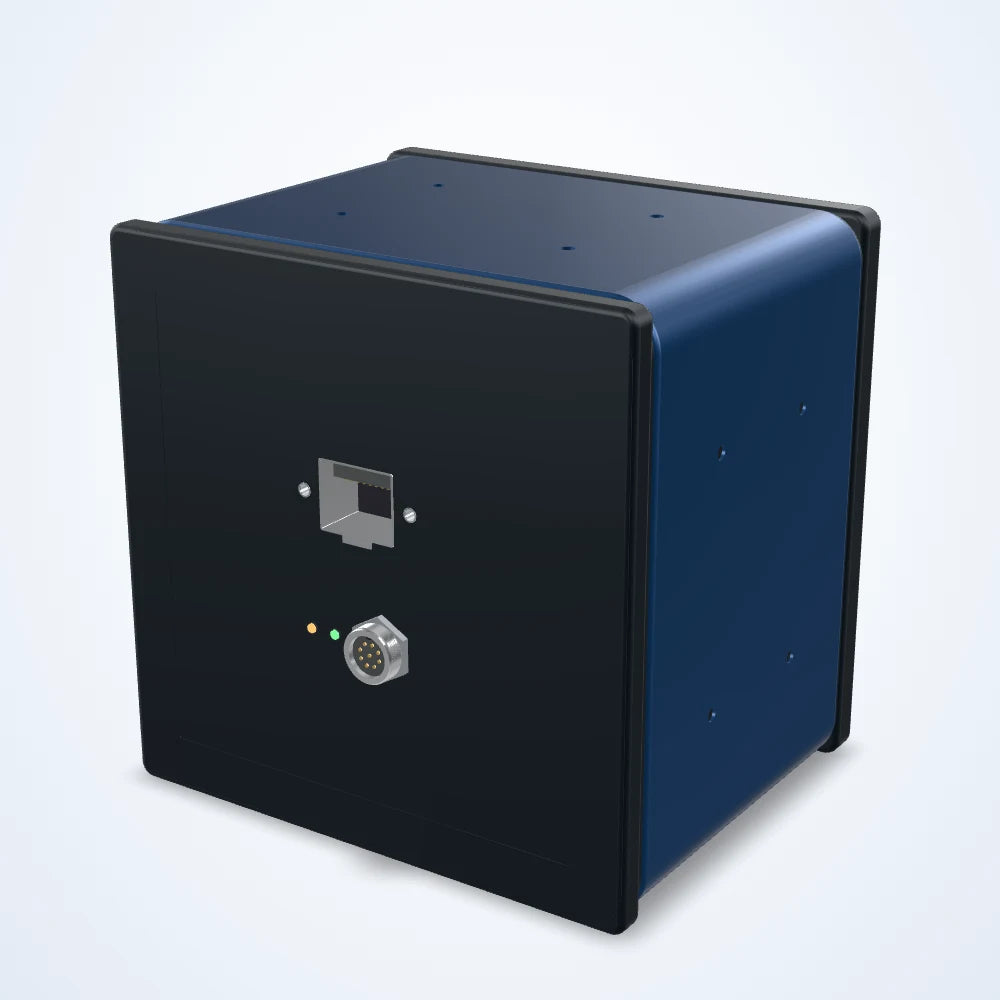

Rendered illustration: the actual product may differ in appearance.
Line scan cameras
8K GigE line scan camera, 7 μm, 13 kHz, M72 (LS-LCM-0023)
Model LS-LCM-0023
- Resolution8192×1
- SensorCMOS
- InterfaceGigE
- Speed13
- Lens mountM72
- Pixel size7× 7
$1,550.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan camera for continuous web, roll and conveyor inspection. 8192 x 1 pixels of 7 μm; line rate up to 13 kHz; GigE interface; M72 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0023 |
|---|
Sensor and imaging
| Resolution | 8192×1 |
|---|---|
| Pixel size | 7× 7 |
| Max. line rate | 13 |
| Pixel bit depth | 12 bit |
| Sensor type | CMOS |
| Pixel format | Mono8/10/10Packed/12/12Packed |
| SNR | 46.0 dB |
| Dynamic range | 66.0 dB |
| Exposure time | 8 μs~1s |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 12-pin Hirose connector provides power and I/O;2 differential/single-ended inputs, 2 differential/single-ended outputs, 1 differential/single-ended configurable input and output, 1 GPIO |
Environment and compliance
| Operating temperature | -30- 50°C(Operating), -30- 80°C(Storage) |
|---|---|
| Certification | GigE Vision / GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | DC12 V~24 V |
| Power consumption | 12 V @ ≈6 W |

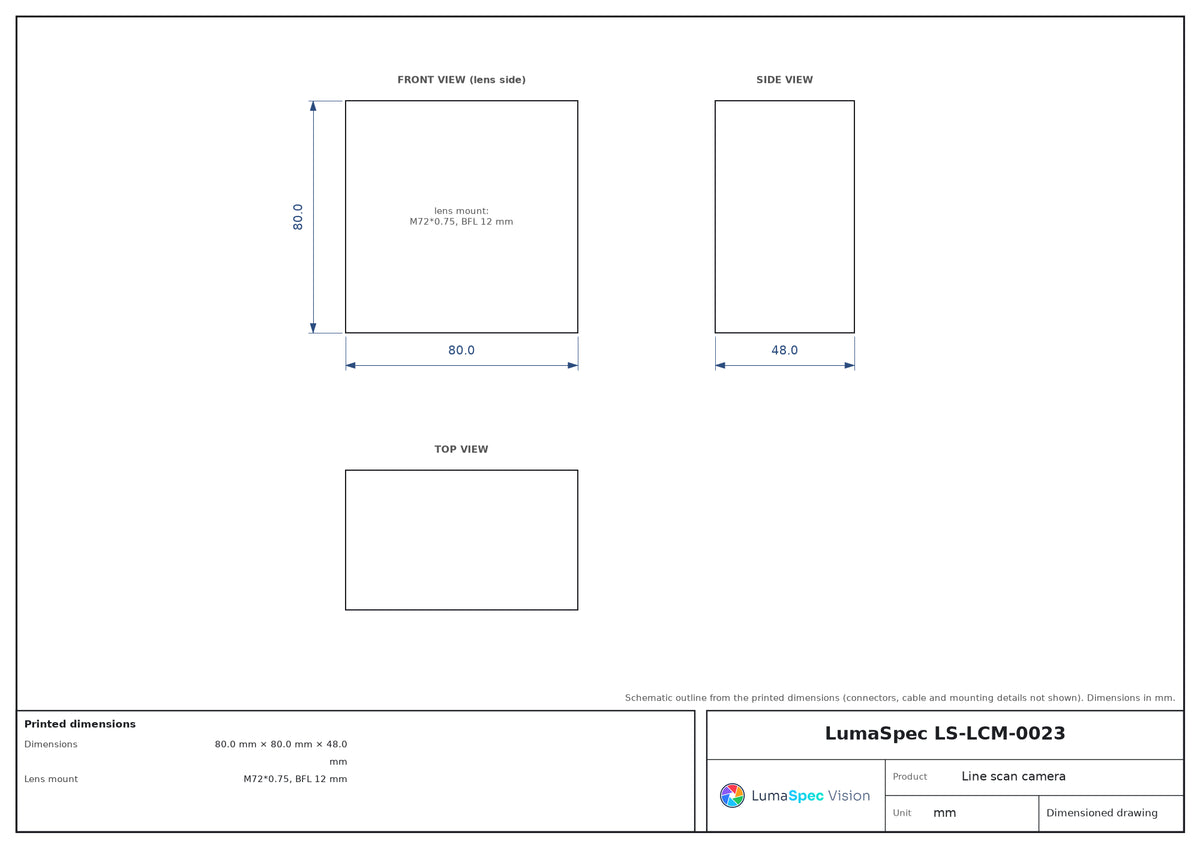

Mechanical
| Lens mount | M72*0.75, BFL 12 mm |
|---|---|
| Dimensions | 80.0 mm × 80.0 mm × 48.0 mm |
| Weight | 390g |
| Mounting holes | 4-M4X0.7-6H; 2-M2 |
