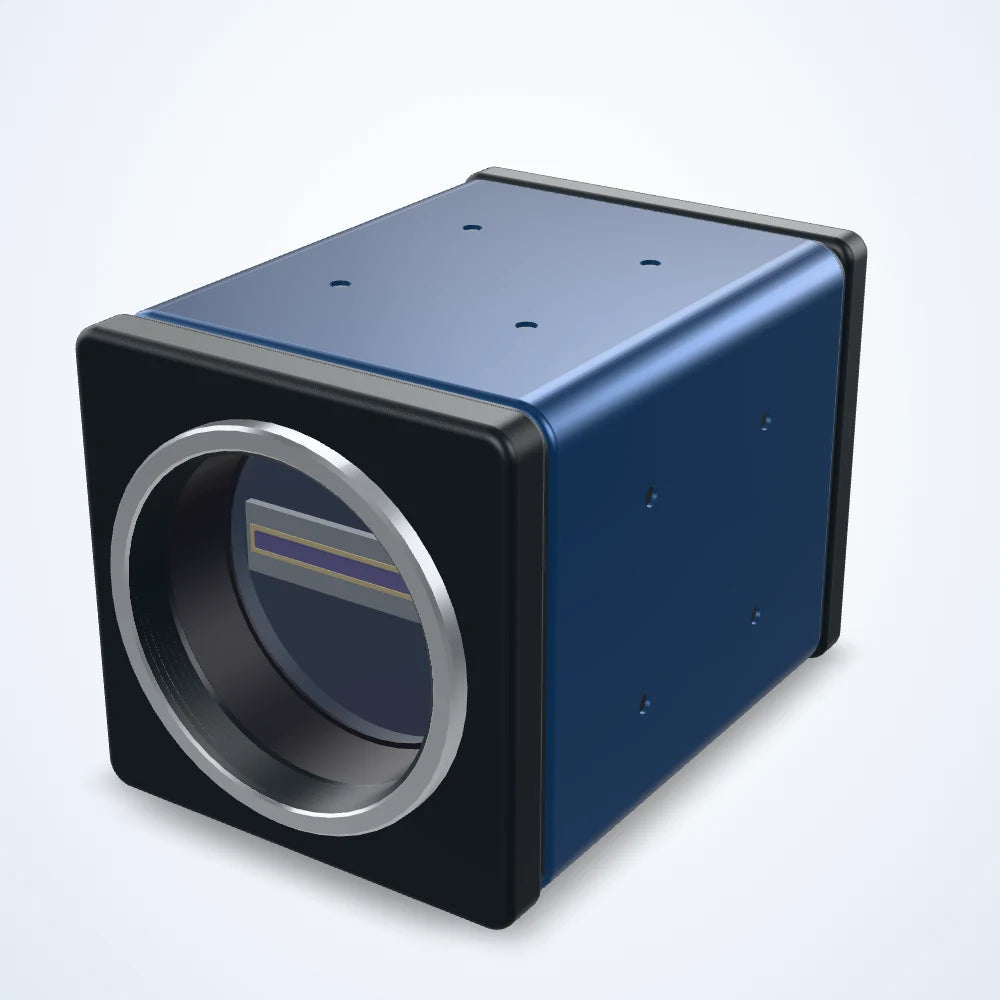

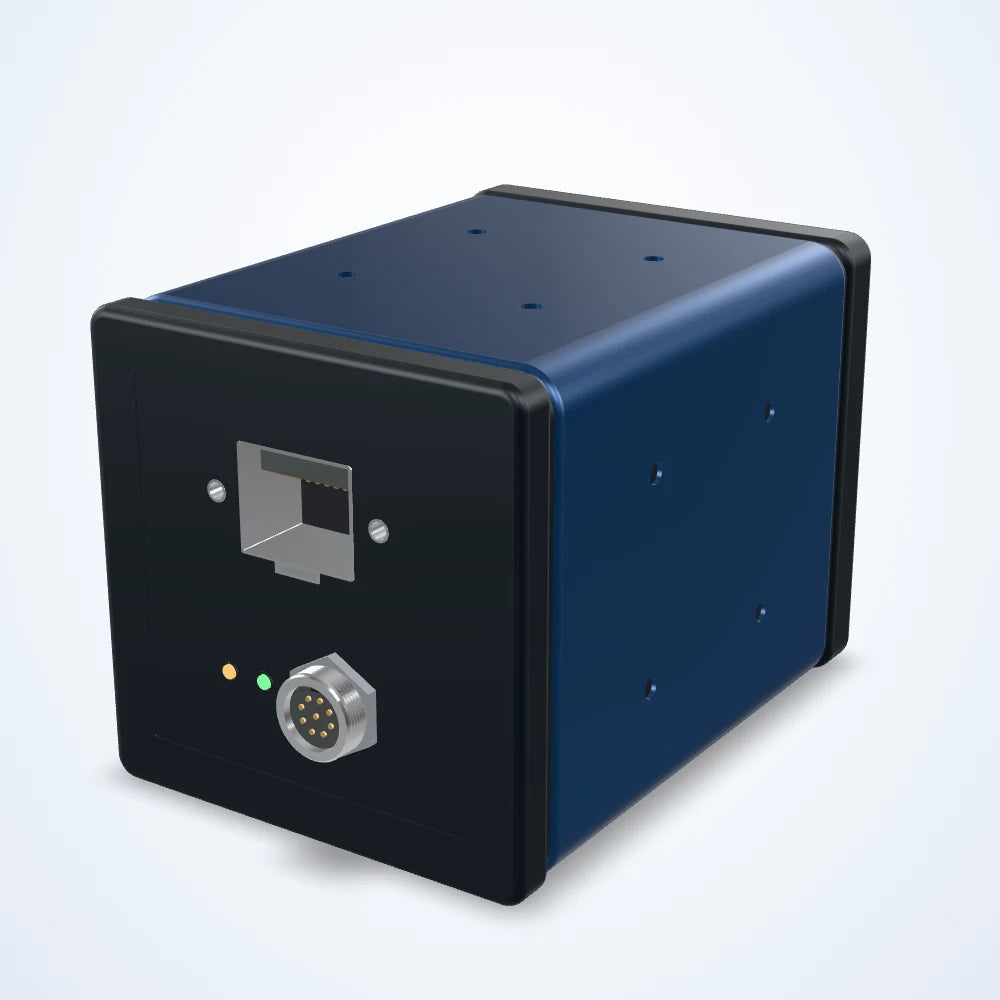

Rendered illustration: the actual product may differ in appearance.

Line scan cameras

4K GigE line scan camera, 12 μm, 28 kHz, M42 (LS-LCM-0021)

Model LS-LCM-0021

  • Resolution4096 x 2
  • SensorGpixel
  • InterfaceGigE
  • Speed28 kHz
  • Lens mountM42
  • Pixel size12 bit
$990.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

4K GigE line scan camera, 12 μm, 28 kHz, M42 (LS-LCM-0021)LS-LCM-0021

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan camera for continuous web, roll and conveyor inspection. 4096 x 2 pixels of 12 μm; line rate up to 28 kHz; GigE interface; M42 lens mount; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LCM-0021

Sensor and imaging

Resolution4096 x 2
Max. line rate28 kHz
Sensor typeGpixel
Pixel size12 bit
Pixel bit depth8 us~100 ms
Dynamic range66 dB
Sensor makeGpixel
SNR40.0 dB
Exposure time10 μs~100 ms

Interfaces and I/O

Data interfaceGigE
Digital I/O12-pin Hirose connector provides power and I/O;2 differential inputs, 2 single-ended inputs,1 differential output , 1 GPIO

Environment and compliance

Operating temperature-30- 50°C(Operating), -30- 80°C(Storage)
CertificationGigE Vision / GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyDC12 V~24 V
Power consumption12 V @ ≈4.5 W

Mechanical

Lens mountM42

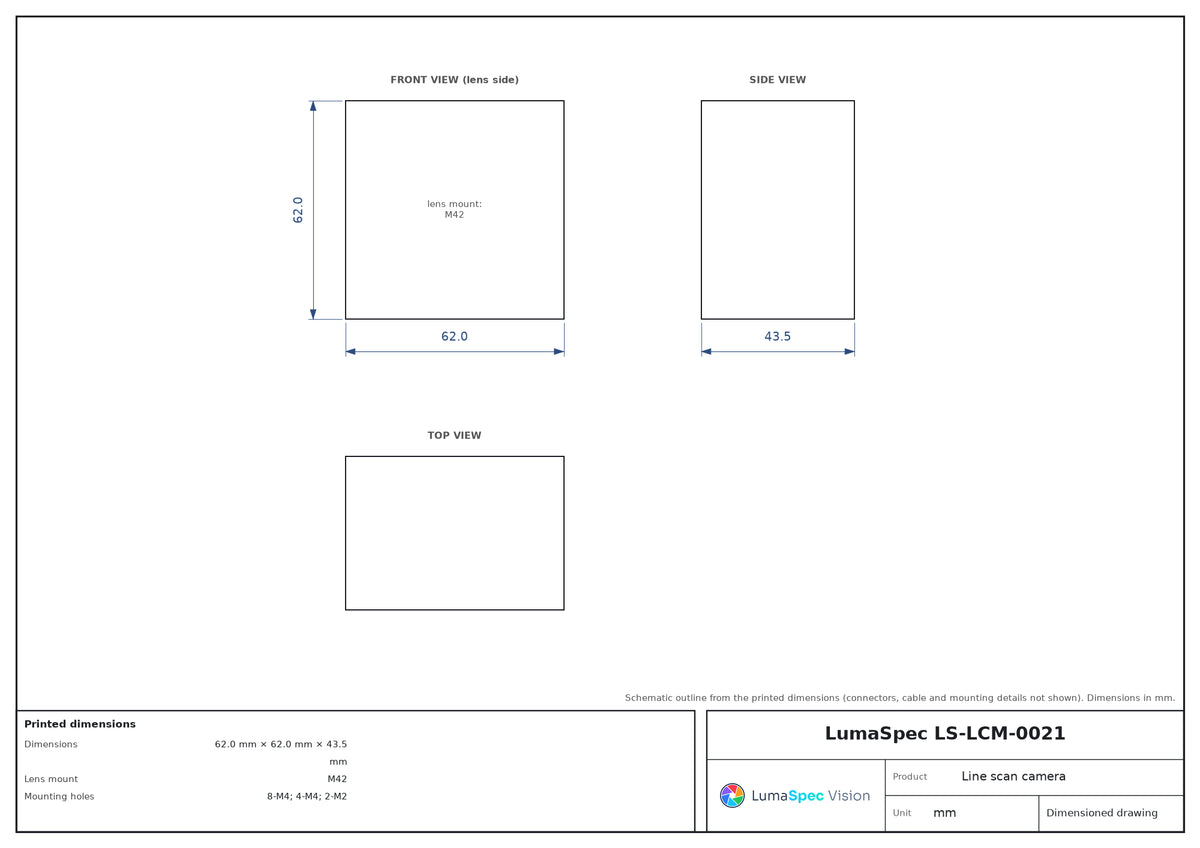

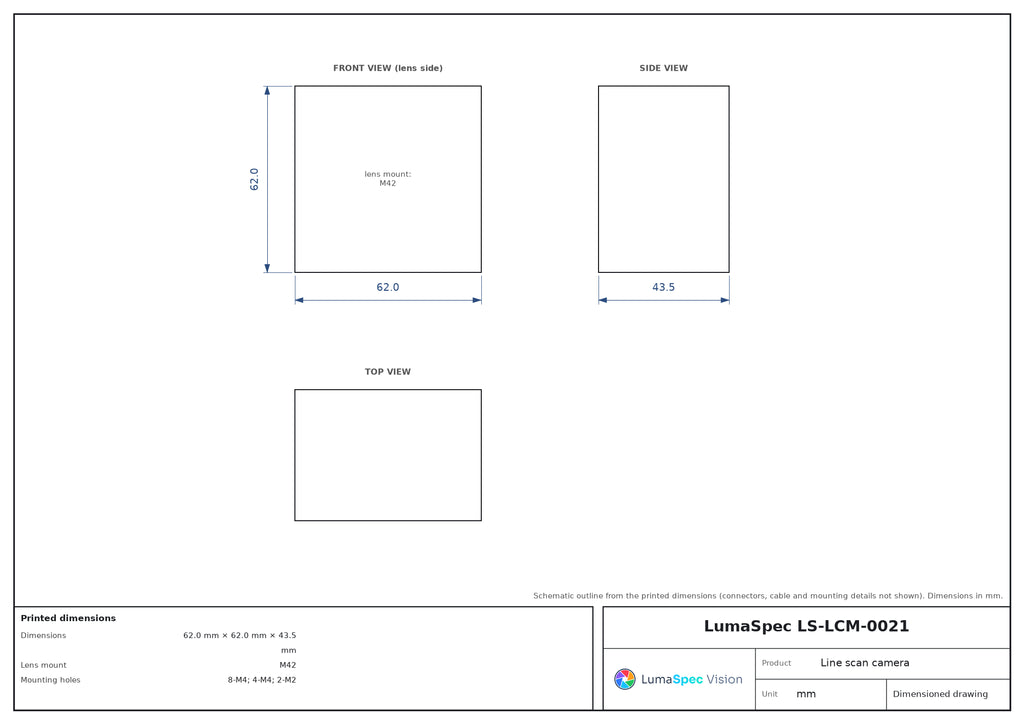

Dimensions62.0 mm × 62.0 mm × 43.5 mm
Weight260g
Mounting holes8-M4; 4-M4; 2-M2
