  • 2K GigE line scan camera, 14 μm, 49 kHz, M42

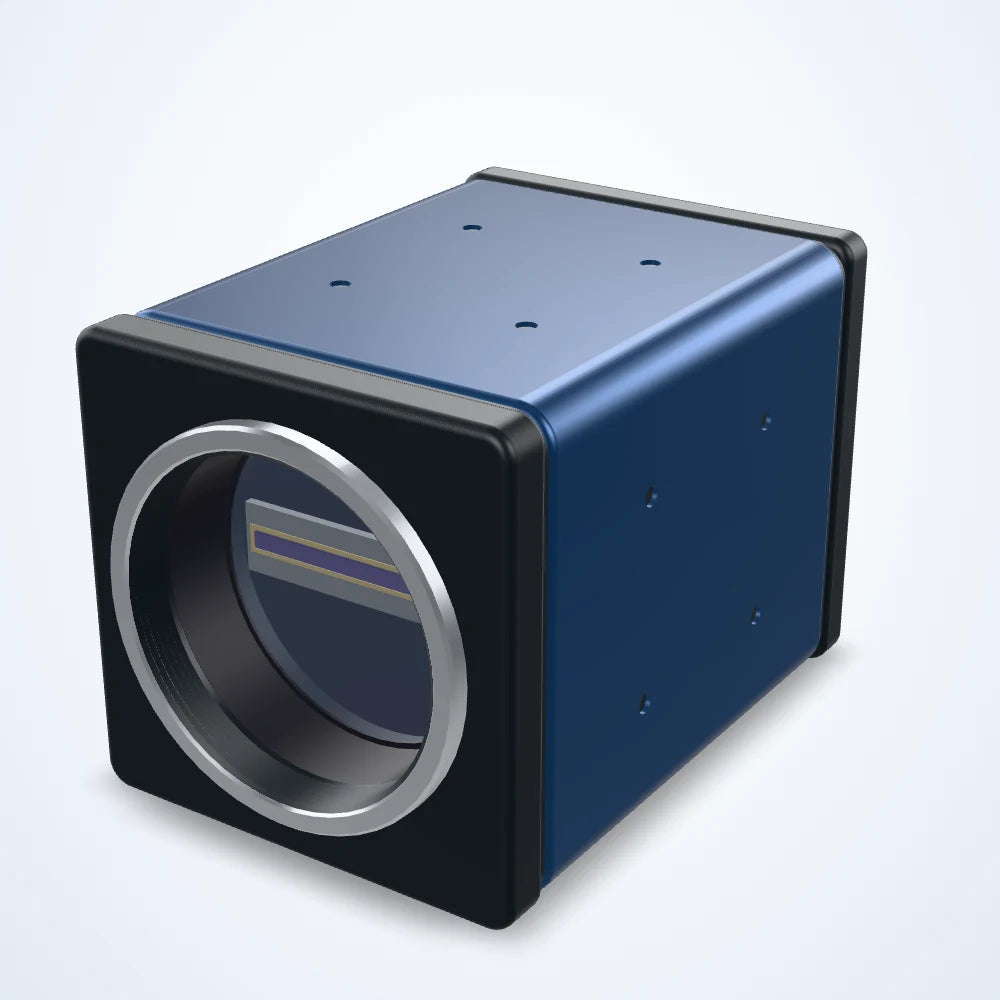

Rendered illustration: the actual product may differ in appearance.

Line scan cameras

2K GigE line scan camera, 14 μm, 49 kHz, M42 (LS-LCM-0013)

Model LS-LCM-0013

  • Resolution2048 × 1
  • SensorCMOS
  • InterfaceGigE
  • Speed49
  • Lens mountM42
  • Pixel size14 × 14
$975.00

Ships in 3-4 weeks

2.0 kg shipping weight

OptionMono

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2K GigE line scan camera, 14 μm, 49 kHz, M42 (LS-LCM-0013)LS-LCM-0013

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Line scan camera for continuous web, roll and conveyor inspection. 2048 x 1 pixels of 14 μm; line rate up to 49 kHz; GigE interface; M42 lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LCM-0013

Sensor and imaging

Resolution2048 × 1
Pixel size14 × 14
Max. line rate49
Pixel bit depth12 bit
Sensor makeGpixel
Sensor typeCMOS
Pixel formatMono8/10/12/10Packed/12Packed
SNR40.0 dB
Dynamic range66.0 dB
Exposure time10 μs~100 ms

Interfaces and I/O

Data interfaceGigE

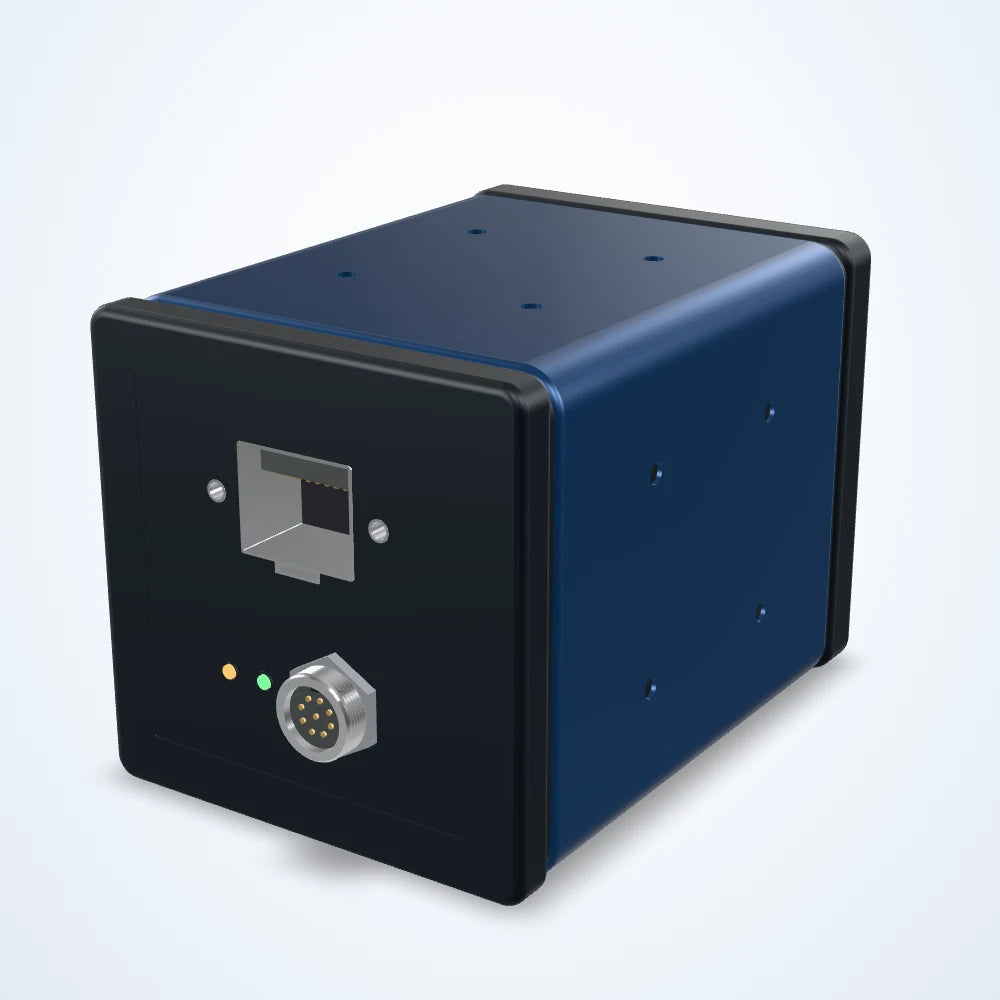

Digital I/O12-pin Hirose connector provides power and I/O;2 differential inputs, 2 single-ended inputs,1 differential output , 1 GPIO

Environment and compliance

Operating temperature-30- 50°C(Operating), -30- 80°C(Storage)
CertificationGigE Vision / GenICam

Computing

Operating systemWindows, Linux

Electrical

Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supplyDC12 V~24 V
Power consumption12 V @ ≈4.5 W

Mechanical

Lens mountM42*1

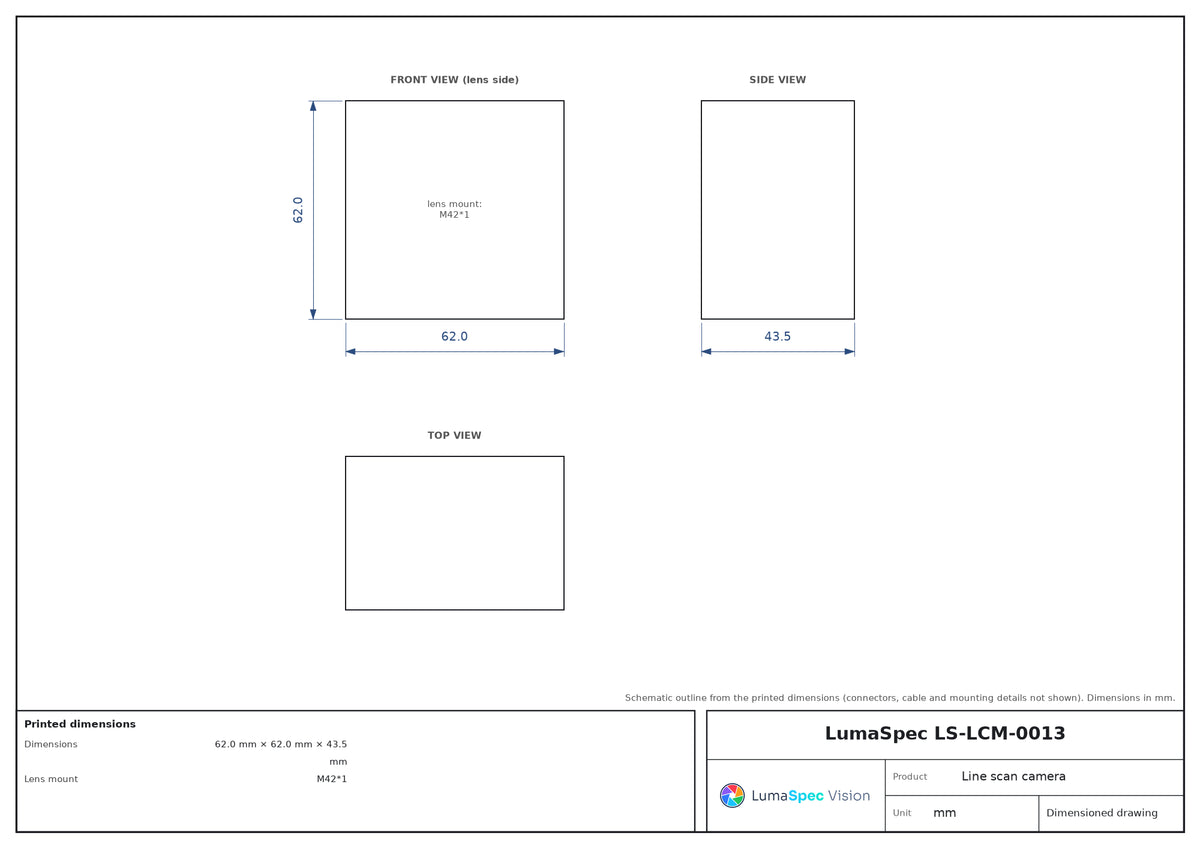

Dimensions62.0 mm × 62.0 mm × 43.5 mm
Weight260g
Mounting holes8-M4.00; 4-M4.00
