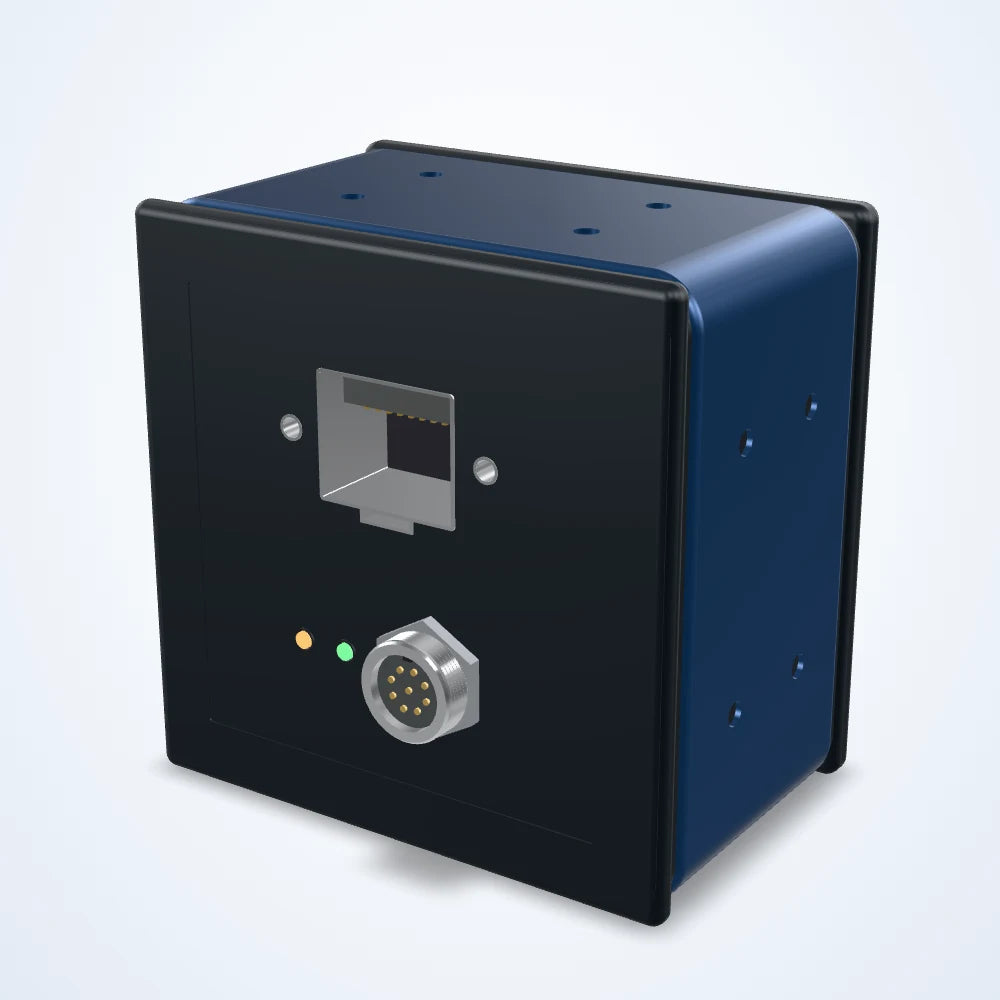

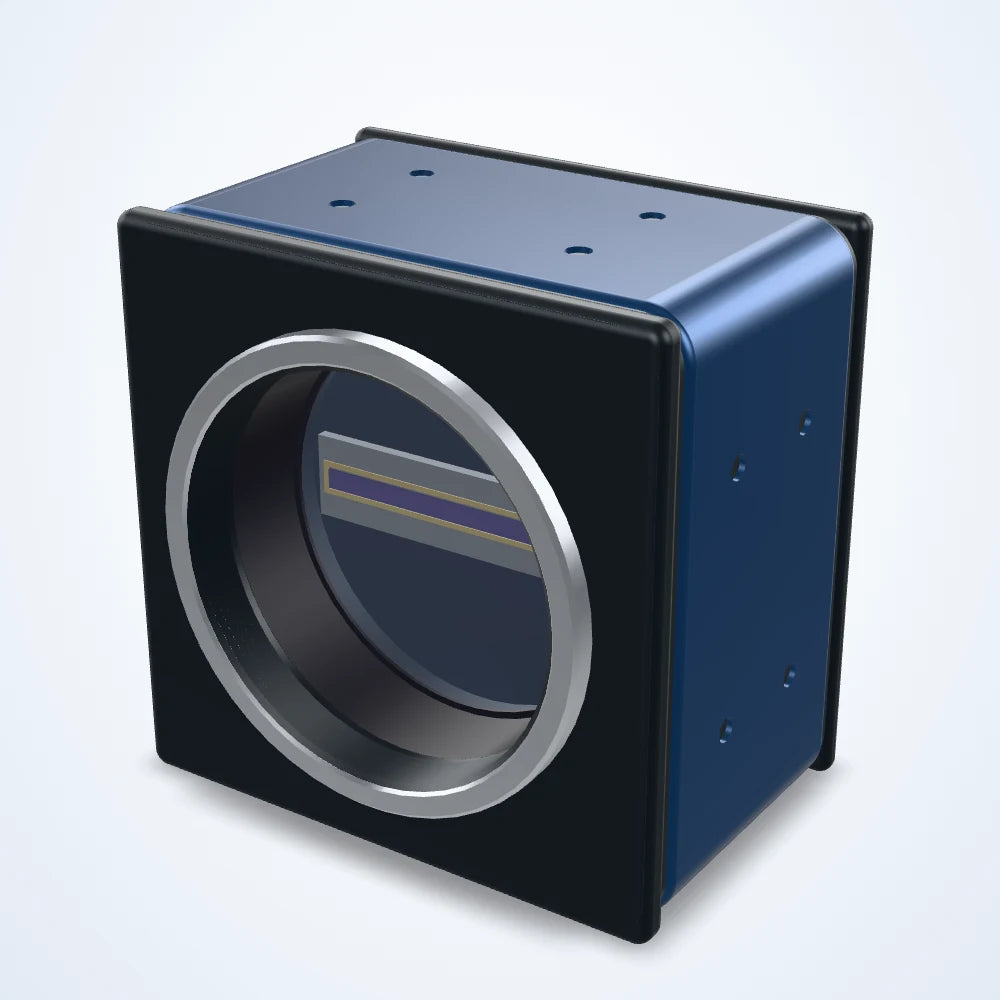

Rendered illustration: the actual product may differ in appearance.
Line scan cameras
2K GigE line scan camera, 14 μm, 19 kHz, M42, 2048x2 GigE (LS-LCM-0011)
Model LS-LCM-0011
- Resolution2048 × 2
- SensorCMOS
- InterfaceGigE
- Lens mountM42
- Pixel size14 × 14
$950.00
Ships in 3-4 weeks
0.51 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Line scan camera for continuous web, roll and conveyor inspection. CMOS sensor; 2048 x 2 pixels of 14 μm; line rate up to 19 kHz; GigE interface; M42 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LCM-0011 |
|---|
Sensor and imaging
| Resolution | 2048 × 2 |
|---|---|
| Sensor type | CMOS |
| Pixel size | 14 × 14 |
| Max. line rate | 19 kHz; HB: 40 kHz@RGB 8/BGR 8 |
| Pixel bit depth | 8 bit / 10 bit / 12 bit |
| Exposure time | 5 μs~10 ms |
| Dynamic range | >63 dB |
| Pixel format | Mono 8/10/12,Bayer RG 8/10/12,RGB 8,BGR 8 |
| SNR | 63.4 dB |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 12-pin Hirose connector provides I/O:Configurable output and input × 4,supports single-end/differential |
Environment and compliance
| Operating temperature | -30~80 °C (Storage), -20~56°C (Working) |
|---|---|
| Certification | GigE Vision,GenICam |
Computing
| Operating system | Windows,Linux |
|---|
Electrical
| Trigger mode | Via hardware trigger, software trigger or free run mode |
|---|---|
| Power supply | DC 12-24 V, Supporting PoE |
| Power consumption | 12 V @<7.38 W |
Mechanical

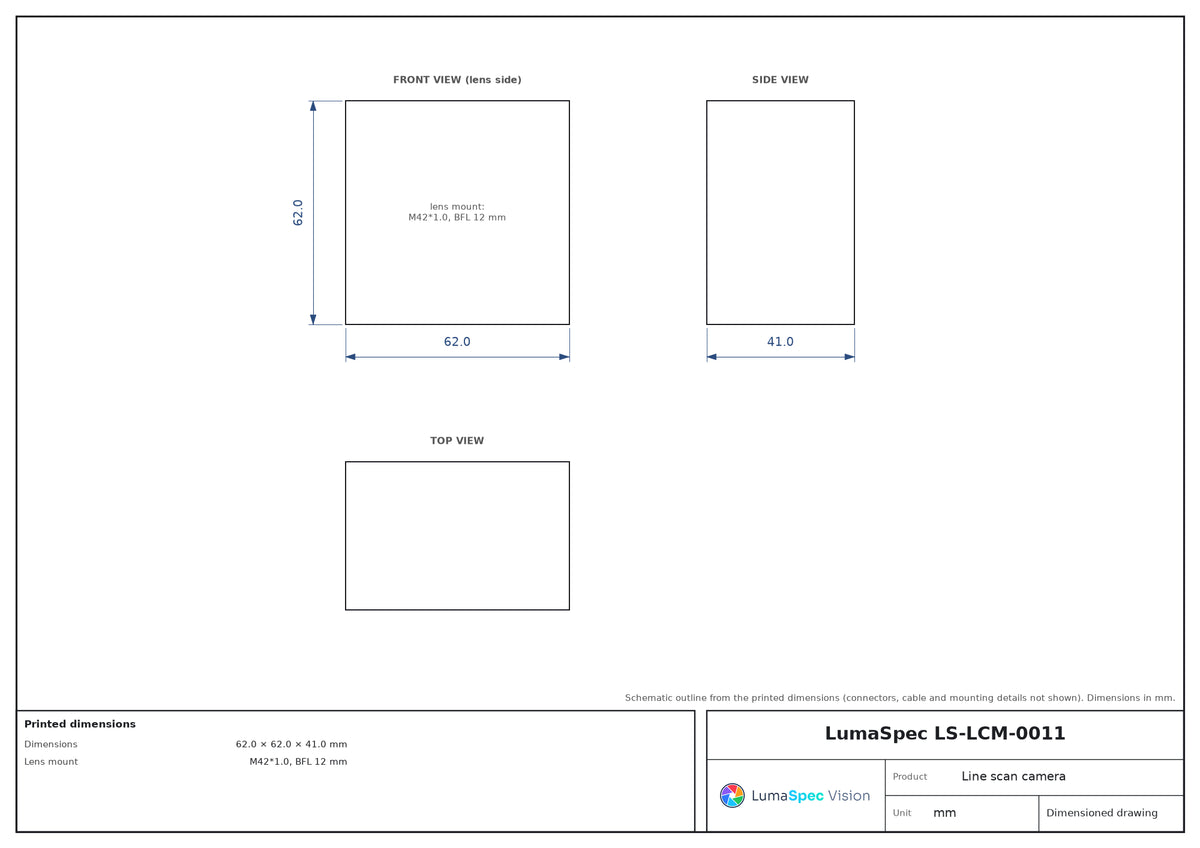

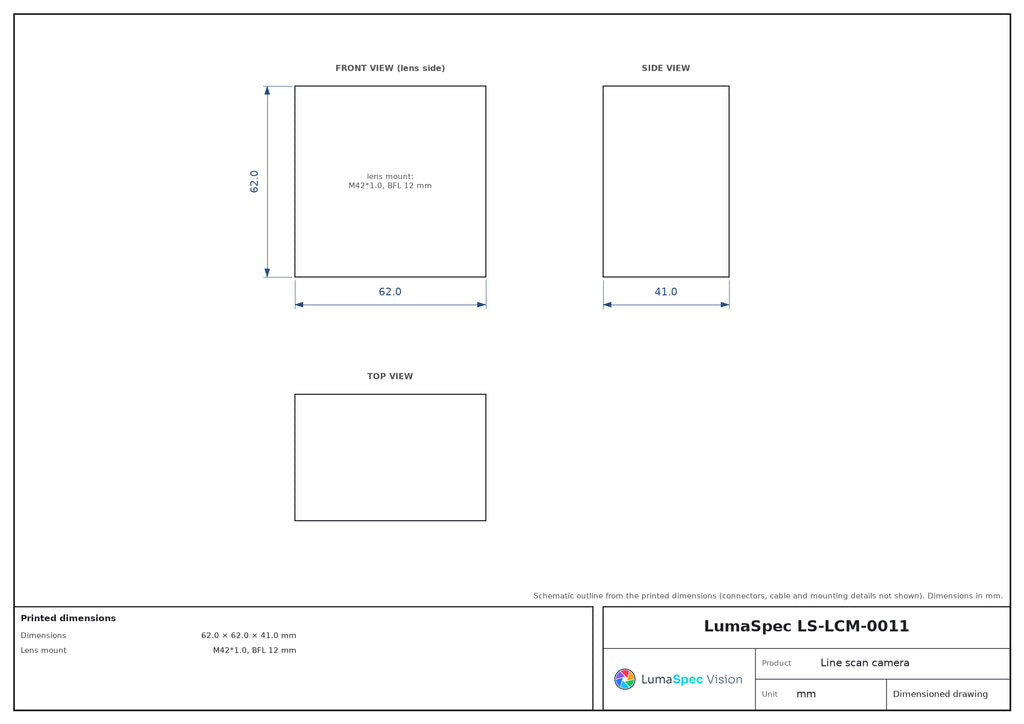

| Dimensions | 62.0 × 62.0 × 41.0 mm (280g) |
|---|---|
| Lens mount | M42*1.0, BFL 12 mm |
| Weight | 280g |
| Mounting holes | 4-M4X4; 8-M4; 2-M2 |
