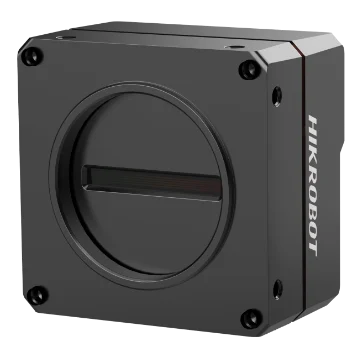

CL Series GigE Line Scan Cameras

Line scan cameras

CL Series GigE Line Scan Cameras

  • 19 models
  • from $639.00
  • Series HIK-CL-GIGE

The CL Series GigE Line Scan Cameras is a range of 19 line scan cameras from Hikrobot, from $639.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 19 models Series datasheet (PDF)

The series at a glance

Sizes / versions
GigE, Mono, 2K, GigE, Color, 2K, GigE, Mono, 4K, 2.5GigE, Color, 4K, 2.5GigE, Mono, 4K, GigE, Color, 4K, GigE, Mono, 8K, 2.5GigE, Color, 8K, 2.5GigE, Mono, 8K, GigE, Color, 8K, GigE, Mono
Interface
2.5GigE, GigE
Line length
2K, 4K, 8K
Colour
Color, Mono
Pixel size
7 μm, 14 μm
Image circle
14 mm, 29 mm, 57 mm
Lens mount
M42, M72

Features

  • Single-line and TDI imaging
  • Rich ISP processing, including Gamma correction, flat-field correction, gain adjustment and more
  • Bidirectional I/O wiring: inputs and outputs can be assigned flexibly
  • Compact design with mounting holes on front and side panels for flexible installation
  • Compatible with GigE Vision V2.0 and the GenICam standard
  • Supports TDI and image high-bandwidth function.
  • Supports Gamma correction, FFC correction, LUT, black level, etc.
  • Adopts bi-directional I/O and flexible configuration for input/output signals.

All 19 models in the CL Series GigE Line Scan Cameras

Link
XAL024-4KGMGigE, Mono4096 × 37 μm × 7 μmMono$639.00View
MV-CL024-91GM2K, GigE, Mono2048 × 27 μm × 7 μmMono$1,209.00View
MV-CL024-91GC2K, GigE, Color2048 × 37 μm × 7 μmColor$1,209.00View
MV-CL042-91GM-PL4K, GigE, Mono4096 × 27 μmMono$1,329.00View
MV-CL042-91GC-PL4K, GigE, Color4096 × 27 μmColor$1,329.00View
MV-CL022-91GM2K, GigE, Mono2048 × 114 μm × 14 μmMono$1,459.00View
MV-CL022-91GC2K, GigE, Color2048 × 214 μm × 14 μmColor$1,459.00View
MV-CL042-91GM4K, GigE, Mono4096 × 27 μm × 7 μmMono$1,459.00View
MV-CL042-91GC4K, GigE, Color4096 × 27 μm × 7 μmColor$1,459.00View
MV-CL042-91GC-V24K, GigE, Color4096 × 27 μmColor$1,459.00View
MV-CL042-91GM-V24K, GigE, Mono4096 × 27 μmMono$1,459.00View
MV-CL043-A1GM-V24K, GigE, Mono4096 × 37 μm × 7 μmMono$1,499.00View
MV-CL043-A1GC4K, GigE, Color4096 × 37 μm × 7 μmColor$1,499.00View
MV-CL082-92GM(V2.0)8K, GigE, Mono8192 × 27 μm × 7 μmMono$1,499.00View
MV-CL083-92GC(V2.0)8K, GigE, Color8192 × 37 μm × 7 μmColor$1,499.00View
MV-CL044-91NM4K, 2.5GigE, Mono4096 × 47 μm × 7 μmMono$1,919.00View
MV-CL044-91NC4K, 2.5GigE, Color4096 ×37 μm × 7 μmColor$1,919.00View
MV-CL084-B1NM8K, 2.5GigE, Mono8192 × 47 μm × 7 μmMono$2,679.00quoteView
MV-CL084-B1NC8K, 2.5GigE, Color8192 ×37 μm × 7 μmColor$2,679.00quoteView
